How to remove driver seat cushion?


  • Please log in to reply
13 replies to this topic

#1 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 11 July 2018 - 01:28 PM

Can someone tell me how to remove the driver seat cushion of a 2009 Edge without damaging it?

I need to grease the power seat hardware.

Thanks,

Ed


  • CARR142 likes this







Lose this advertisement by becoming a member. Click here to create a free account.


#2 OFFLINE   enigma-2

enigma-2

    Ford Edge Fanatic

  • Edge Member
  • 3,338 posts
  • Region:U.S. Great Lakes
  • Location:Indiana
  • Edge's Year:2009

Posted 11 July 2018 - 04:42 PM

Seat Cushion — Front

Removal

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

° Remove the front seat. For additional information, refer to Seat — Front in this section.
° Release all wire harness and connector retainers to the cushion frame.
° For seat with fold-flat backrest, separate the fold-flat recliner cable holders from the bottom of the cushion frame.
° If equipped, disconnect the cushion Thermo-Electric Device (TED) electrical connector.
° If equipped, disconnect the heated seat module and 2 heater mat electrical connectors.
° Separate the pin-type retainers from the cushion frame.
° Remove the 4 cushion frame-to-seat track bolts and cushion assembly.

Installation

For seat with fold-flat backrest, make sure the fold-flat recliner cable is routed correctly between the power seat track cross tube and cushion frame.

-----------------------

Position the cushion assembly and install the 4 cushion frame-to-seat track bolts.
For power seat track, make sure the cushion frame-to-seat track rear brackets are aligned correctly with the tabs seated in the cushion frame.
Tighten to 23 Nm (17 lb-ft).
For correct front passenger seat cushion wire harness routing, refer to Seat Wire Harness Routing — Front Passenger Cushion in this section.
For seat with fold-flat backrest, attach the 2 fold-flat recliner cable holders to the bottom of the cushion frame.
Connect the heated seat module 2 heater mat electrical connectors.
Route the wiring harnesses and attach the pin-type retainers to the cushion frame.
If equipped, connect the cushion TED electrical connector.
Attach any remaining wire harness and connector retainers to the cushion frame.

----------------

All seats

° Remove the front seat cushion. (above) For additional information, refer to Seat Cushion — Front in this section.
° Release the cushion trim cover retainers from the cushion frame and remove the cushion trim cover and cushion foam pad.

NOTICE: Use care when separating the cushion trim cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the cushion foam pad.

NOTE: A new heater mat will come assembled on a new foam pad.

° Remove the cushion trim cover from the cushion foam pad in the following sequence.
° Separate the hook-and-loop strips.
° Separate the cushion trim cover wire retainer from the clips in the cushion foam pad.
° For vehicles with climate controlled seat, on assembly make sure the climate control seat manifold is in place before snapping the cushion trim cover wire retainer back into the cushion foam pad.

Install the front seat. For additional information, refer to Seat — Front in this section.

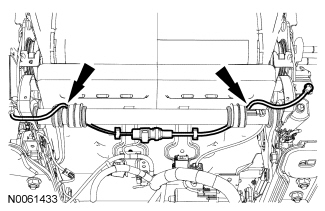

Attached File  Seat cable routing.jpg   39.89KB   0 downloads

° Position the cushion assembly and install the 4 cushion frame-to-seat track bolts.
° For power seat track, make sure the cushion frame-to-seat track rear brackets are aligned correctly with the tabs seated in the cushion frame.
° Tighten to 23 Nm (17 lb-ft).
° For correct front passenger seat cushion wire harness routing, refer to Seat Wire Harness Routing — Front Passenger Cushion in this section.
° For seat with fold-flat backrest, attach the 2 fold-flat recliner cable holders to the bottom of the cushion frame.
° Connect the heated seat module 2 heater mat electrical connectors.
° Route the wiring harnesses and attach the pin-type retainers to the cushion frame.
° If equipped, connect the cushion TED electrical connector.
° Attach any remaining wire harness and connector retainers to the cushion frame.
° Install the front seat. For additional information, refer to Seat — Front in this section.



-----------------------------------------------



° Remove the front seat cushion. {above} For additional information, refer to Seat Cushion — Front in this section.

° Release the cushion trim cover retainers from the cushion frame and remove the cushion trim cover and cushion foam pad.

° NOTICE: Use care when separating the cushion trim cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the cushion foam pad.

NOTE: A new heater mat will come assembled on a new foam pad.

° Remove the cushion trim cover from the cushion foam pad in the following sequence.
° Separate the hook-and-loop strips.
° Separate the cushion trim cover wire retainer from the clips in the cushion foam pad.
° For vehicles with climate controlled seat, on assembly make sure the climate control seat manifold is in place before snapping the cushion trim cover wire retainer back into the cushion foam pad.

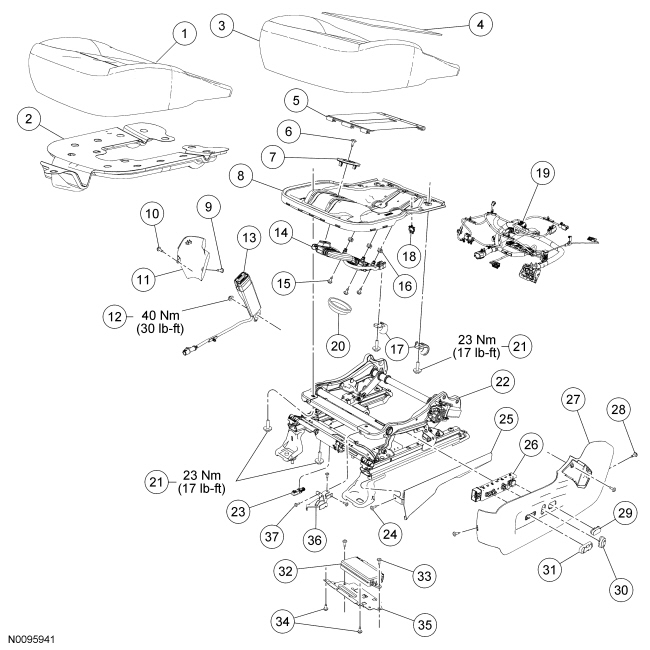

Attached File  Drivers seat.jpg   130.76KB   0 downloads

Item Part Number  Description
1      62901      Cushion trim cover
2      18D507     Cushion climate control seat manifold (**)
3      632A23     Cushion foam pad
4         —       Cushion heater mat (part of 632A23)
5      63226      Cushion support
6      W505945    Cushion Thermo-Electric Device (TED)-to-climate control seat cushion adapter screw (**)
7      18D507     Cushion TED adapter (**)
8      63100      Cushion frame
9      62294      Recliner side shield screw
10     W714053    Scrivet
11     62187      Recliner side shield
12       —        Safety belt buckle-to-seat track nut (part of 61203)
13     61203      Safety belt buckle
14     18D507     Cushion TED (if equipped)
15     W505945    Cushion TED -to-cushion frame screw (3 required) (**)
16        —       Screw grommet (3 required)
17     60328      Cushion frame-to-seat track rear brackets
18     14A163     Wire clip
19     14A699     Driver seat wire harness
20     19E880     Cushion TED filter (if equipped)
21     W506021    Seat track-to-cushion frame bolts (4 required)
22     61711      Power seat track assembly
23     14B416     Seat position sensor (driver only)
24     62294      Seat track cover retainer
25     62187      Seat track cover
26     14A701     Seat control switch
27     62187      Cushion side shield
28     62294      Cushion side shield retainer (3 required)
29     14711      Power lumbar switch knob (**)
30     14711      Power seat recliner knob
31     14711      Seat control switch knob
32     14C708     Driver Seat Module (DSM) (**)
33     62294      DSM -to-bracket screw (2 required) (**)
34     62294      Bracket-to-seat track screws (**)
35     14A301     DSM bracket (**)
36     14A301     Shield bracket
37     62294      Shield bracket screws
(**) = (if equipped)


Edited by enigma-2, 11 July 2018 - 04:55 PM.

  • WWWPerfA_ZN0W and omar302 like this

#3 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 11 July 2018 - 07:57 PM

Holy Moly,

Looks like this is not a diy job.

Thanks anyway.

Ed



#4 OFFLINE   enigma-2

enigma-2

    Ford Edge Fanatic

  • Edge Member
  • 3,338 posts
  • Region:U.S. Great Lakes
  • Location:Indiana
  • Edge's Year:2009

Posted 11 July 2018 - 08:03 PM

I used WD40 dry lube and sorated the hell out of everything I could see. Getting under the seat to spray the inside rail is a pain.
  • WWWPerfA_ZN0W likes this

#5 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 16 July 2018 - 12:24 PM

So, you just sprayed from the under site without removing the seat cushion?

Doesn't that stuff drip all over the carpet for days and smell awful?



#6 OFFLINE   enigma-2

enigma-2

    Ford Edge Fanatic

  • Edge Member
  • 3,338 posts
  • Region:U.S. Great Lakes
  • Location:Indiana
  • Edge's Year:2009

Posted 16 July 2018 - 01:16 PM

WD40 dry lube is different than WD40.

(I just sprayed the tracks as best I could.)



#7 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 16 July 2018 - 01:22 PM

OK, didn't know about the dry lube stuff.

Sounds like the way to go.

Thanks a lot.

Ed



#8 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 17 July 2018 - 11:00 AM

What about spraying the connectors inadvertently?

Would that screw up the electrics under the seat?



#9 OFFLINE   enigma-2

enigma-2

    Ford Edge Fanatic

  • Edge Member
  • 3,338 posts
  • Region:U.S. Great Lakes
  • Location:Indiana
  • Edge's Year:2009

Posted 17 July 2018 - 01:06 PM

OK, didn't know about the dry lube stuff.
Sounds like the way to go.
Thanks a lot.
Ed


This is what I used:
WD-40 Specialist Dirt & Dust Resistant Dry Lube PTFE Spray with SMART STRAW SPRAYS 2 WAYS, 10 OZ https://www.amazon.c...a_T.ItBbAJHKTH7

#10 OFFLINE   enigma-2

enigma-2

    Ford Edge Fanatic

  • Edge Member
  • 3,338 posts
  • Region:U.S. Great Lakes
  • Location:Indiana
  • Edge's Year:2009

Posted 17 July 2018 - 01:08 PM

What about spraying the connectors inadvertently?
Would that screw up the electrics under the seat?


Unlikely imo. The connectors are tight and not subject to moisture intrusion.

I hit the tracks from front and rear, sprayed as much as I could reach.

#11 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 17 July 2018 - 01:21 PM

OK, I'll check at my local ACE hardware store.

Thanks again.



#12 OFFLINE   enigma-2

enigma-2

    Ford Edge Fanatic

  • Edge Member
  • 3,338 posts
  • Region:U.S. Great Lakes
  • Location:Indiana
  • Edge's Year:2009

Posted 17 July 2018 - 02:34 PM

FYI, I also use this on my BAMR as well. Stray makes it easy to get through the rubbers gaskets onto the tracks. Fast too.

#13 OFFLINE   edgemaster

edgemaster

    New Edge Member

  • Edge Member
  • 183 posts
  • Region:U.S. Southern Plains
  • Location:Austin, TX
  • Edge's Year:2009

Posted 17 July 2018 - 02:53 PM

I had to look up BAMR.  :whistling:

Thanks for the tip.



#14 OFFLINE   akirby

akirby

    Ford Edge Legal Resident

  • Moderator
  • 11,117 posts

Posted 17 July 2018 - 03:44 PM

I had to look up BAMR.  :whistling:

Thanks for the tip.



Interesting tidbit - that name came from the Ford engineers themselves while they were working on the first application on the first gen Edge.
