Iroga

Today I received KT4T-19C107-DE. To install, you need to disassemble the center console.For changing the configuration, I used Forscan. Three modules need to be changed. ASM, DSP and DACMC. It’s hard to say right away, but I won’t say that it was immediately WOW..

I felt that the factory braking system was not effective enough. I decided to replace them with Power Stop rotors and pads, with a few modifications. For this purpose, 345mm front rotors were purchased instead of 316mm. POWER STOP AR85173XL and POWER STOP AR85173XR. I left the rear rotors at the same size of 316mm, POWER STOP AR85174XL and POWER STOP AR85174XR. A question arose about the front brake calipers. Since the disk size is different, the caliper bracket is subject to replacement. I could not find one separately. I found calipers from the ST version, which are completely suitable. In addition, their pistons are larger in size.The replacement is not difficult. We remove the old ones and install new ones, change the front calipers. We bleed the brake system by replacing the fluid. The fluid may not need to be changed if it is good, but bleeding is necessary.

ls7t-19c107-xc from Ford Fusion and is designed for the Sony amplifier. Unfortunately, it does not fit the Bang & Olufsen amplifier. I am waiting for the KT4T-19C107-DE to be delivered.

An attempt to make friends with the Fusion ACM ended in failure. System sounds are present, but music is absent.

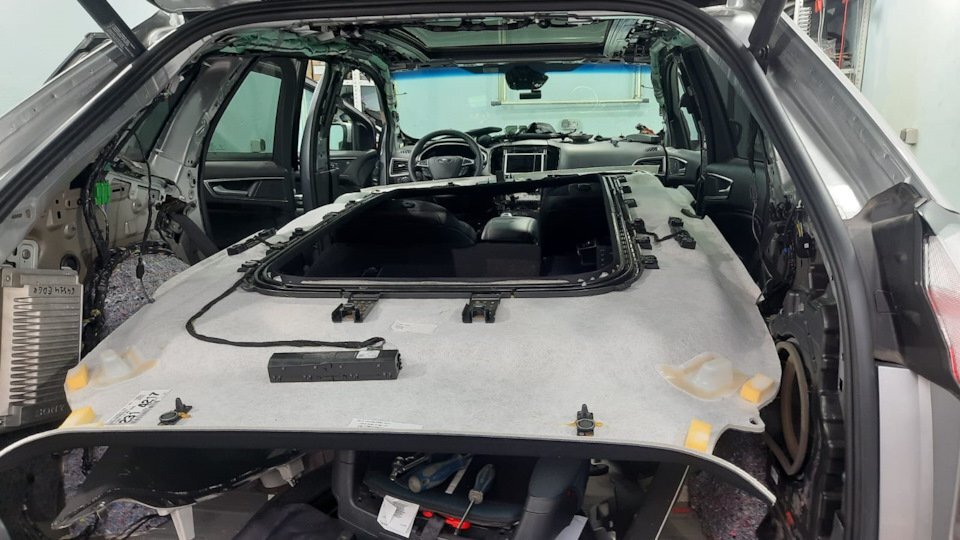

The ceiling is lowered. The ACN microphones are installed.

Help me, please. Installed ACM from Ford Fusion ls7t-19c107-xc, but it refused to work. No sound on radio, no sound on CD, no speakerphone. Maybe the connection diagram is different? Maybe there is a connection diagram for ACM Ford Fusion to compare with Ford Edge?

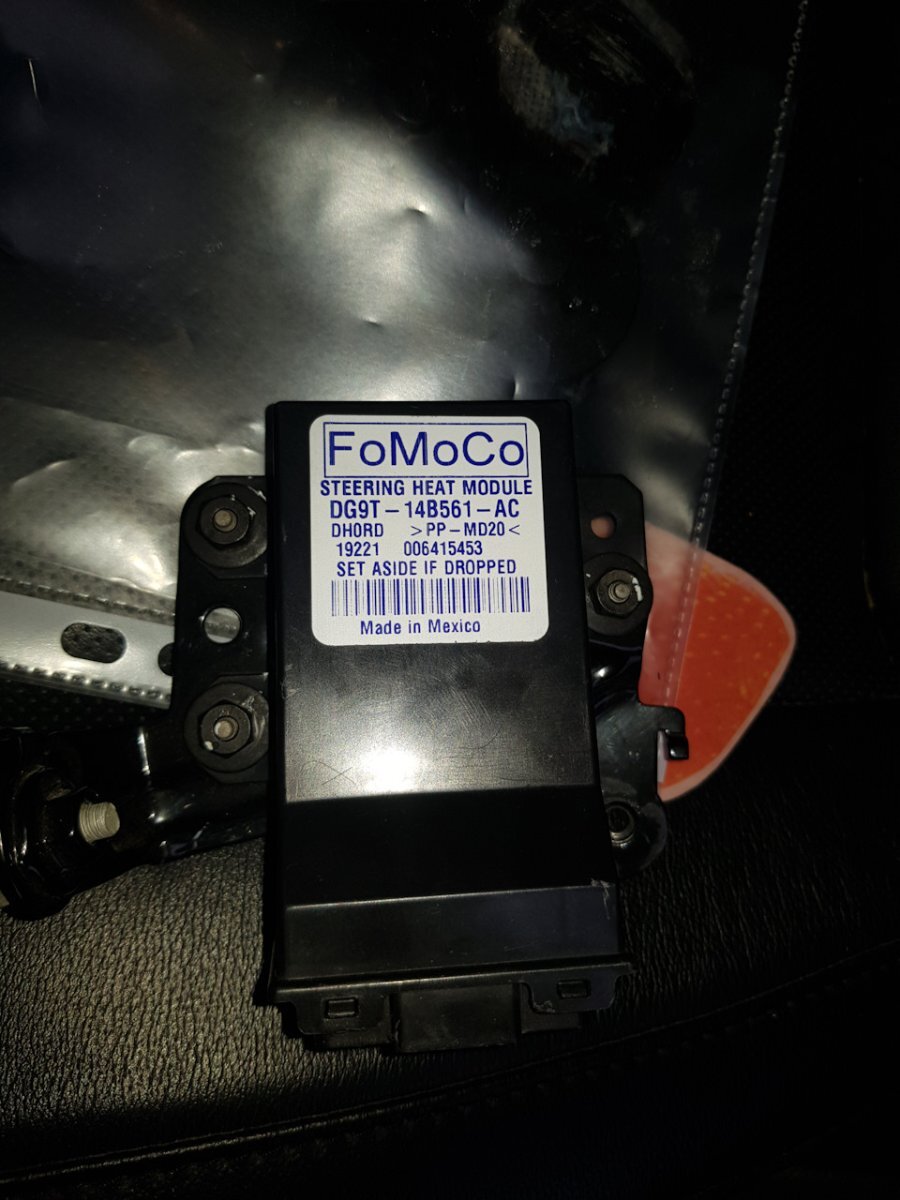

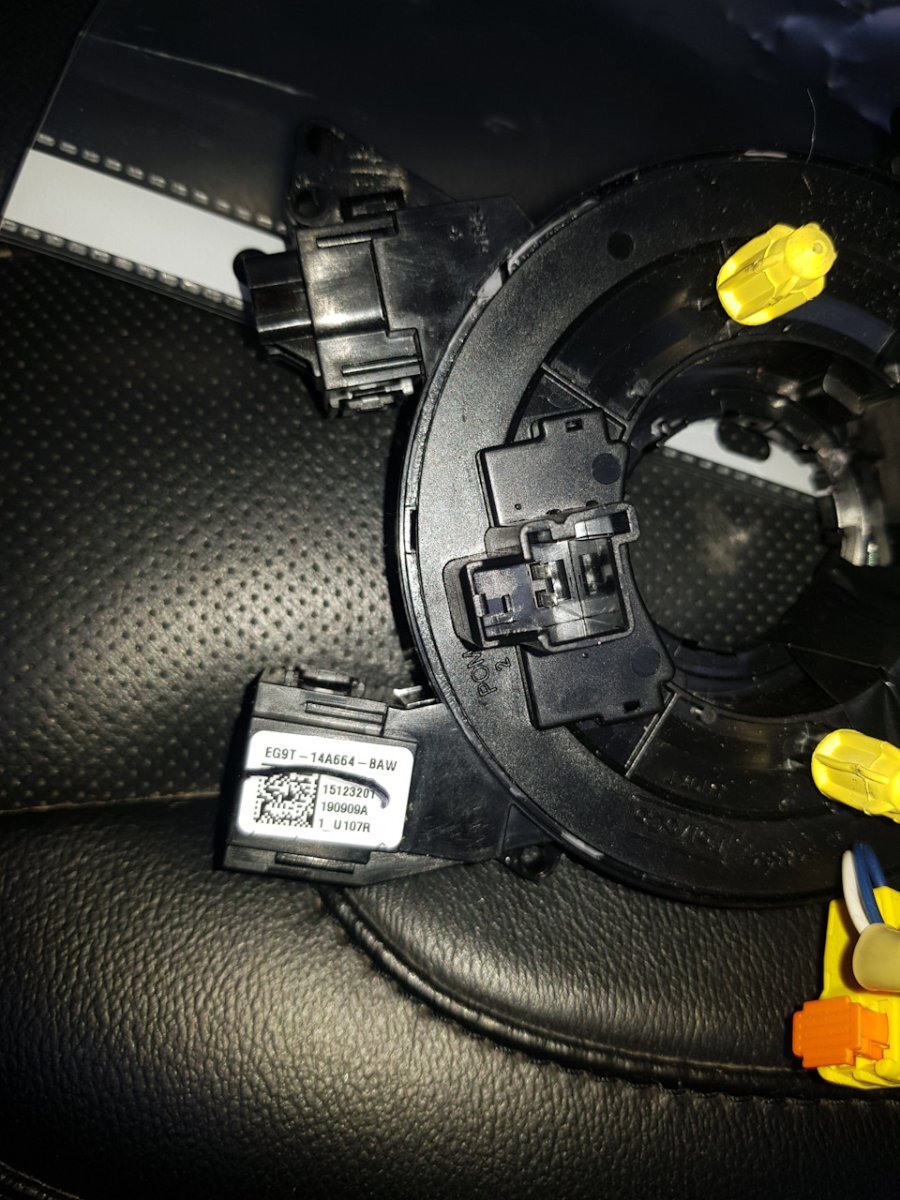

If the steering wheel heating is not included in the package, this can be easily fixed. Buy a kit on the secondary market and install it. The work is not difficult and anyone can do it. Make changes using Forscan to three modules APIM, IPC and FCIM. You can change the heating temperature as desired.

They are not factory-made, of course, but they will fulfill their function.

This is not on my car. This was done recently for a friend. I am assembling the complete set. I still need to braid the wiring. No. The seats were not removed. The rear ones are folded, the front backrests are reclined as far back as possible. Once I do it completely, I will show you and share my impressions.

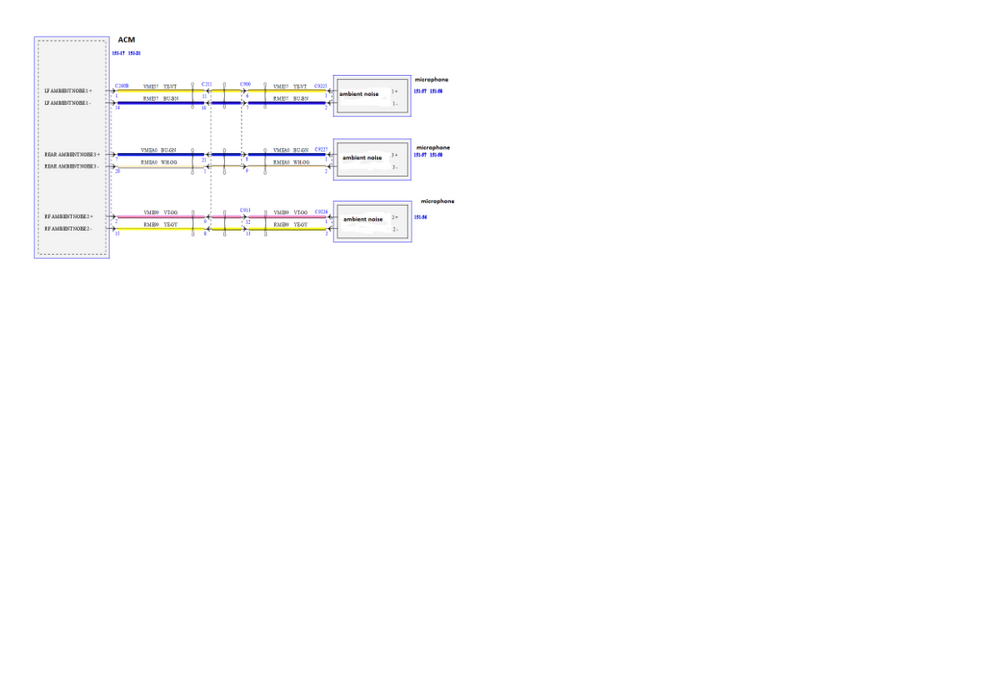

In principle, the work of implementing them is not as difficult as it seems. First, you need to lower the ceiling. Next, the locations for installing the microphones are marked, holes are drilled in the ceiling and the microphones are installed.Next, the wiring from the microphones to the audio module is made and everything is put back together. Of course, you need to edit the configuration later.

I opened this link at work. Tomorrow I'll show you which browser.

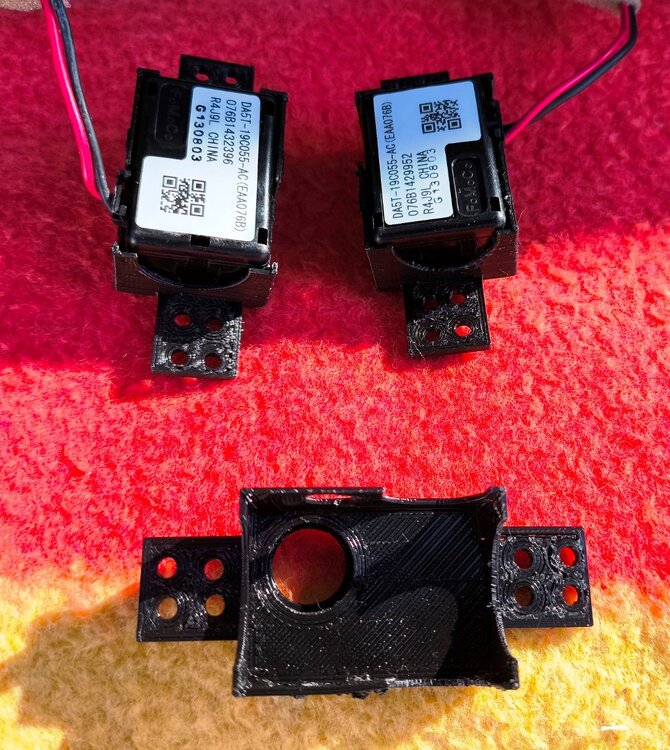

I will definitely tell you how I will do it. Preparations are currently underway.Microphone holders.

I know that. The question is about retrofitting the car with this system.

Which ACMs are equipped with noise reduction function?

It's already warm and I won't be able to check the operation. I'll try to connect another camera later. I'll check the wiring from the camera, of course. If you disconnect the rain sensor, then Forscan sees that it's not there. Can updating the camera firmware help?
