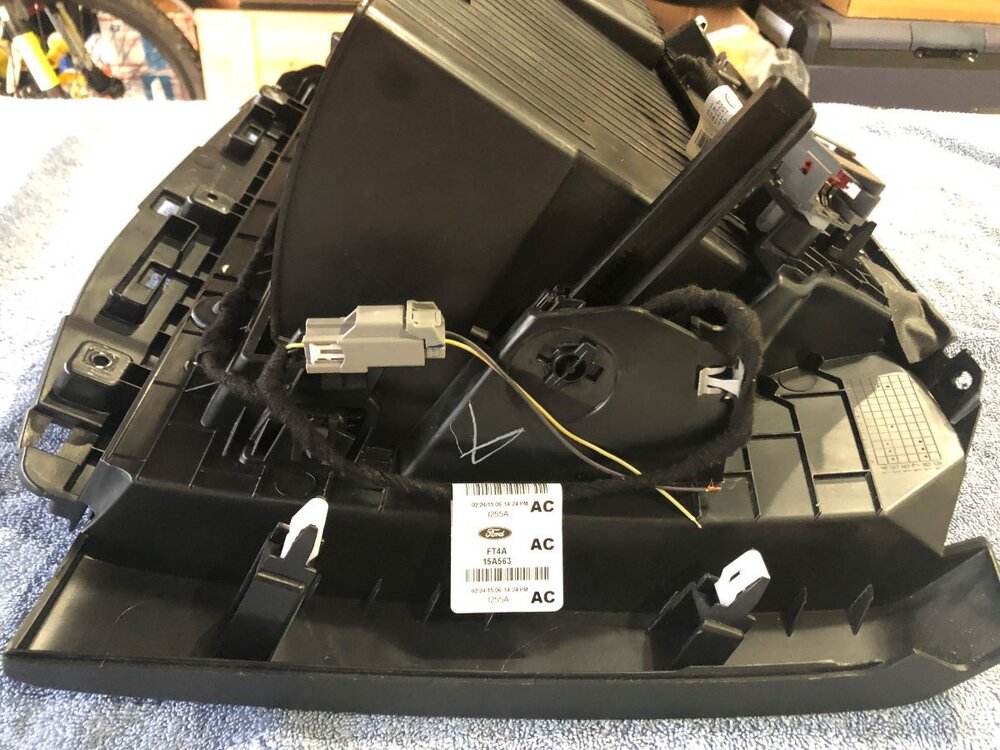

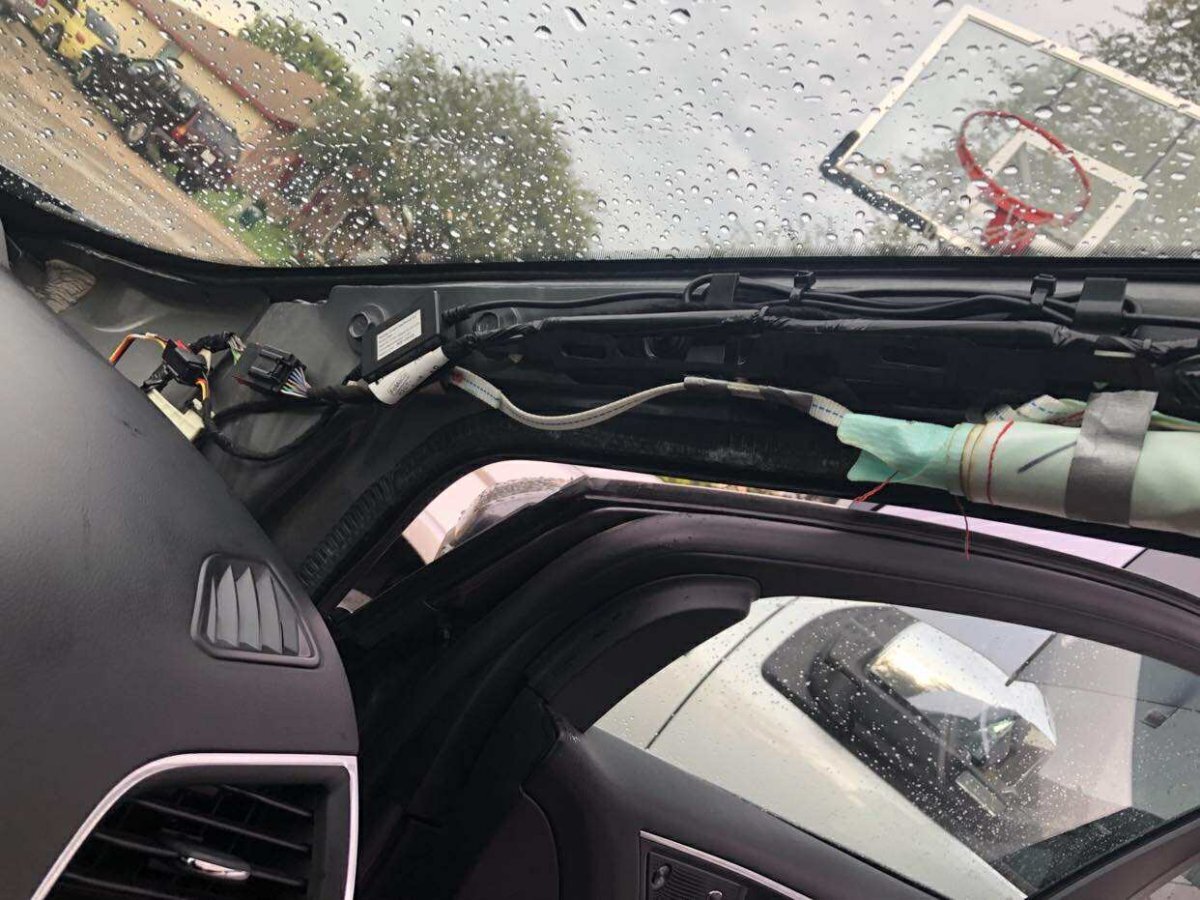

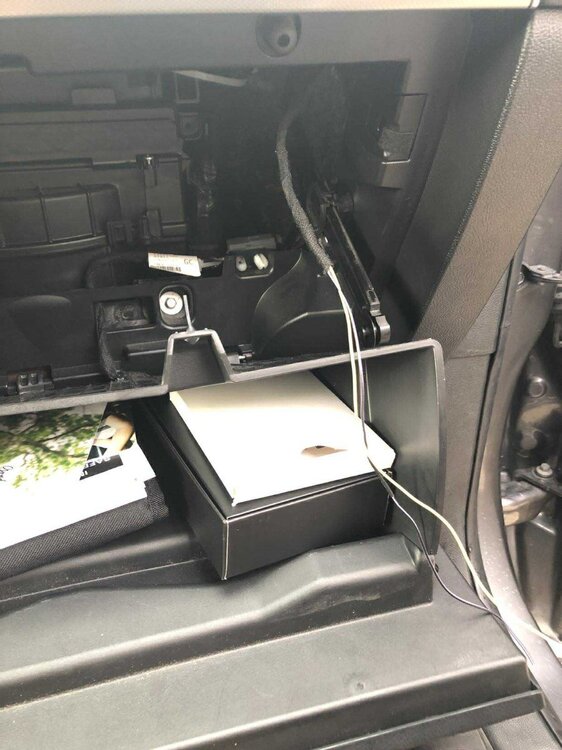

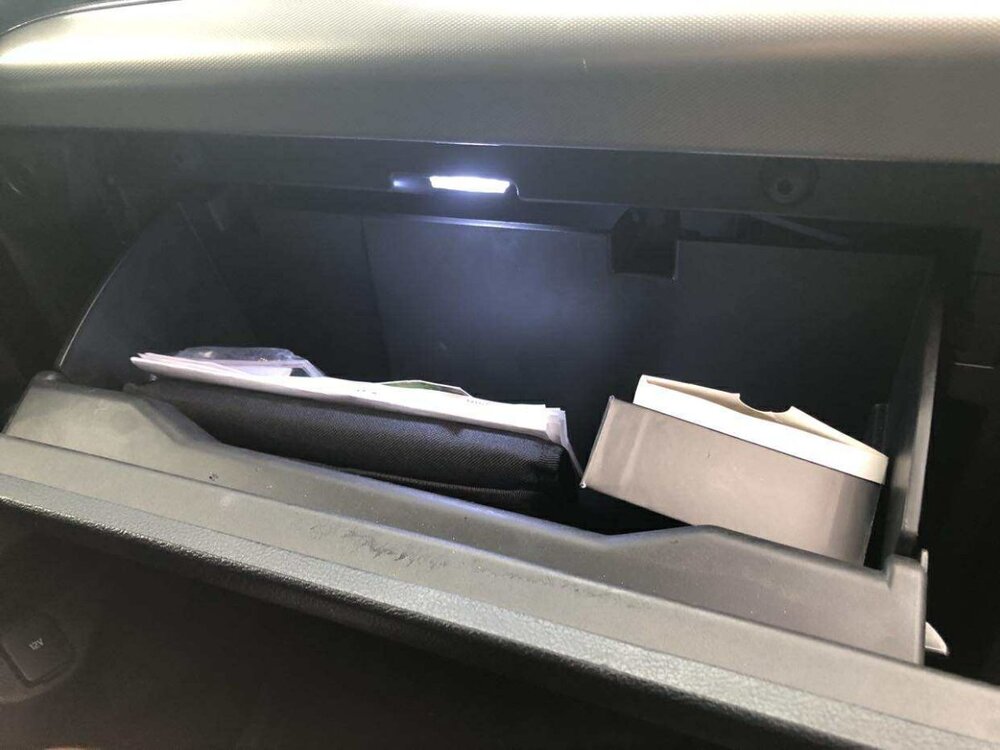

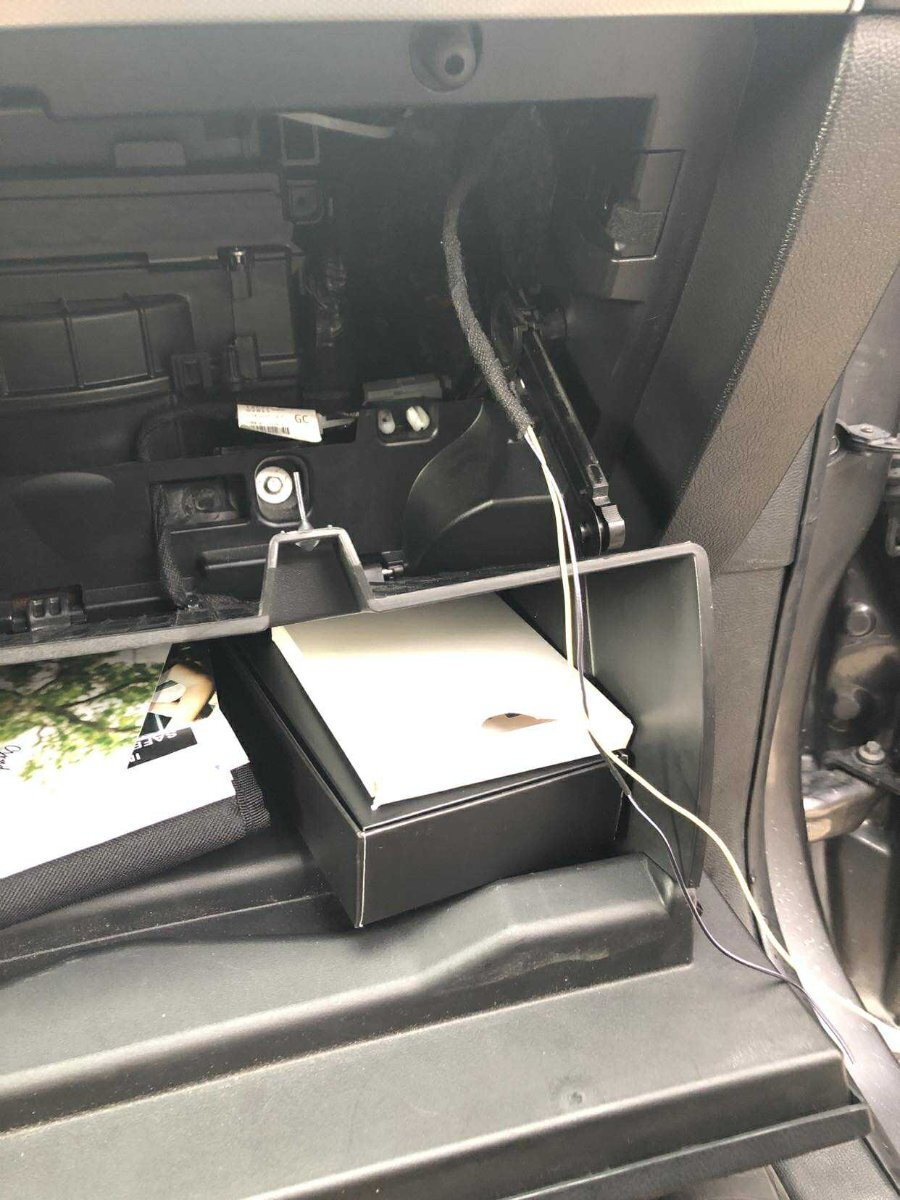

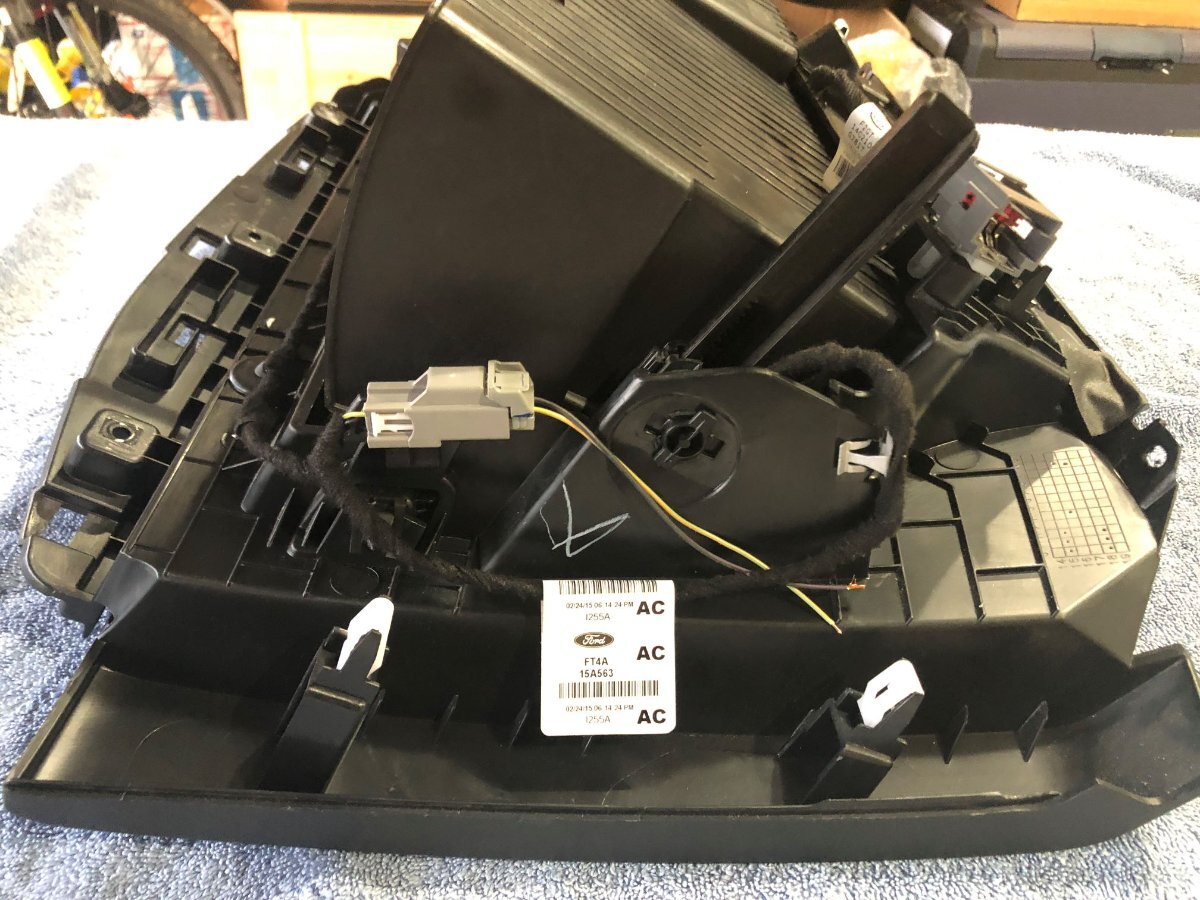

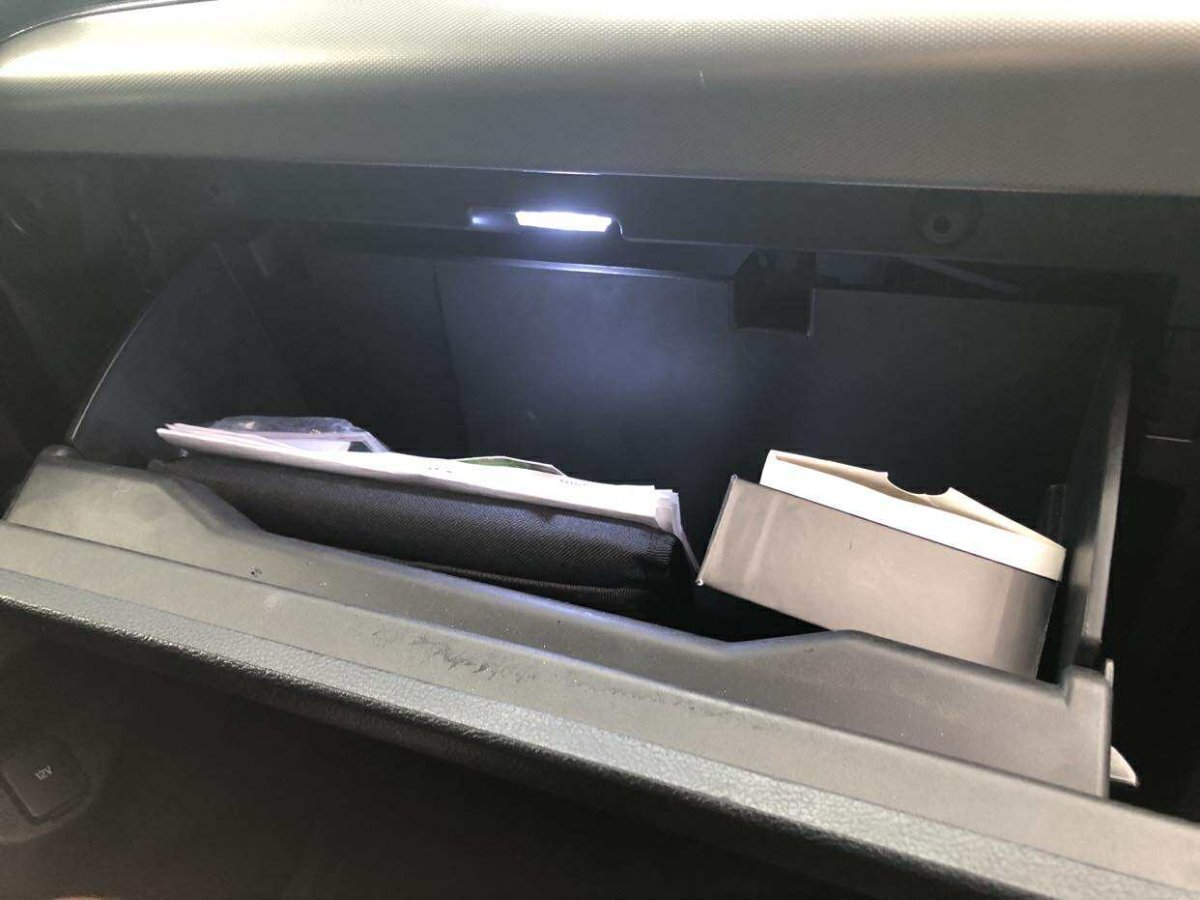

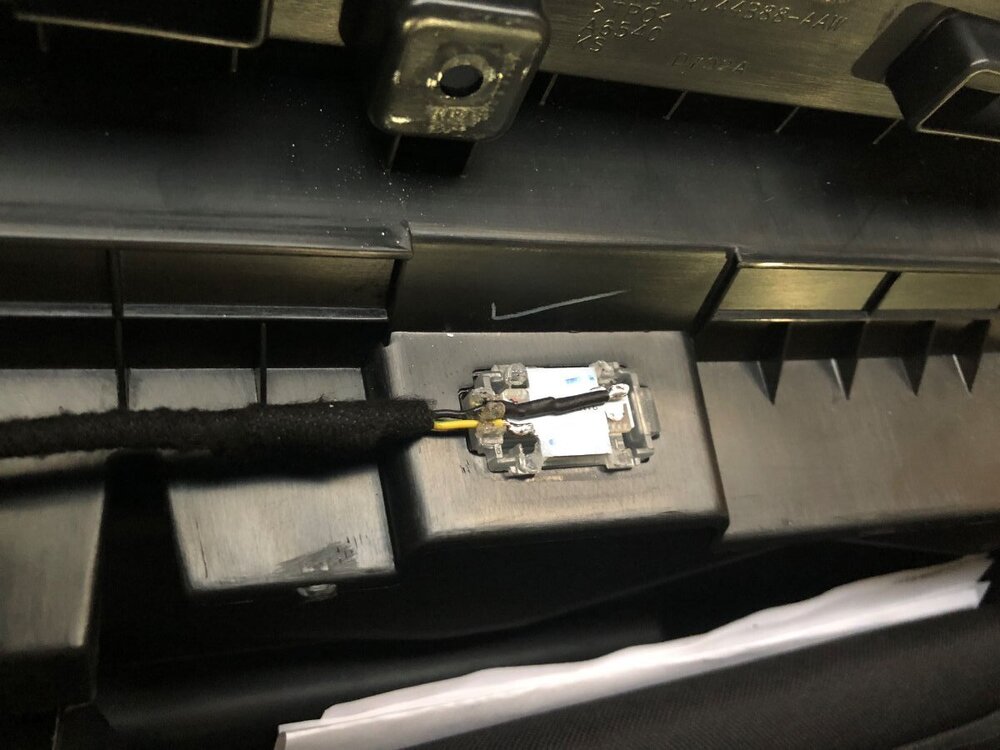

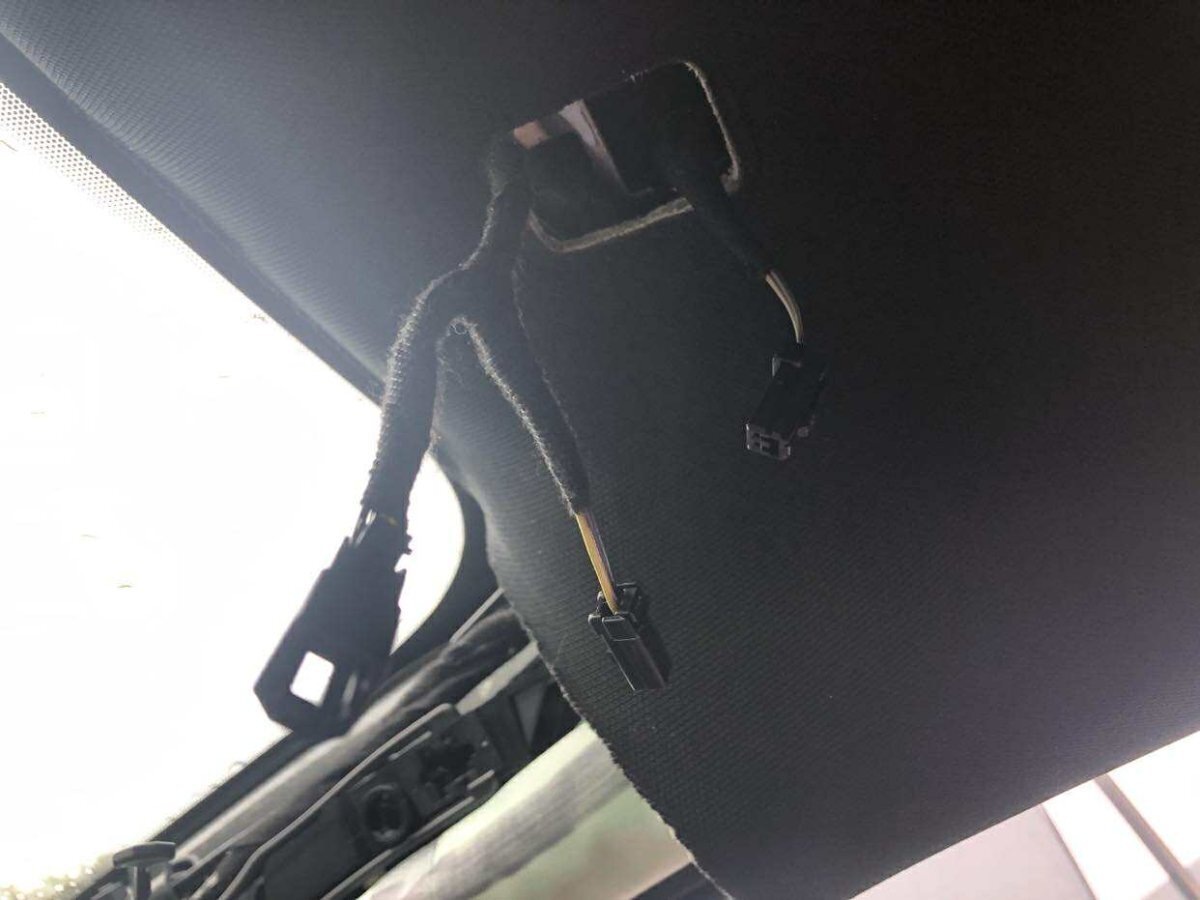

The little things matter 😉 Added glove box compartment light back in the Edge. Don't know why Ford deleted it in the first place. Scored a 2017 Edge glove box lamp harness and damper from the junkyard. With a little bit of DIY (dremel action & soldering), swapped out the LED PCB for a brighter aftermarket one. I made a T-harness to tap into the passenger side (visor) vanity mirror lamp circuit. Ran that down the psngr side A-pillar all the way to the glove box.

Power Fold Mirrors installed and fully functional but 360 cameras on pause. As previously mentioned, I was able to make a harness adapter 16pin-to-22pin with a 4pin pigtail for the side camera. Harness went in like a breeze. The hole in the door where the mirror connector sits has to be widen a bit to accommodate the new 22-pin Chinese mirror. Any good rotary tool will do the trick. Took a lot more pictures, available upon request.

I get most of my connectors & terminals from Mouser.com Crimpers I use: iCrimp SN-2546B iCrimp SN-2549 (that's the one I use the most for 0.5, 0.64. 1.2, 1.5 & 2.8mm terminals) iCrimp SN-28B

I used a set of 5-pin Molex HDAC-64 to tap power/ground off the rearview mirror for my radar detector. Parts used: 22 to 20 ga primary stranded automotive primary wire Molex Female Connector P/N: 31072-1010 Tyco Female Terminals P/N: 1393366-1 Molex Male Connector P/N: 31072-1040 Tyco Male Terminals P/N: 2-1419158-5 RJ11 Radar Detector Hardwire Power Cord Amazon Link MY22 Ford Edge w/ IPMA

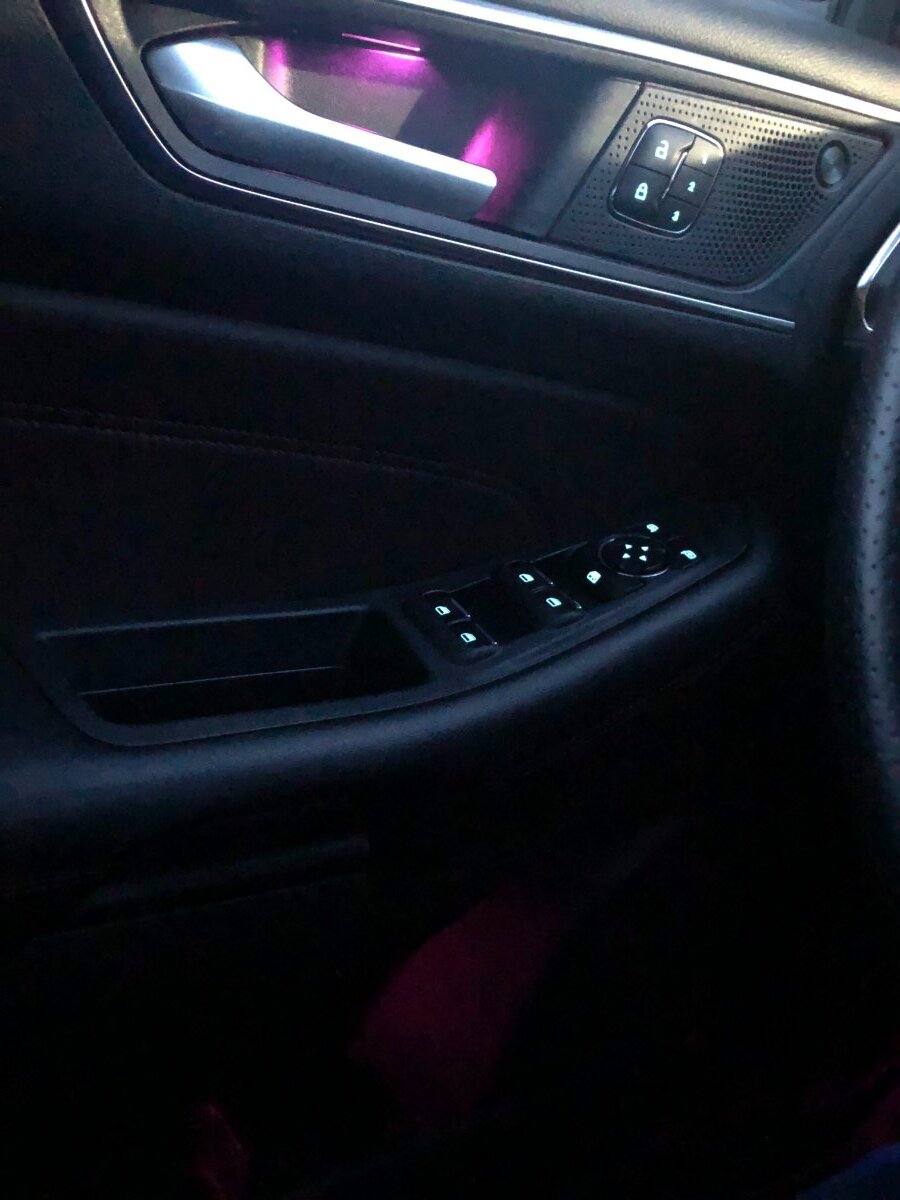

Made a T-Harness to tap into the cupholder ambient lighting, ran each side of the harness under the carpet, under the front seats and install the under seat (aka rear footwell) "RGB" OEM ambient lighting.

Hard Lesson learned, GT4Z-14529-AA is a 4-pin window switch similar to the Fusion's. Not what we're looking for. Instead I'm now looking at using the F150's (20-pin) power fold window switch I picked one up at the junkyard P/N: FL3T-14B133-AHW. The pinouts are identical. To be continued.

Mine looked exactly like yours 2 days ago 😁 You can change it with Forscan. 7D0-01-02 xxxx-xxxx-Xxxx The original value at that position should be a “3”, change it to a “2”, cycle the ignition on/off et voila.

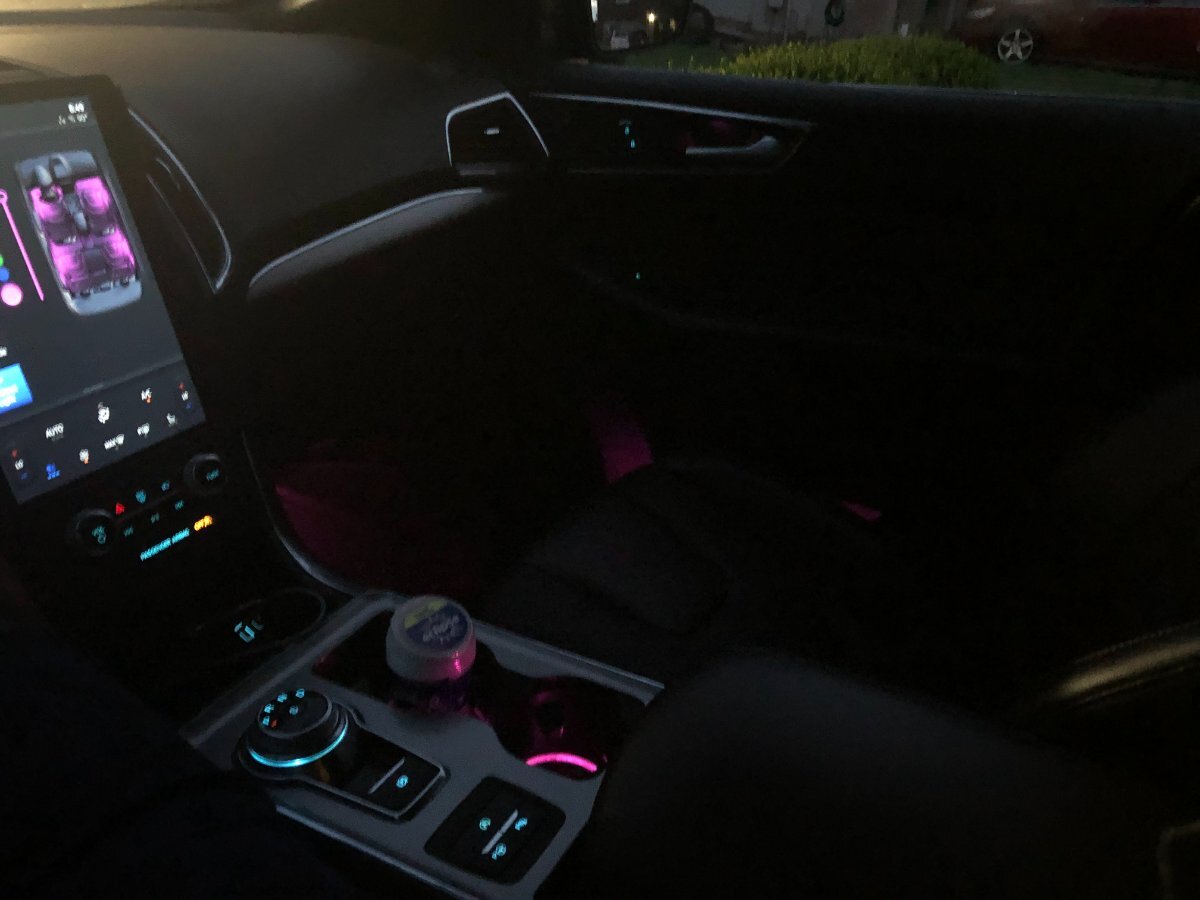

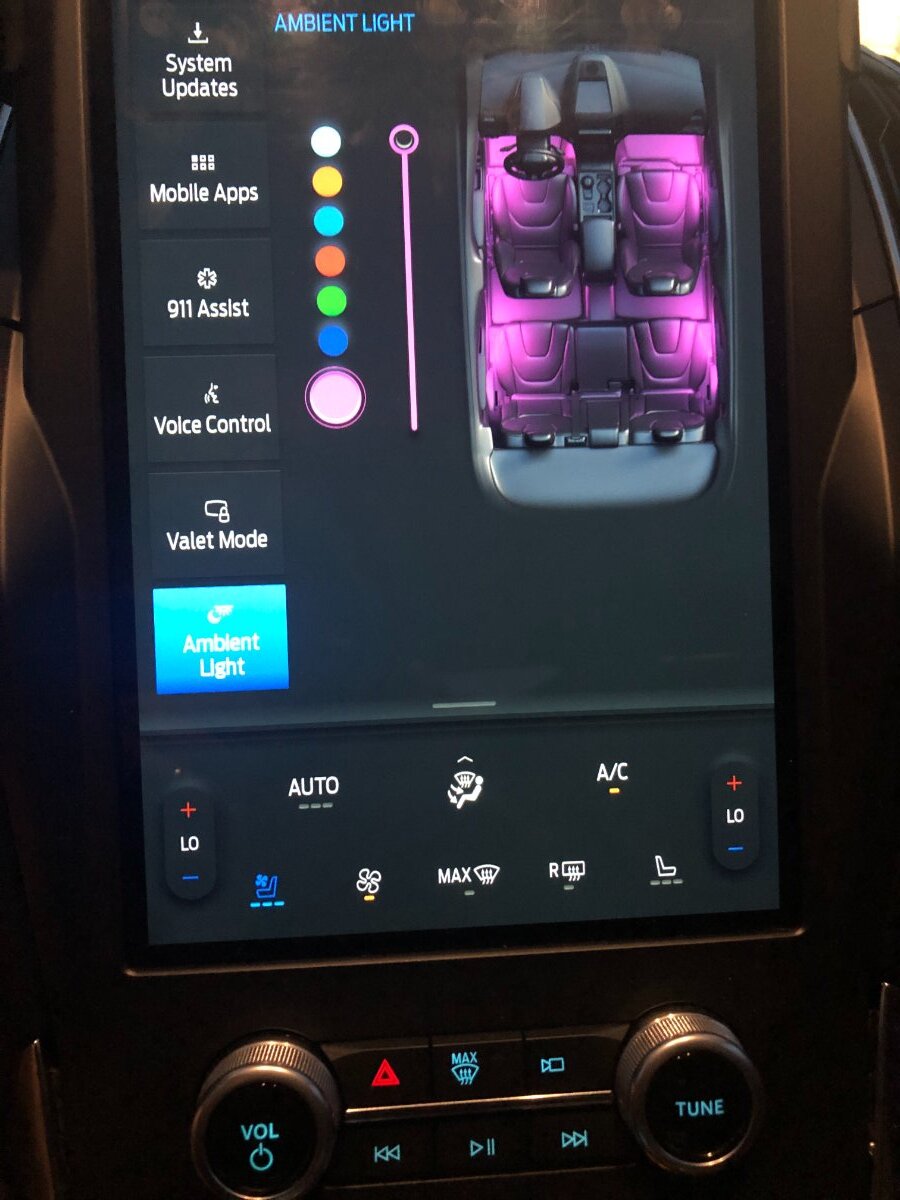

Thanks for the inspiration @Wubster100 My edge is a 2022 Titanium, it came with single color ambient lighting. Took a trip to the yard and was lucky enough to score all the OEM ambient lighting parts from a 2017 Edge Titanium. The cup holder LED harness came from a 16 F150. APIM asbuilt change 7D0-01-02 xxxx-xxxx-2xxx - from single color to pantone (aka RGB)

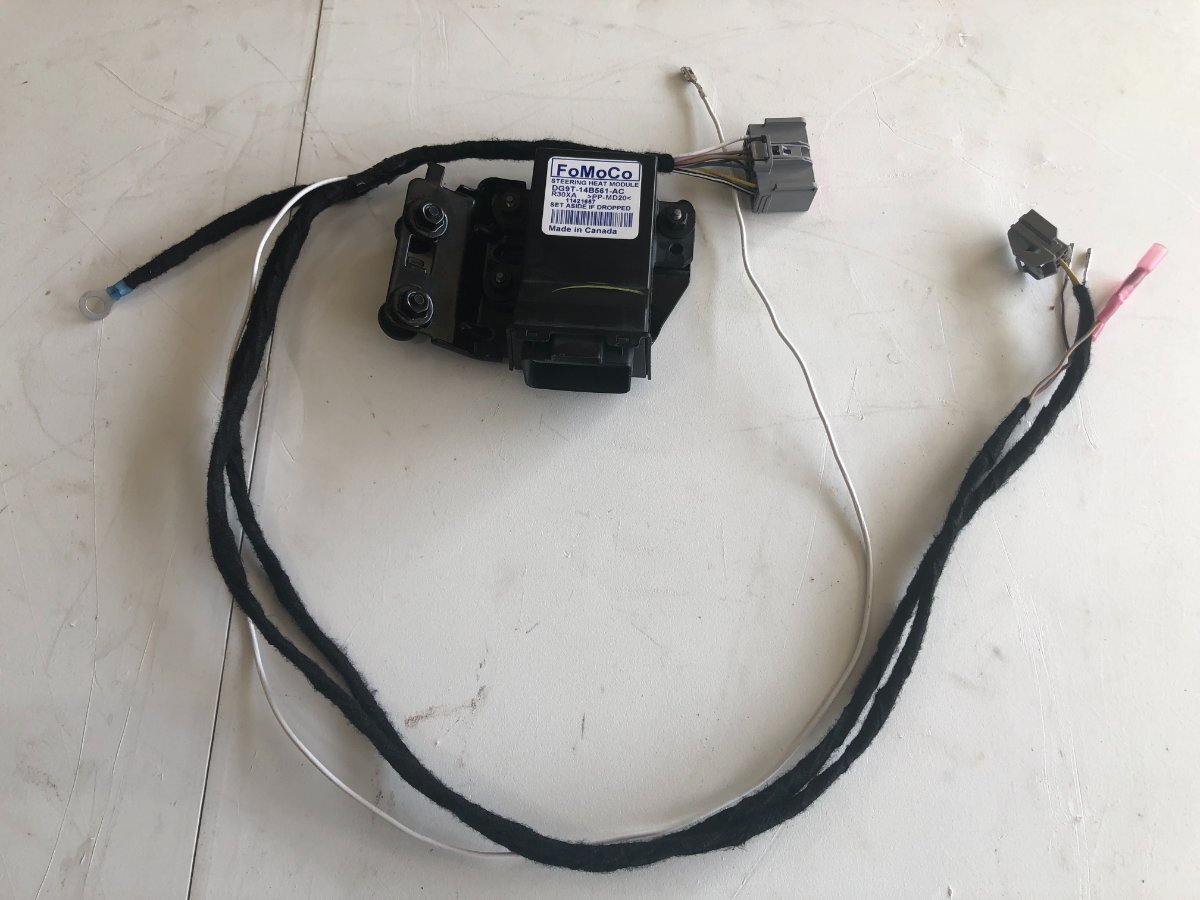

PM me if Interested: Steering Wheel, Leather, Heated w/ Shifter Paddles Clockspring, Heated Right Stalk w/ Auto Wipe Left Stalk w/ Lane Assist Switch LH, Lane Centering, Adaptive Cruise Switch RH, Audio Controls Power Tilt, Power Telescope Steering Column Kit: Custom DIY Heated Steering Wheel Harness + Module + Bracket

Correct, the IPMB is now under the driver seat. 2022 Edge - IPMB removal.pdf

I plan on making a Y-Harness adapter from the 22pin Chinese Edge mirror connector split into a 16pin+4pin. The 16pin will plug into the edge mirror connector car side and the 4pin will be for the camera wiring. I included the connector housing (pdf) datasheets, you can purchase those from Mouser, Digikey or other online retailers. 19_Edge (China) Mirror Diagram.pdf C501B - (China) DDM.pdf C501A - (China) DDM.pdf C517 - (China) LH Mirror.pdf C615 - (China) RH Mirror.pdf C652A - (China) PDM.pdf C652B - (China) PDM.pdf 16Pin Male_CD_1419167.pdf 4Pin Female_1456983-1.pdf 4Pin Male_6-1419166-1.pdf 22Pin Female_2208021.pdf

Hell yeah, I don't see why not, If one has the skill set for that. But it's worth mentioning that the Chinese Edge mirrors (premium trim) offer camera & power fold options. Pretty Sweet ! You would need to do a little bit of wiring modification, swap out your current window switch for P/N: GT4Z-14529-AA and do some DDM Forscan code change to make the power fold option work.

Oh I guess you can't see it if you're not a member of the Group. My Bad !!! You can message him directly: https://www.facebook.com/ohichen/
