Correct torque value

[JMB]

Good morning everyone. I am do the rear brakes on a 2017 Sport. I was looking for the torque value for the caliper bracket and the caliper slide pin. I purchased a down loadable Ford repair manual 2015 to 2024 manual from eBay. Manual is date 2015. That has the caliper bracket at 99 ft-lb and the slide pins at 21 ft-lb. I thought to myself 99 ft-lb seemed high. I started to look around on line which seems to be hard to find exactly. Goggle has it at 66 ft-lb. Also a YouTube video on a 2018 Sport has it at 41 ft-lb. Caliper side pin I have found at 21 ft-lb and 19 ft-lb which is not to far off. Wheel torque is right at 162 ft-lb which is correct.

[Haz]

Welcome to the Forum @JMB!



From the 2017 Edge Workshop Manual...



Front Brake Caliper Flow Bolt torque: 18 lb.ft (25 Nm)

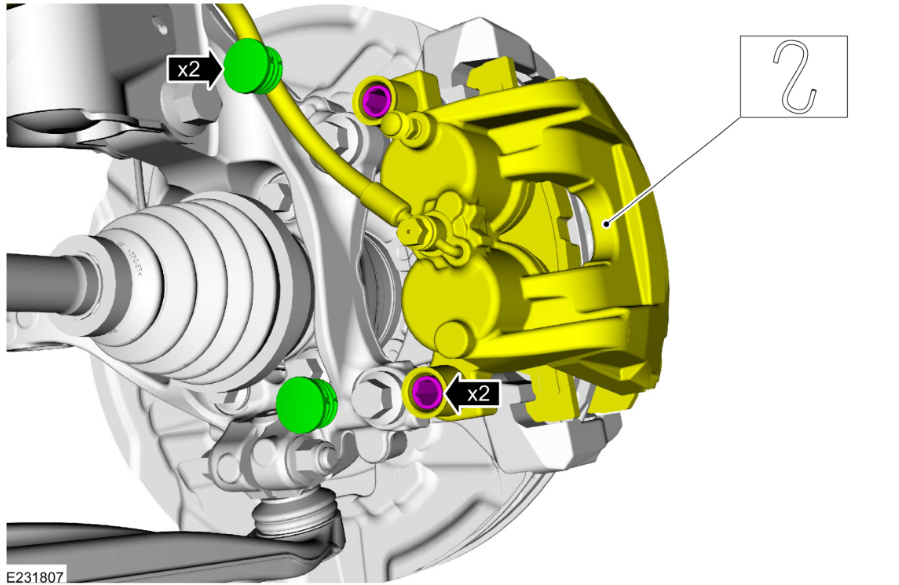

Front Brake Caliper Guide Pin torque: 41 lb.ft (55 Nm)

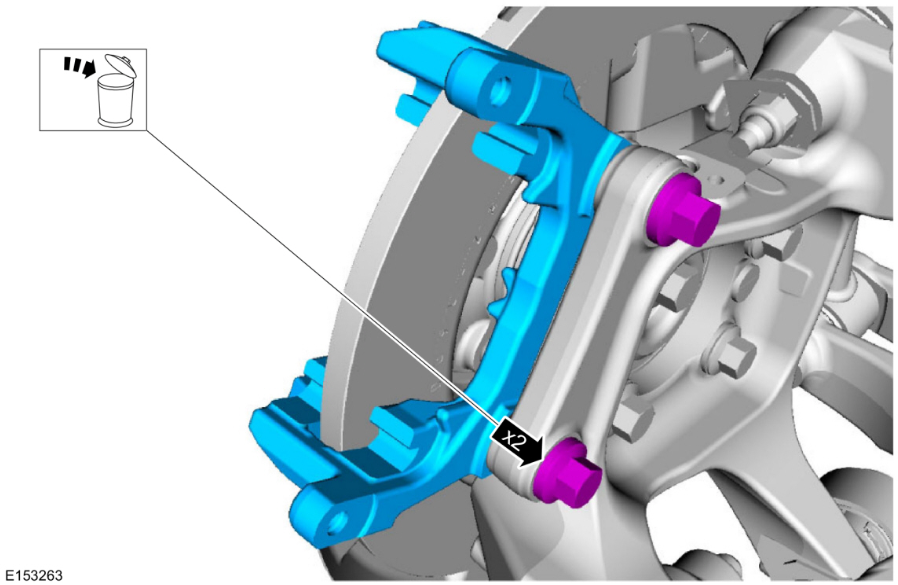

Front Brake Caliper Anchor Plate torque: 111 lb.ft (150 Nm)





Front Brake Disc Shield torque: 106 lb.in (12 Nm)

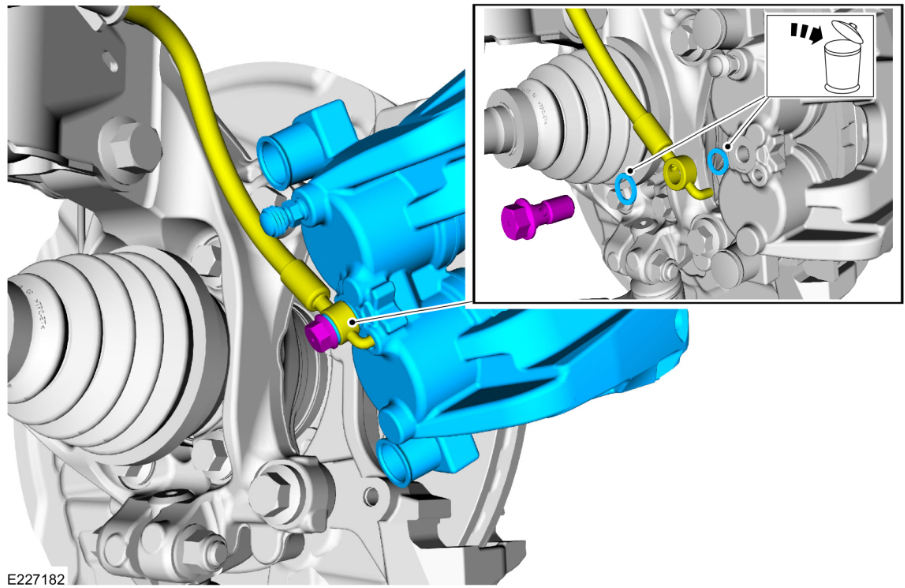

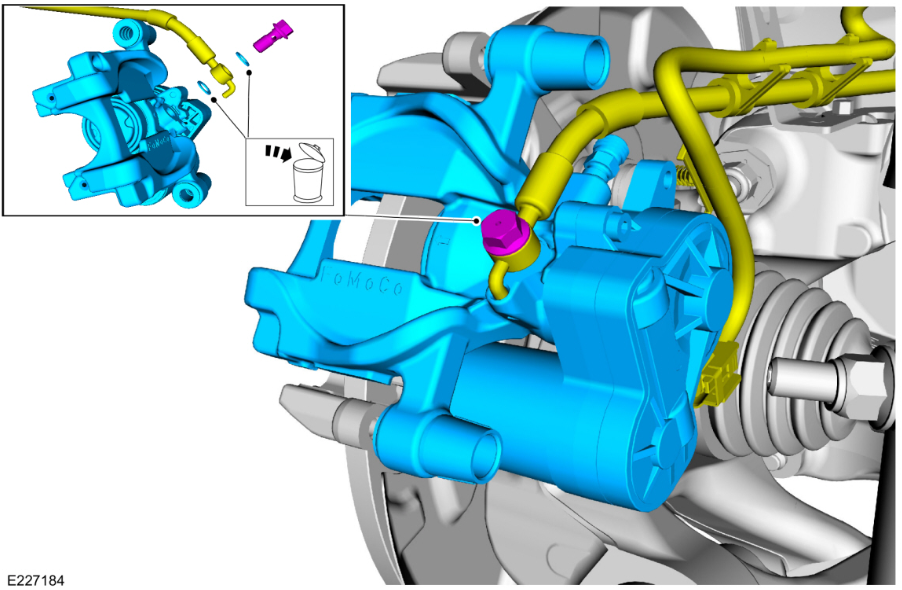

Rear Brake Caliper Flow Bolt torque: 18 lb.ft (25 Nm)

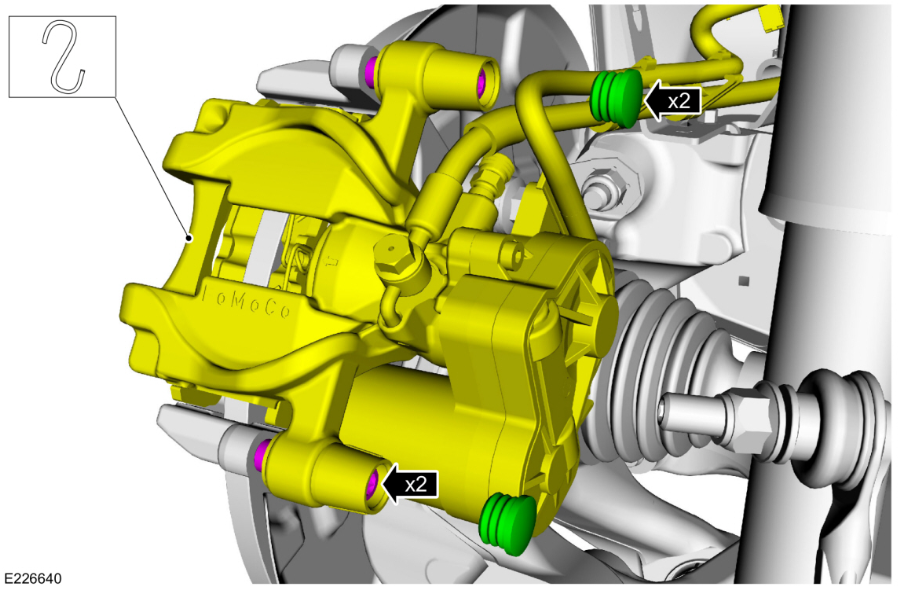

Rear Brake Caliper Guide Pin torque: 21 lb.ft (28 Nm)





Rear Brake Caliper Anchor Plate torque: 66 lb.ft (90 Nm)





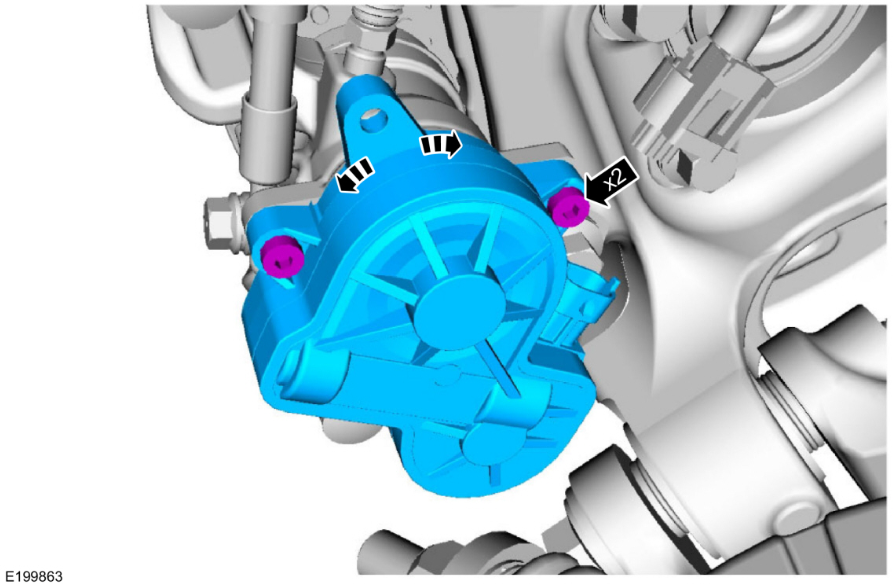

Parking Brake Actuator Motor torque: 71 lb.in (8 Nm)

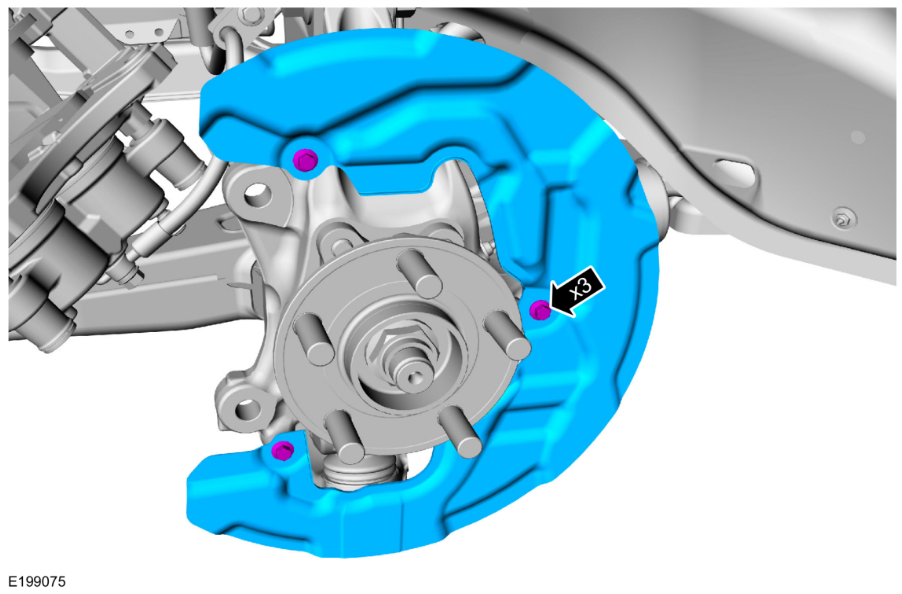

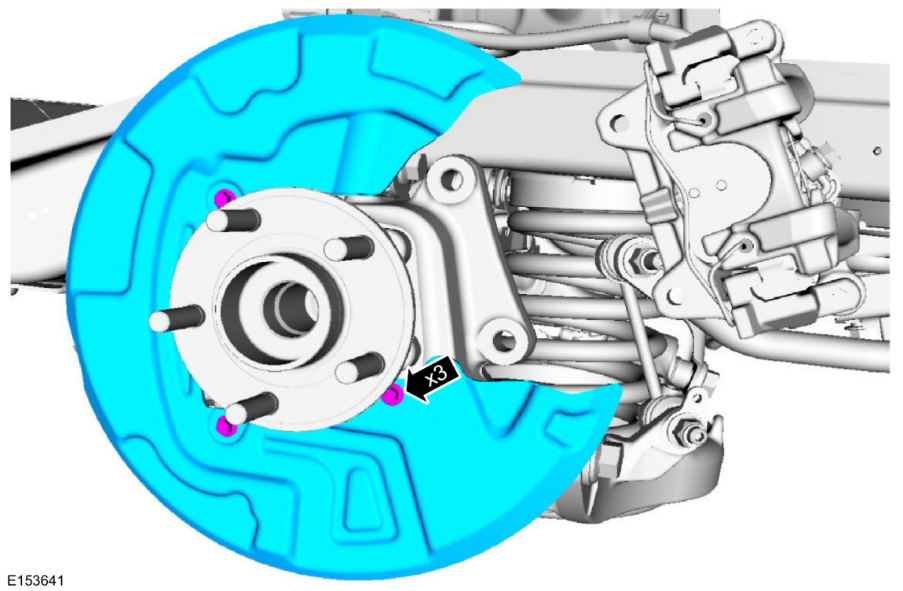

Rear Brake Disc Shield torque: 106 lb.in (12 Nm)





Wheel/Tire torque: 162 lb.ft (220 Nm)

  WARNING: Retighten wheel nuts within 160 km (100 mi) after a wheel is reinstalled. Wheels can loosen after initial tightening. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

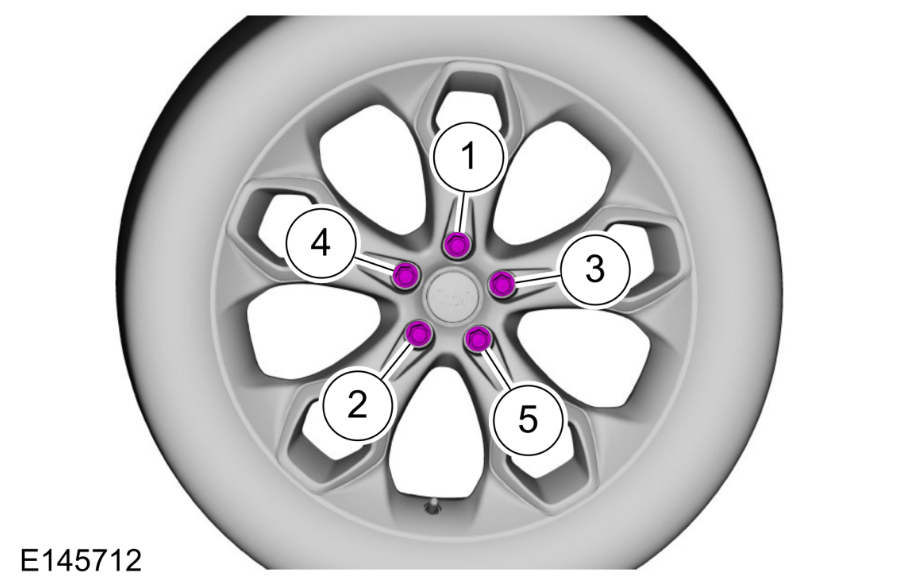

NOTICE: Failure to tighten the wheel nuts in a star/cross pattern can result in high brake disc runout, which accelerates the development of brake roughness, shudder and vibration.

NOTE: The wheel nut torque specification is for clean, dry wheel stud and wheel nut threads.

NOTE: Final tightening to be performed with vehicle resting on tires.





Good luck!
