Yurez

Good afternoon. What year is your car? Can you post the dashboard configuration?

To program the keys you need a new RTM. There is no point in saving the configuration of the old Rtm.

Based on the part number, I determined that it belonged to a Mustang. then I found a Ford Edge about the same year using the VIN code and used the files for the firmware

I can't connect the charger. I connected power to pin 1 and charge enable to pin 3. Ground at 5 pins. Charging doesn't work. Can it work without being connected to the car.

Thank you very much for your help. you are the best as always

Does anyone have a wiring diagram for wireless charging? m1pt-19j235-aa Ford edge 2020

There remains a small inaccuracy. The opening of the rear door is not displayed on the display; there is something else that can be corrected in the configuration?

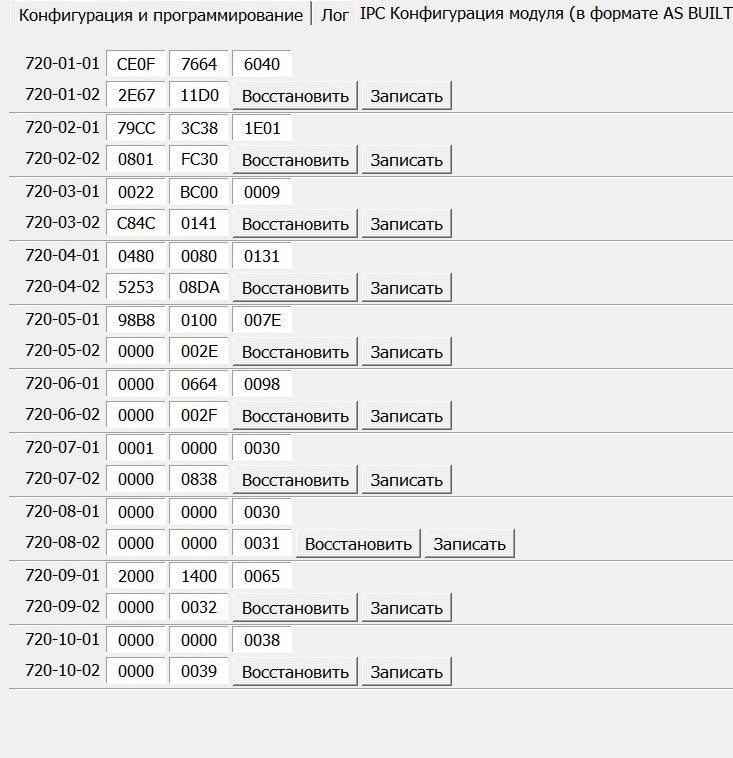

Maybe someone will find the final configuration of the dual-screen dashboard for the 2018 EDGE SE useful. Later, BLIS radars and heated mirrors will be installed. Thank you very much Haz for your help!

what value should be set and how is it related to blis?

In order to disable the error about loss of communication with the parking assistance module, you need to set 0 in cell 720-01-01 ХХХХ-ХХХХ-Х0ХХХ. The slob still has one error, U0103, loss of connection with the GSM module. Help me figure out if the shifter type is set incorrectly?

From personal experience in installing remote start and installing a new RTM unit. My 2018 EDGE had an RTM installed from a 2015 MUSTANG and naturally the wheel pressure sensors stopped working. I updated the RTM to the latest firmware from a 2020 machine. And retrained the pressure sensors. After that everything worked.

Many thanks for the help. Here is my configuration. I still have the problem of displaying the opening of the trunk door on the dashboard and loss of communication with the parking assistance unit.

Good afternoon. The 2018 Ford EDGE 2.0 has replaced the single-screen instrument panel with the dual-screen instrument panel of the 2020 Titanium model with a power rear trunk lid. I don’t have one and an error appeared in the IPS for loss of communication with the rear door unit. Tell me how to correct the instrument panel configuration using Forscan.

On my Ford EGE 2018 2.0, for the remote start system, I installed an RTM unit from a 2015 Ford MUSTANG, after which the TPMS system stopped working. In the BCM settings, the type of sensors was set to MY09 and MY15. Only the MY09 sensor works. I have MY15 sensors installed in my wheels. How to be. Maybe update the RTM module? Sorry for my English, I'm translating through a translator. RTM - Radio Receiver Module Part Number: FL3T-15K619-CB Calibration level: FL3T-15K619-CB (last known: FL3T-15K619-CC) Strategy: FL3T-14G090-AB
