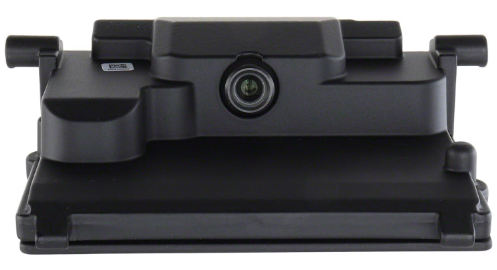

potage Posted January 3 Report Share Posted January 3 Hey, do any of you guys know the pinout for the lane keep assist camera for a 2019 ford edge this is the part number KT4T19H406CE thanks! Quote Link to comment Share on other sites More sharing options...

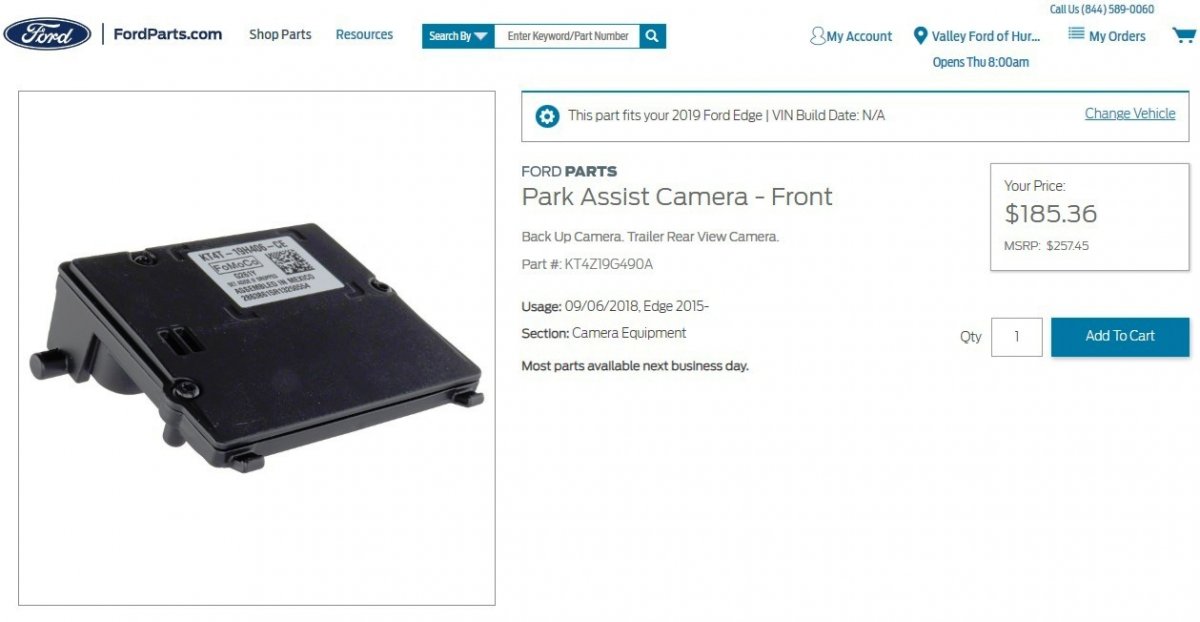

Haz Posted January 3 Report Share Posted January 3 (edited) Document download links> IMAGE PROCESSING MODULE A (IPMA) - Connector C9224 Details - 2019 Edge.pdf IMAGE PROCESSING MODULE A (IPMA) - Connector C9224 Location - 2019 Edge.pdf IMAGE PROCESSING MODULE A (IPMA) - Wiring Diagram - 2019 Edge.pdf IMAGE PROCESSING MODULE A (IPMA) - Removal and Installation - 2019 Edge Workshop Manual.pdf IMAGE PROCESSING MODULE A (IPMA) - Removal and Installation - 2019 Edge Workshop Manual.pdf Lane Keeping System - System Operation and Component Description - 2019 Edge Workshop Manual.pdf Lane Keeping System - Component Location - 2019 Edge Workshop Manual.pdf Link to this FordParts webpage Good luck! Edited January 3 by Haz 1 Quote Link to comment Share on other sites More sharing options...
potage Posted January 3 Author Report Share Posted January 3 Thanks a a lot! it turned out to be the same pinout as the maverick, the wiring has a different color coding, the system operation module is reallyy nice! Quote Link to comment Share on other sites More sharing options...
FrankJenkins Posted January 15 Report Share Posted January 15 I don't have the pinout for the KT4T19H406CE specifically, but for similar Ford models, the wiring often follows a standard color coding. Quote Link to comment Share on other sites More sharing options...
potage Posted January 15 Author Report Share Posted January 15 I can confirm that the pin out is the same as the ford maverick, wiring color code is different, I managed to connect and see the module in forscan Quote Link to comment Share on other sites More sharing options...
