my 2012 edge Posted January 29 Report Share Posted January 29 I have a 2012 edge just replaced battery two weeks ago. Now I have this code I cleared it and it came back any ideas Quote Link to comment Share on other sites More sharing options...

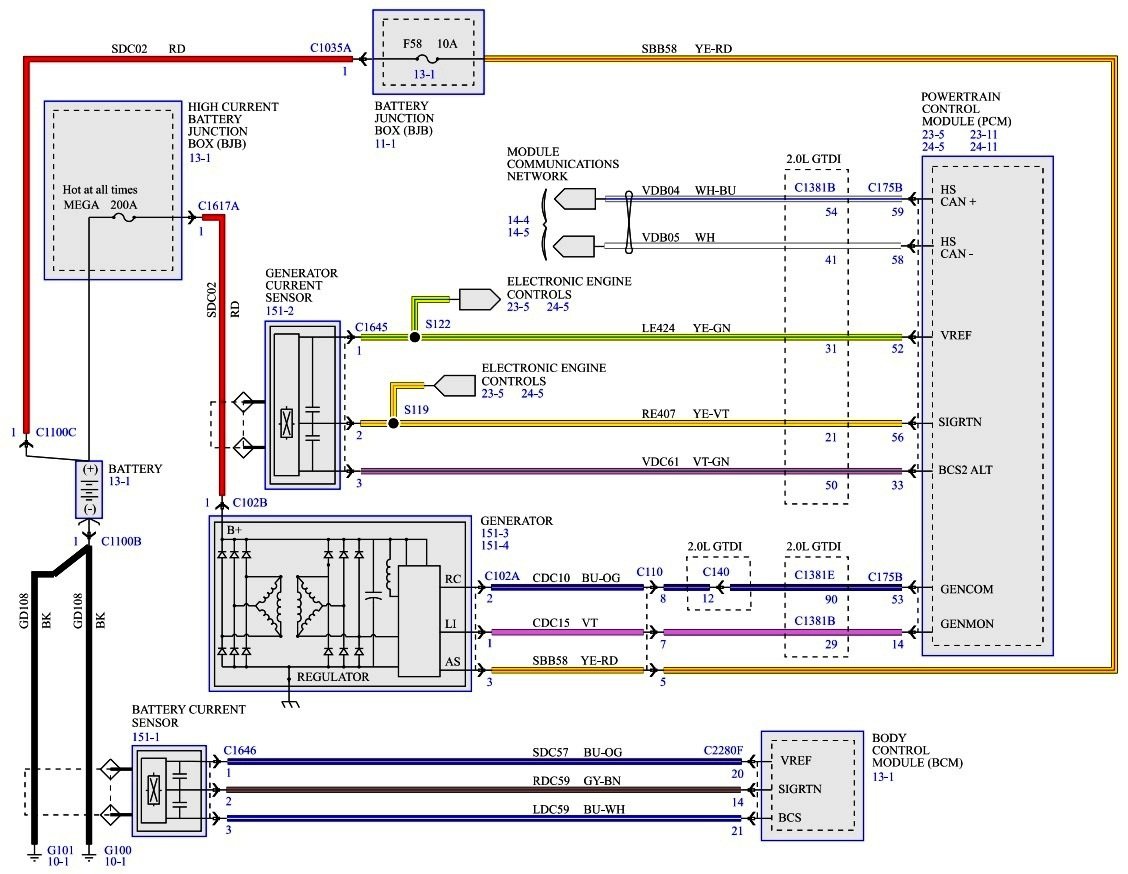

Haz Posted January 29 Report Share Posted January 29 From the 2012 Workshop Manual... Pinpoint Test D - DTC P0625 or P0626 [Introduction - Full procedure is linked below] Refer to Wiring Diagrams Cell 12 , Charging System for schematic and connector information [Pictured here and also linked below]... Normal Operation [Emphasis added] The PCM monitors the generator output via the generator monitor (GENMON) circuit. If the PCM cannot read the GENMON circuit due to an open or short to ground, when the engine rises above approximately 2,000 rpm, the generator defaults to a steady voltage of approximately 13.5 volts and the PCM sends a request to the Instrument Panel Cluster (IPC) to illuminate the charging system warning indicator. A GENMON duty cycle of 3% or less indicates a short to ground fault is present and results in DTC P0625 setting in the PCM. A GENMON duty cycle of 98% or more indicates an open or short to voltage fault is present and results in DTC P0626 setting in the PCM. DTC P0625 (Generator Field Terminal Circuit Low) — The PCM sets this DTC if the GENMON circuit is shorted to ground, the "A" sense circuit is open or the B+ circuit is open. This DTC also sets by a faulted PCM or generator. DTC P0626 (Generator Field Terminal Circuit High) — The PCM sets this DTC if the GENMON circuit is open or shorted to power. This DTC can also be set by a faulted PCM or generator. This pinpoint test is intended to diagnose the following: Fuse Wiring, terminals or connectors Radial arm adapter Engine, generator and battery grounds Battery Generator PCM Relevant wiring and connector information & Workshop Manual sections are linked immediately below. Document download links> Pinpoint Test D For DTC P0625 or P0626 - Diagnosis and Testing - 2012 Edge Workshop Manual.pdf Charging System Wiring Diagram - 2012 Edge.pdf Generator - Connector C102A Details - 2012 Edge.pdf Generator - Connectors C102A & C102B Location - 2012 Edge.pdf Powertrain Control Module (PCM) - Connector C175B Details - 2012 Edge.pdf Powertrain Control Module (PCM) - Connector C175B Location - 2012 Edge.pdf Charging System Principles of Operation - Diagnosis and Testing - 2012 Edge Workshop Manual.pdf Good luck! 1 Quote Link to comment Share on other sites More sharing options...
my 2012 edge Posted January 30 Author Report Share Posted January 30 Thanks I'll try and figure it out 1 Quote Link to comment Share on other sites More sharing options...
my 2012 edge Posted February 6 Author Report Share Posted February 6 It was the alternator 1 1 Quote Link to comment Share on other sites More sharing options...
