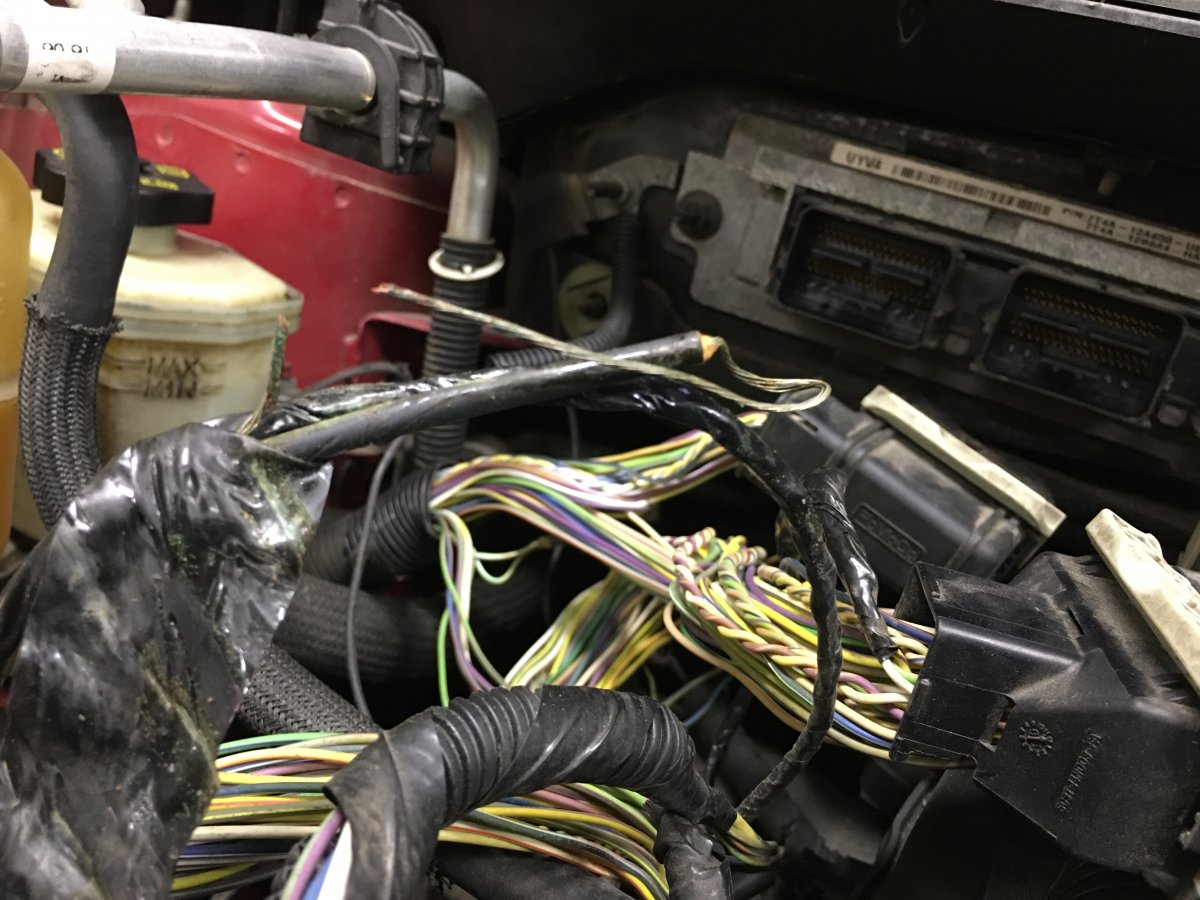

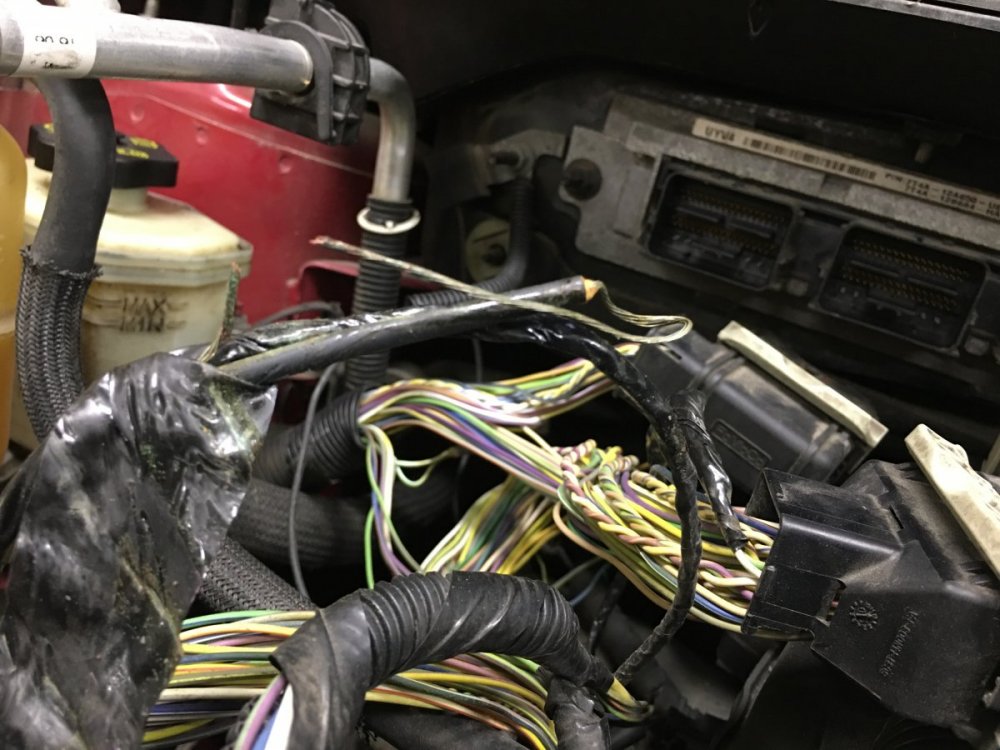

Good_T Posted September 20, 2022 Report Share Posted September 20, 2022 I have replaced both sensors in the transmission about 3 weeks ago. Had no problems for that time period. Then out of the blue I received the error again. I get the seat bag symbol and the wrench symbol first. This time I found a wire that was broken that goes from the center connector on the fire wall to the connector on the front valve cover. This wire was bare, and you can see where it had been patched in and could see where it had been taped to another pair of twisted wires that have shielded wrap on them. This wire was corroded and rusted. It was broken at the valve cover end. The code started with the dash going nuts again and finally the speedometer and tach quit working. Now yesterday after having fixed the broken wire, it happened again. Dash goes crazy and finally speedo and tach quit. All lights on the dash are on. Once the car sits for a while it will start and runs just fine for a little while. So I am stumped as to what other issues could be wrong. Any suggestions as where to start would be appreciated. And as far as transmission issues there has never been any problems with shifting at all. The only time I had a hard shift was last winter when it was about 10 deg. and that was just from 1st to 2nd. Once warmed up never again. I have included a picture of the wire for reference and it shows the location, pretty much Quote Link to comment Share on other sites More sharing options...
ebank Posted September 20, 2022 Report Share Posted September 20, 2022 First thing I would check is the battery, not the voltage, get an accurate CCA test. Replace the battery if it is lower than rated CCA. Quote Link to comment Share on other sites More sharing options...
Good_T Posted September 20, 2022 Author Report Share Posted September 20, 2022 I won't be able to get that done till tomorrow, are these machines that particular, just asking. Any idea about the broken wire that was a bare wire? I will let you know about the battery Quote Link to comment Share on other sites More sharing options...
Haz Posted September 20, 2022 Report Share Posted September 20, 2022 (edited) The gauge cluster symptoms are indicative of an inter-module communications fault that is often the result of low-voltage conditions caused by a failing/failed battery. Those symptoms can also be caused by wiring/connector/module faults, which require the determination you've already shown by finding the broken bare wire in the harness. The quickest-easiest check is on the battery, per ebank's advice. If the battery tests 'good' at your local big-box parts store, I will provide you wiring diagrams, connector details, and diagnostic & testing procedures to dig deeper than you already have. Getting a scanner on your Edge to assess what Diagnostic Trouble Codes (DTCs) are stored in various modules will provide a valuable path toward identifying and correcting the problem. While you are waiting on battery-test results, and to enable you to assess the bare wire's function, below as PDF download links are Powertrain Control Module (PCM) wiring diagrams and connector details... Electronic Engine Controls - 3.5L - Wiring Diagram Pg 1 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 2 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 3 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 4 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 5 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 6 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 7 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 8 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 9 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 10 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 11 - 2007 Edge Workshop Manual.pdf Electronic Engine Controls - 3.5L - Wiring Diagram Pg 12 - 2007 Edge Workshop Manual.pdf Powertrain Control Module (PCM) - Connector C175B Details - 2007 Edge Workshop Manual.pdf Powertrain Control Module (PCM) - Connector C175E Details - 2007 Edge Workshop Manual.pdf Powertrain Control Module (PCM) - Connector C175T Details - 2007 Edge Workshop Manual.pdf Powertrain Control Module (PCM) - Connector C175B-E-T Location - 2007 Edge Workshop Manual.pdf Powertrain Control Module (PCM) - Removal and Installation - 2007 Edge Workshop Manual.pdf Good luck! Edited September 20, 2022 by Haz 1 Quote Link to comment Share on other sites More sharing options...
Good_T Posted September 21, 2022 Author Report Share Posted September 21, 2022 I had the battery tested and it was good. CCA rated at 610 and checked at 610, reserve was also checked ok. I did clean off more grounds on the car. 2 on the engine, 1 went to a spot on the r/s where the a/c lines are and another one on the firewall. Cleaned engine side also. So far on my drive to get the battery tested all seems ok, again. I will see. Quote Link to comment Share on other sites More sharing options...
Haz Posted September 21, 2022 Report Share Posted September 21, 2022 One more document which, hopefully, will be unneeded by you... Instrumentation, Message Center and Warning Chimes - Diagnosis and Testing - 2007 Edge Workshop Manual.pdf Good luck! 1 Quote Link to comment Share on other sites More sharing options...
Good_T Posted September 22, 2022 Author Report Share Posted September 22, 2022 Been extremely busy with stuff, thank you very much, hopefully I won't need to go that far either. If I do find an actual problem I will let you know. Again thanks for all the help Quote Link to comment Share on other sites More sharing options...
