2015 Edge Titanium liftgate problem


jer2011

Recommended Posts

Hi.  I have a 2015 Edge Titanium.  I have a "Liftgate Ajar" indication, and the liftgate won't open.  I have replaced the lock mechanism, then the liftgate control module.  I now need to program the liftgate control module with the vin specific data.  I am using forscan.  Does anyone know how to program the module, or is it a dealer only problem?

  • Thanks 1
Link to comment
Share on other sites

On 3/21/2024 at 1:39 PM, jer2011 said:

Hi.  I have a 2015 Edge Titanium.  I have a "Liftgate Ajar" indication, and the liftgate won't open.  I have replaced the lock mechanism, then the liftgate control module.  I now need to program the liftgate control module with the vin specific data.  I am using forscan.  Does anyone know how to program the module, or is it a dealer only problem?

supposedly there was a version of forscan that had module programming ability.

I'd recommend searching the forums on the forscan site for a better answer.

Link to comment
Share on other sites

Welcome to the Forum, @jer2011!



From the 2015 Edge Workshop Manual...

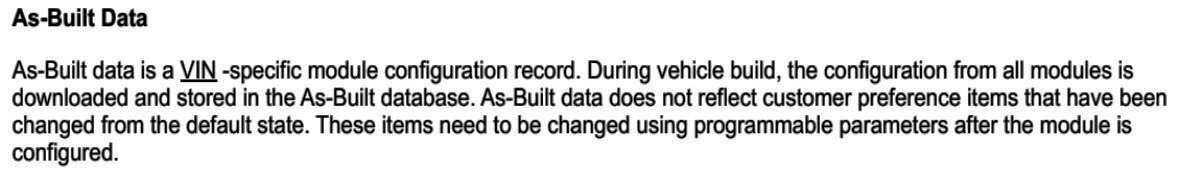

ModuleConfiguration-SystemOperationandComponentDescription-As-BuiltDataDescription.thumb.jpg.0019a3ddf28f3e0636091f87c2e9eb3b.jpg



If you installed a new module without saving its configuration data for transfer to the new module, you can obtain your Edge's As-Built all-module configuration record from the Ford Service Info site (link to opening page).

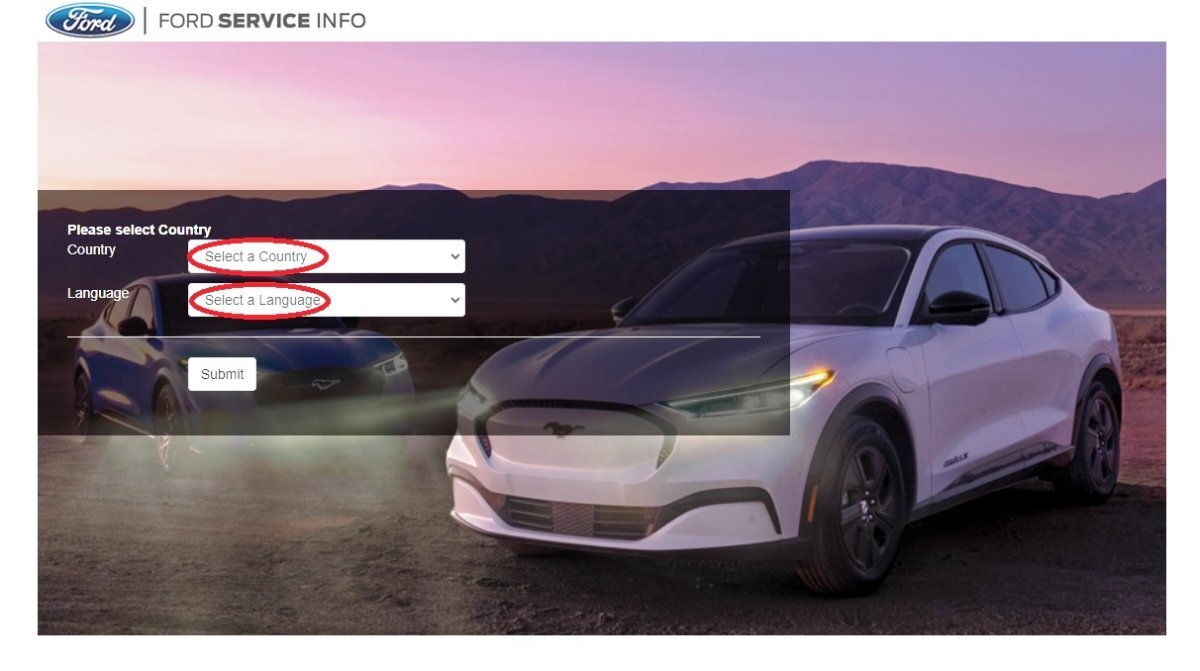

Select your country and language from the drop-down lists and click the Submit button...



OpeningPage-FordServiceInfo-As-BuiltDataSite.thumb.jpg.ea7d8f52b4aab9cca28e98958bfa51b8.jpg

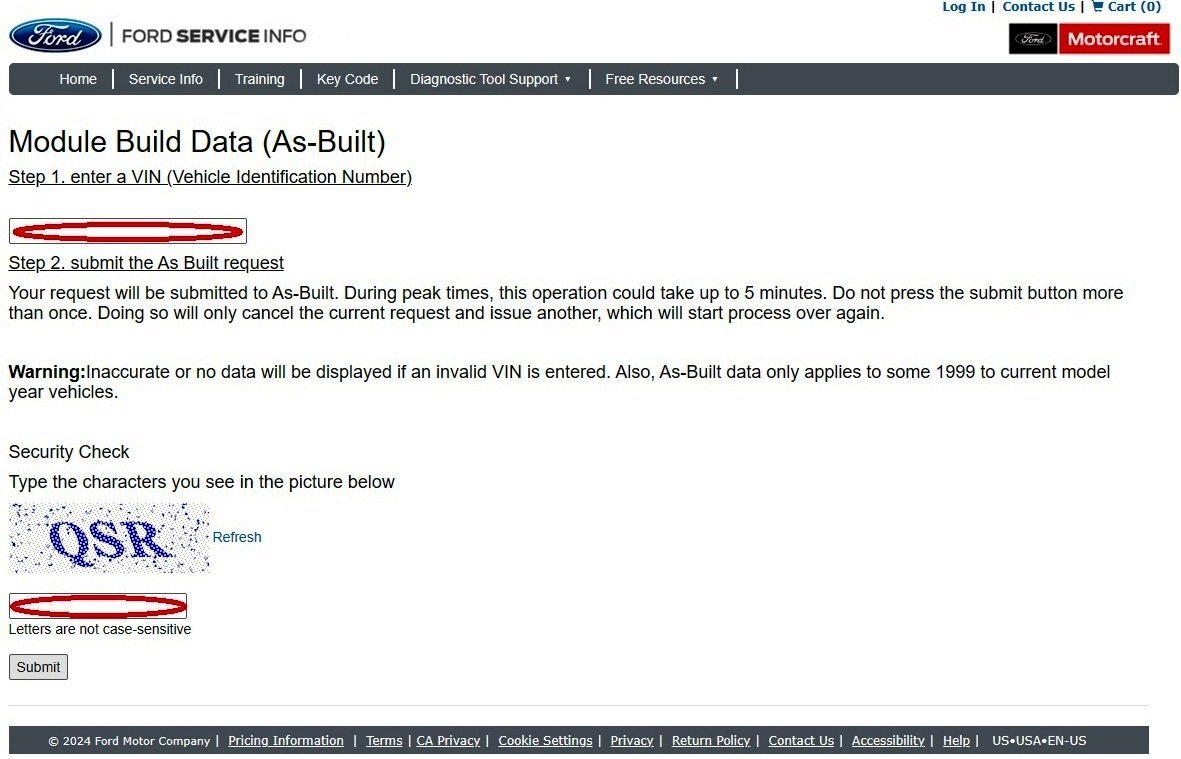

Enter your Edge's VIN and the Security Check characters in their respective fields and click the Submit button...

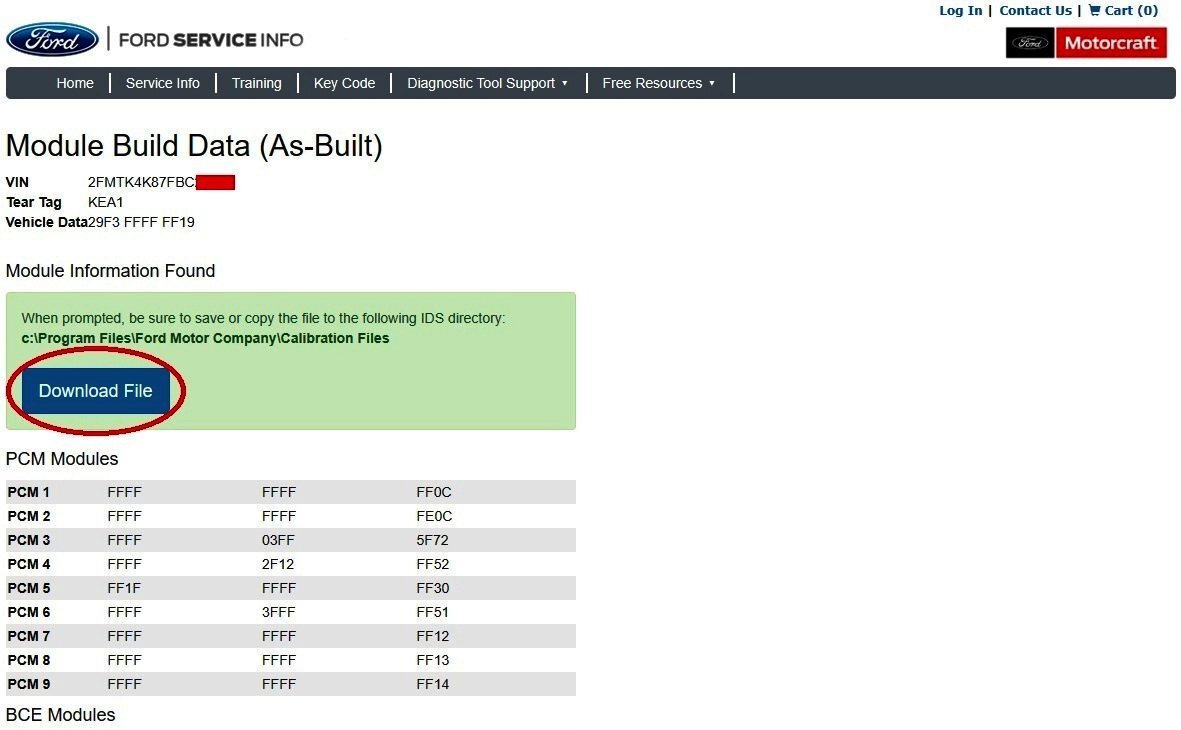

Your Edge's VIN-specific module configuration dataset will then be presented in hardcopy-printable text format (which your browser might also print to a PDF file), and the As-Built dataset can be downloaded as an .AB-format data file by clicking on the Download File button...



As-BuiltDataResultsPage-DownloadDigital.ABAs-BuiltDataFile.thumb.jpg.cbeb03effbc711362fbf0216cd792de3.jpg





The following chart includes 2015 Edge modules and their As-Built line-data addresses...



(Placing your device cursor over underlined acronyms may yield their full-words description)



Module Configuration and Parameter Chart



Module Name Module Address Programmable Module Installation (PMI) Available Reprogram/Flash Capable Requires Adaptive Learning or Calibration Available Progammable Parameters
 APIM 7D0 Yes Yes No None
ABS module 760 Yes Yes
  • IVD initialization
  • EPB apply and release
  • Trailer sway assist
 ACM 727 Yes Yes No None
 BCM 726 Yes Yes
  • Ambient lighting calibration
  • Rear view camera calibration
  • Remote start enable/disable
  • Perimeter alarm
  • Tire pressure
 CCM 764 Yes Yes
  • Radar horizontal and vertical alignment calibration
None
 DSP 783 Yes Yes No None
DACMC (integrated with ACM ) 7D5 Yes Yes No None
DC / DC converter control module (Voltage Quality Module [VQM]) 746 Yes Yes No None
 DDM 740 Yes Yes
  • Windows initialization
None
 DSM 744 Yes Yes No None
 SCME 776 Yes Yes No None
 FCDIM 7A5 Yes Yes No None
 FCIM 7A7 Yes Yes No None
 GWM 716 Yes Yes No None
 GPSM 701 Yes Yes No None
HUD module 7B2 No No No None
 HSWM 714 Yes Yes No None
 IPC 720 Yes Yes No
  • Daytime running lamps control function
  • Remote start feature
  • Remote start - climate settings
    • Driver seat
    • Passenger seat
    • Rear defrost
    • Steering wheel
 IPMA 706 Yes Yes
  • Camera calibration
None
 IPMB 7B1 Yes Yes
  • Camera calibration
None
 OCSM 765 No No
  • OCSM re-zero
None
PAM (integrated with BCM ) 736 Yes Yes No None
 PSCM 730 Yes Yes No None
 PCM 7E0 Yes Yes
  • Misfire Monitor Neutral Profile Correction procedure
None
 PDM 741 Yes Yes
  • Windows initialization
None
 RTM 751 Yes Yes No None
 RGTM 775 Yes Yes No None
 RCM 737 Yes Yes No None
 SODL 7C4 Yes Yes No
  • BLIS/CTA enable/disable
  • Blockage enable/disable
 SODR 7C6 Yes Yes No
  • BLIS/CTA enable/disable
  • Blockage enable/disable
 SASM 797 Yes Yes
  • Adaptive steering wheel angle sensor trim adjustment
None
 SECM 7C5 Yes Yes
  • Adaptive steering wheel angle sensor trim adjustment
  • Actuator trim procedure
None
 SCCM 724 Yes Yes No None
 TRM 791 Yes Yes No None



Manually entering As-Built data values and saving them to the target module will require Forscan equipped with at least a free 2-month Extended License.



Just in case it's your Edge's Rear Gate Trunk Module (RGTM) that you replaced, the following are download links to relevant Workshop Manual sections...



Body Closure - System Operation and Component Description - 2015 Edge Workshop Manual.pdf

Module Configuration - System Operation and Component Description- 2015 Edge Workshop Manual.pdf

Power Liftgate Initialization - General Procedures - 2015 Edge Workshop Manual.pdf

Rear Gate Trunk Module (RGTM) Fuse F10 - 2015 Edge Wiring Diagram.pdf

Body Control Module - Fuse Location Illustration - 2015 Edge Wiring Diagram.pdf

Body Control Module - Fuse-to-Circuit(s) Legend - 2015 Edge Wiring Diagram.pdf

Rear Gate Trunk Module (RGTM) - Removal and Installation - 2015 Edge Workshop Manual.pdf



Good luck!



  • Like 2
Link to comment
Share on other sites

18 hours ago, Haz said:

The following chart includes 2015 Edge modules and their As-Built line-data addresses...



Do you have any additional information on the BCM Ambient lighting calibration?



I don't recall reading this before.

Link to comment
Share on other sites

According to the Cyanlabs As-Built Database, Ambient Lighting configurations in the Body Control Module (BCM) are...

  • Ambient Light Sensor Present Configuration
  • Ambient Light Sensor Type Configuration
  • Ambient Lighting Configuration
  • Ambient Delay Configuration


Additionally, their database shows Ambient Lighting-related configurations in the APIM/SYNC Module of...

  • Ambient Light (AL)
  • Ambient Light Type (ALT)



The below-attached 2016 Edge Workshop Manual section provides useful Ambient Lighting info, however, the Cyanlabs database presents As-Built values in granular detail.



Interior Lighting - System Operation and Component Description - 2016 Edge Workshop Manual.pdf



Good luck!



Edited by Haz
  • Like 1
Link to comment
