GA_RR Posted December 28, 2009 Report Share Posted December 28, 2009 I know this must be posted on here somewhere but I've spent the better part of an hour now searching this forum and online and can't find what I'm looking for. Can anyone identify the wire colors for the speakers coming out of an '08 Ford Edge SEL regular head unit? I'm trying to get a line out converter installed right now for a subwoofer I'm adding to my wife's Edge. TIA Quote Link to comment Share on other sites More sharing options...
Lex Talionis Posted December 29, 2009 Report Share Posted December 29, 2009 I can't "identify" them, but if you look in my gallery, you might be able to see the colors as I have some speaker install photos there Quote Link to comment Share on other sites More sharing options...

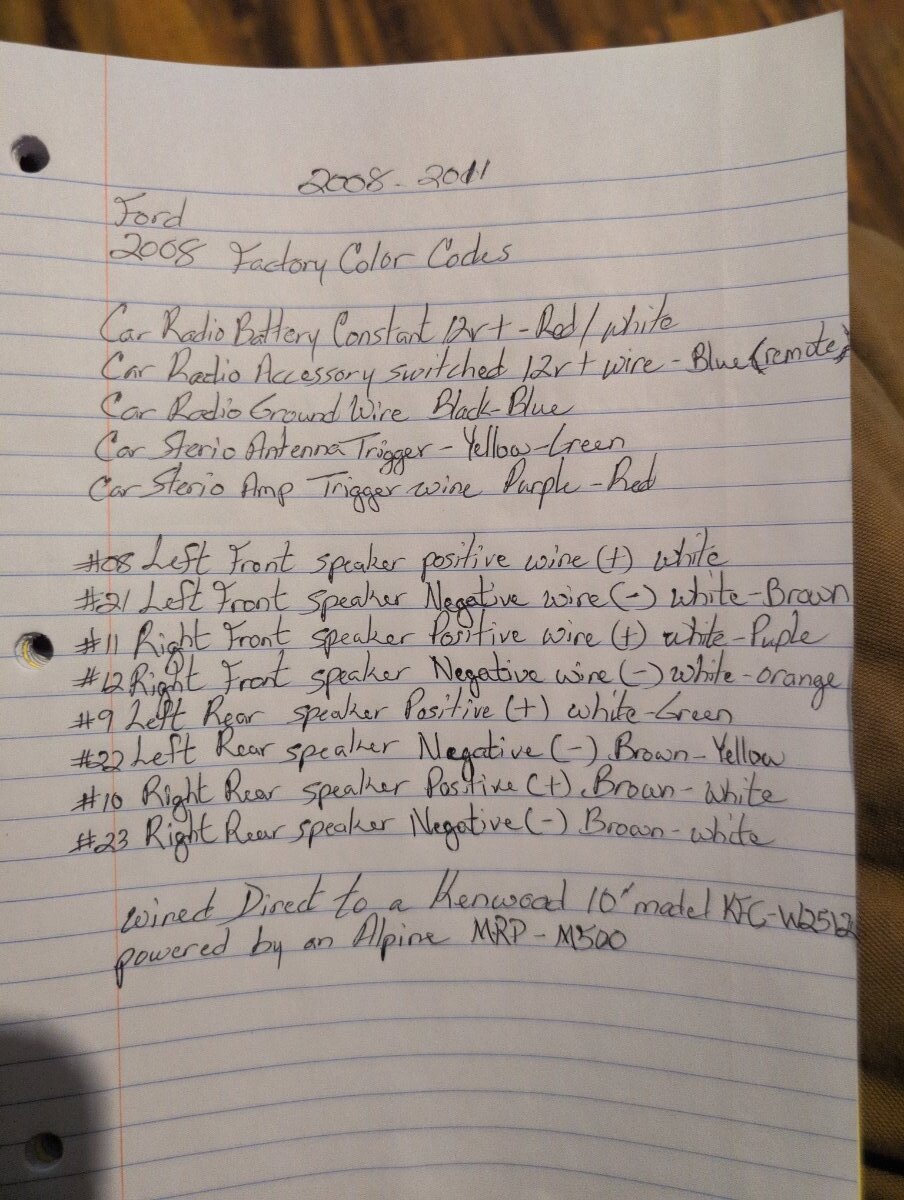

GA_RR Posted January 17, 2010 Author Report Share Posted January 17, 2010 Just in case other were searching, I thought I'd share the answer to my own question. Here are the speaker wire colors on the back of an '08 with the standard radio. Car Radio Battery Constant 12v+ Wire: White/Red #02 Car Radio Accessory Switched 12v+ Wire: Blue (remote-out) Car Radio Ground Wire: Black/Blue Car Stereo Antenna Trigger: Yellow/Green Car Stereo Amp Trigger Wire: Purple/Red --- #08 Left Front Speaker Positive Wire (+): White #21 Left Front Speaker Negative Wire (-): White/Brown --- #11 Right Front Speaker Positive Wire (+): White/Purple #12 Right Front Speaker Negative Wire (-): White/Orange --- #09 Left Rear Speaker Positive Wire (+): White/Green #22 Left Rear Speaker Negative Wire (-): Brown/Yellow --- #10 Right Rear Speaker Positive Wire (+): Brown/White #23 Right Rear Speaker Negative Wire (-): Brown/Blue Here's a picture of the finished product as well. It's a Kenwood 10" model KFC-W2512 powered by an Alpine MRP-M500. I definitely didn't get the amount of airspace the sub is supposed to have in my enclosure (it has approx .5cu ft) but I'm more than happy with the sound so far and the wife's happy I didn't take up any of the stroller/baby stuff space Quote Link to comment Share on other sites More sharing options...
kempie Posted January 18, 2010 Report Share Posted January 18, 2010 (edited) Just in case other were searching, I thought I'd share the answer to my own question. Here are the speaker wire colors on the back of an '08 with the standard radio. Car Radio Battery Constant 12v+ Wire: White/Red #02 Car Radio Accessory Switched 12v+ Wire: Blue (remote-out) Car Radio Ground Wire: Black/Blue Car Stereo Antenna Trigger: Yellow/Green Car Stereo Amp Trigger Wire: Purple/Red --- #08 Left Front Speaker Positive Wire (+): White #21 Left Front Speaker Negative Wire (-): White/Brown --- #11 Right Front Speaker Positive Wire (+): White/Purple #12 Right Front Speaker Negative Wire (-): White/Orange --- #09 Left Rear Speaker Positive Wire (+): White/Green #22 Left Rear Speaker Negative Wire (-): Brown/Yellow --- #10 Right Rear Speaker Positive Wire (+): Brown/White #23 Right Rear Speaker Negative Wire (-): Brown/Blue Just to let you all know this is the same colored wires for the 07 MKX. What kind of veh. & yr. do you have? Edited January 18, 2010 by kempie Quote Link to comment Share on other sites More sharing options...
swroll Posted April 26, 2010 Report Share Posted April 26, 2010 I'm adding a powered sub and component speakers (front) to my wife's 2010 SEL. Any ideas or thoughts on install? Also, I found the factory premium sub harness but was wondering if anyone has used it for aftermarket subs. Any luck with LOC's? Quote Link to comment Share on other sites More sharing options...
MacLeod Posted May 3, 2010 Report Share Posted May 3, 2010 Here's a picture of the finished product as well. It's a Kenwood 10" model KFC-W2512 powered by an Alpine MRP-M500. I definitely didn't get the amount of airspace the sub is supposed to have in my enclosure (it has approx .5cu ft) but I'm more than happy with the sound so far and the wife's happy I didn't take up any of the stroller/baby stuff space Thats very nice and exactly what Im after. Is that an aftermarket enclosure like a Qform or did you build that yourself? Quote Link to comment Share on other sites More sharing options...
GA_RR Posted May 3, 2010 Author Report Share Posted May 3, 2010 Thats very nice and exactly what Im after. Is that an aftermarket enclosure like a Qform or did you build that yourself? Thanks. It's a custom build I did myself. Wish I had taken some pictures before the installation . The shape of the box is basically what you see except that the bezel on the outside is larger than the box itself so that it would lap over the plastic. Quote Link to comment Share on other sites More sharing options...
Nexus Posted September 13, 2013 Report Share Posted September 13, 2013 does anyone know what the colors are like for the 2013 models? I would assume white is positive and black/white(stripe) is negative? (LF speakers) Quote Link to comment Share on other sites More sharing options...
Philip White Posted April 23, 2015 Report Share Posted April 23, 2015 I'm adding a powered sub and component speakers (front) to my wife's 2010 SEL. Any ideas or thoughts on install? Also, I found the factory premium sub harness but was wondering if anyone has used it for aftermarket subs. Any luck with LOC's? I see this question was never answered in 2010 and I am wondering the same thing in 2015 as I try to wire my Edge with aftermarket Sub. Any answer would be appreciated. Thank you. Quote Link to comment Share on other sites More sharing options...

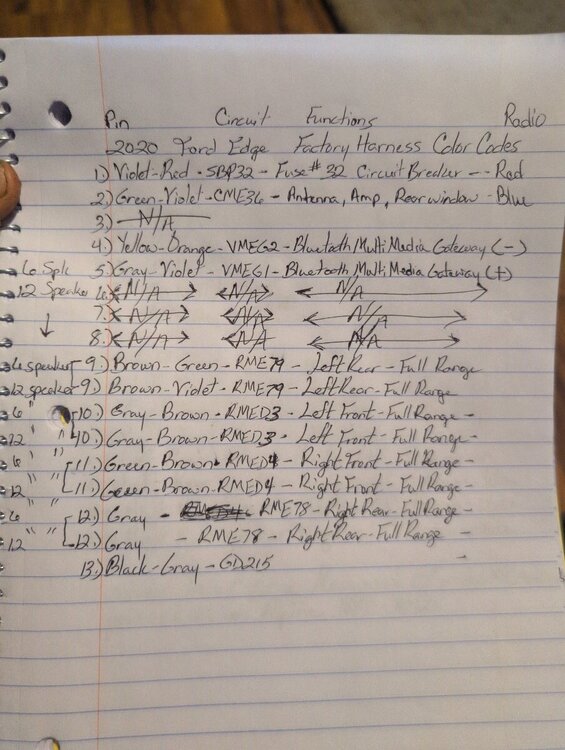

Booker Posted April 30, 2023 Report Share Posted April 30, 2023 Is this the same wire on 2019 Ford edge sel Quote Link to comment Share on other sites More sharing options...
Haz Posted May 1, 2023 Report Share Posted May 1, 2023 Welcome to the Forum, Booker ! Document download links> 6-Speaker Audio Wiring Diagram - 2019 Edge.pdf 9-Speaker Audio Wiring Diagram #1 - 2019 Edge.pdf 9-Speaker Audio Wiring Diagram #2 - 2019 Edge.pdf 12-Speaker Audio Wiring Diagram #1 - 2019 Edge.pdf 12-Speaker Audio Wiring Diagram #2 - 2019 Edge.pdf 12-Speaker Audio Wiring Diagram #3 - 2019 Edge.pdf 12-Speaker Audio Wiring Diagram #4 - 2019 Edge.pdf AUDIO FRONT CONTROL MODULE (ACM) - Connector C240A Details - 2019 Edge.pdf AUDIO FRONT CONTROL MODULE (ACM) - Connector C240A Location - 2019 Edge.pdf Good luck! 2 Quote Link to comment Share on other sites More sharing options...
Hadi Ghaddar Posted September 19, 2023 Report Share Posted September 19, 2023 On 1/17/2010 at 3:28 PM, GA_RR said: Just in case other were searching, I thought I'd share the answer to my own question. Here are the speaker wire colors on the back of an '08 with the standard radio. Car Radio Battery Constant 12v+ Wire: White/Red #02 Car Radio Accessory Switched 12v+ Wire: Blue (remote-out) Car Radio Ground Wire: Black/Blue Car Stereo Antenna Trigger: Yellow/Green Car Stereo Amp Trigger Wire: Purple/Red --- #08 Left Front Speaker Positive Wire (+): White #21 Left Front Speaker Negative Wire (-): White/Brown --- #11 Right Front Speaker Positive Wire (+): White/Purple #12 Right Front Speaker Negative Wire (-): White/Orange --- #09 Left Rear Speaker Positive Wire (+): White/Green #22 Left Rear Speaker Negative Wire (-): Brown/Yellow --- #10 Right Rear Speaker Positive Wire (+): Brown/White #23 Right Rear Speaker Negative Wire (-): Brown/Blue Here's a picture of the finished product as well. It's a Kenwood 10" model KFC-W2512 powered by an Alpine MRP-M500. I definitely didn't get the amount of airspace the sub is supposed to have in my enclosure (it has approx .5cu ft) but I'm more than happy with the sound so far and the wife's happy I didn't take up any of the stroller/baby stuff space are these the same for the 2014 ford edge SEL? Quote Link to comment Share on other sites More sharing options...
