ccutaia1 Posted September 25, 2021 Report Share Posted September 25, 2021 Hi, I want to put in a mirror power tap for my 2018 Edge and need to remove the adaptive cruise/lane keep camera shroud cover. Can someone show me the way???? Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted September 25, 2021 Report Share Posted September 25, 2021 Been discussed before. Simple job. Quote Link to comment Share on other sites More sharing options...
ccutaia1 Posted September 25, 2021 Author Report Share Posted September 25, 2021 (edited) It is not the same shroud as a 2018 Edge, the camera area, lower shroud needs to come off and it is not the same as the 2020 Edge or the one in the Raptor video. Edited September 25, 2021 by ccutaia1 Quote Link to comment Share on other sites More sharing options...

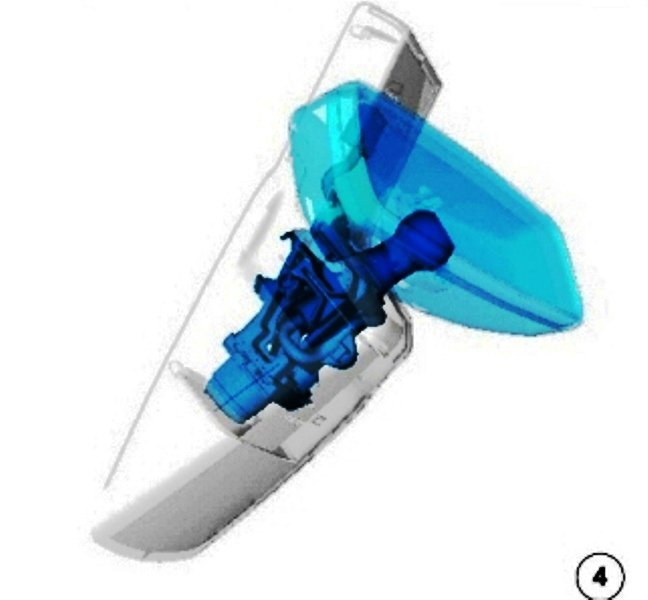

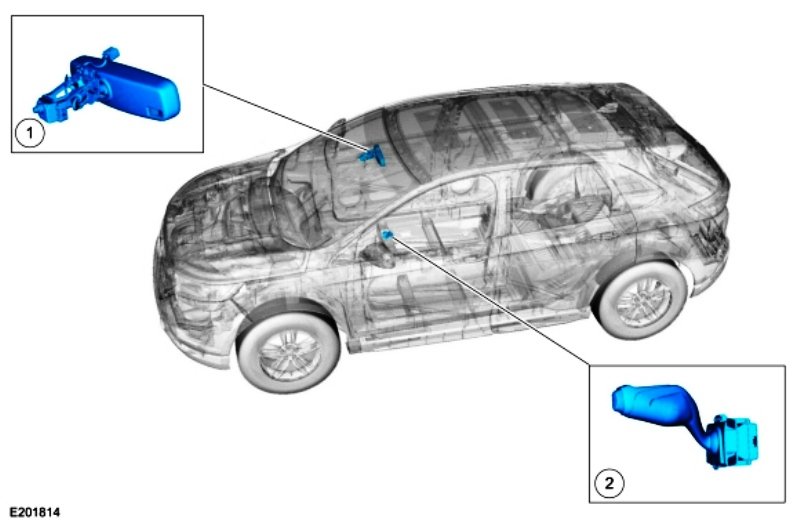

Haz Posted September 26, 2021 Report Share Posted September 26, 2021 (edited) The 2018 Edge Workshop Manual provides the following illustrations relating to Item 1, the Image Processing Module A (IPMA)... ...showing this cutaway illustration of the IPMA and the shroud... ...and this illustration showing directional arrows for removal of the two shroud components... ...and this illustration of the underlying IPMA windshield heating element with the glass-attached mirror mount... Good luck! Edited September 26, 2021 by Haz Quote Link to comment Share on other sites More sharing options...
ccutaia1 Posted September 26, 2021 Author Report Share Posted September 26, 2021 Thanks for the illustration but I need to know how it unclips, removes from the hardware holding the shroud in place. Quote Link to comment Share on other sites More sharing options...

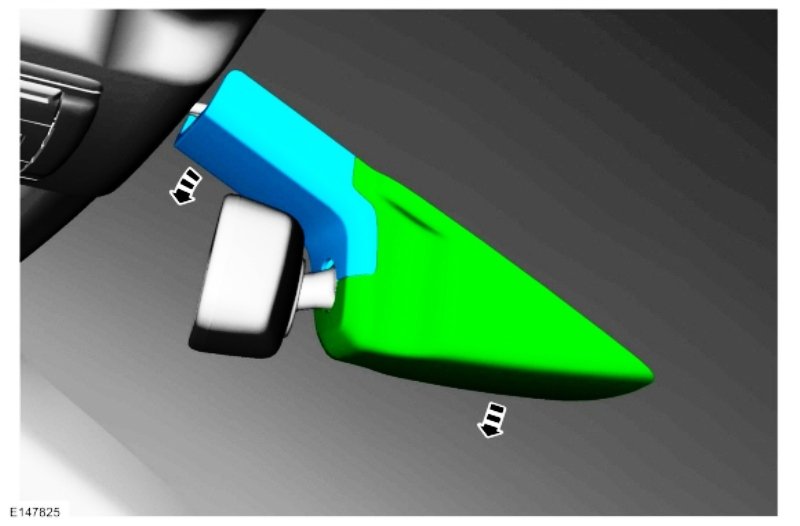

enigma-2 Posted September 27, 2021 Report Share Posted September 27, 2021 See pix 3 in the set Haz provided. To remove, just pull it off by hand. I believe that the green shaded part comes first. To replace, it clips back in. (From 150 forum). As far as plugging in the Mirror Tap, pin #1 is black ( +12 volts) and pin #4 is green (ground). Quote Link to comment Share on other sites More sharing options...
ccutaia1 Posted September 28, 2021 Author Report Share Posted September 28, 2021 It is not as easy as just pulling it off. The 1st time I did it I pulled the whole setup off the window camera and all. There is a sequence to removing it. Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted September 29, 2021 Report Share Posted September 29, 2021 Discussed here (Focus Forum). https://www.focusfanatics.com/threads/remove-rearview-mirror-from-titanium-with-tech-package.807653/ Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted September 29, 2021 Report Share Posted September 29, 2021 Does this work? Quote Link to comment Share on other sites More sharing options...
jmr061 Posted September 29, 2021 Report Share Posted September 29, 2021 I have a 16 which I am going to guess will be the same as an 18 and it doesn't have the nice pop in clips like the 19. Frankly it was a pain to put back on after taking it off. Its a piss poor design. Quote Link to comment Share on other sites More sharing options...
ccutaia1 Posted September 29, 2021 Author Report Share Posted September 29, 2021 I just need removal instructions on what looks like a 16-18 Edge with lane keep option. Quote Link to comment Share on other sites More sharing options...
ccutaia1 Posted October 8, 2021 Author Report Share Posted October 8, 2021 Here is what I have been looking for. Seem the Explorer has the same setup: Quote Link to comment Share on other sites More sharing options...
