bhamraS97 Posted November 18, 2023 Report Share Posted November 18, 2023 Hi All, There is no rear tweeter wire on my rear left driver side door. I see wire going through the B pillar but I don't see any pigtail or wire going to the tweeter. The tweeter is there but no wire. If say there is no wire coming for tweeter could I use a T wire connector and use the Circuit VME39 and RME39 to run a wire to tweeter? Please any advise? 1 Quote Link to comment Share on other sites More sharing options...
dabangsta Posted November 18, 2023 Report Share Posted November 18, 2023 What model and radio (SE 6 speaker, SEL SYNC 3 and Premium Audio, Titanium/Sport with 12 speaker Sony w sub)? Must at least be 9 speaker as 6 speaker setup only has tweeters in the front. I thought it it was like many other Fords and the wiring for them came off the lower speakers, but doesn't seem to be the case, the woofer and tweeter both are wired all the way separately so that is weird. 1 Quote Link to comment Share on other sites More sharing options...

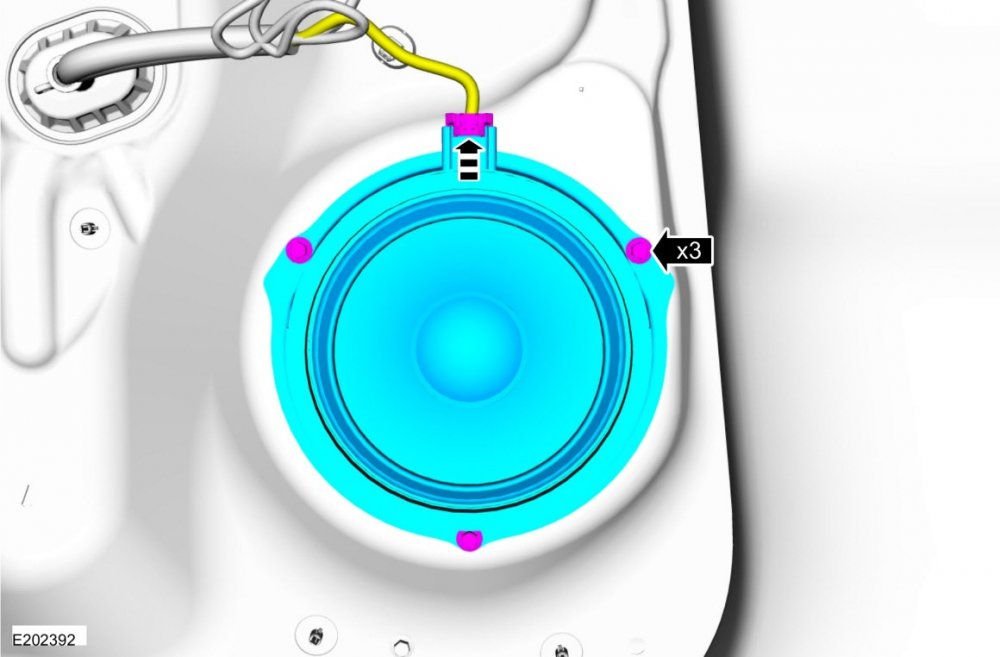

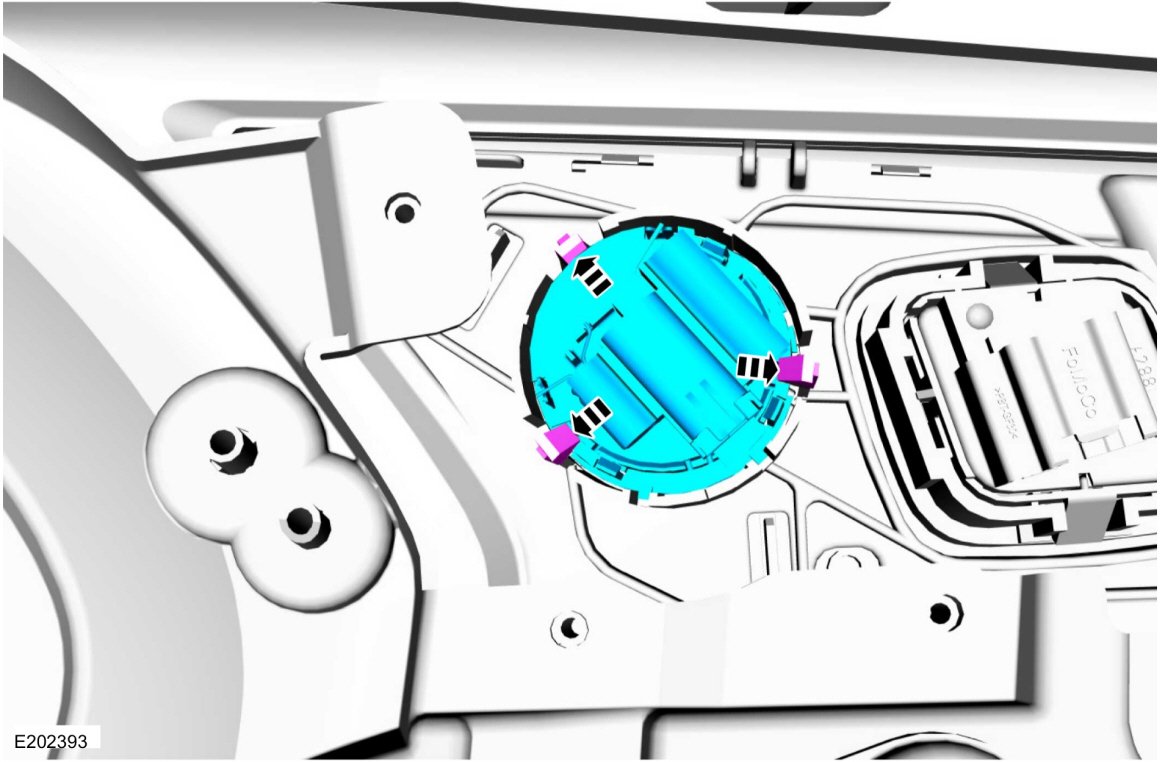

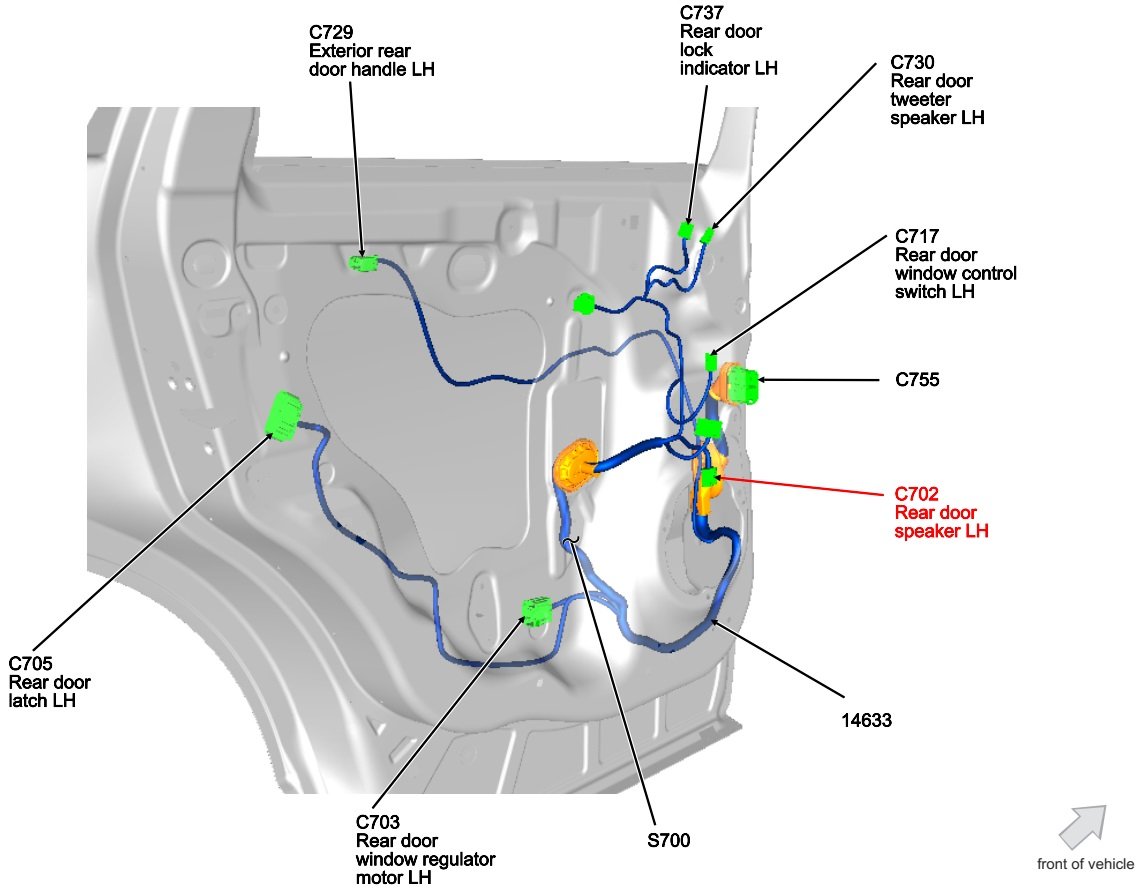

Haz Posted November 18, 2023 Report Share Posted November 18, 2023 (edited) You are both correct... Document download links> Rear Door Speaker Wiring - 2018 Edge.pdf Rear Door Speaker Wiring - Connector Locations - 2018 Edge.pdf Rear Door Speaker LH - Removal and Installation - 2018 Edge Workshop Manual.pdf Rear Door Tweeter Speaker - Removal and Installation - 2018 Edge Workshop Manual.pdf Wiring Diagram Connector Locations Rear Door Speaker Rear Door Tweeter Good luck! Edited November 18, 2023 by Haz 2 Quote Link to comment Share on other sites More sharing options...
bhamraS97 Posted November 18, 2023 Author Report Share Posted November 18, 2023 3 hours ago, dabangsta said: What model and radio (SE 6 speaker, SEL SYNC 3 and Premium Audio, Titanium/Sport with 12 speaker Sony w sub)? Must at least be 9 speaker as 6 speaker setup only has tweeters in the front. I thought it it was like many other Fords and the wiring for them came off the lower speakers, but doesn't seem to be the case, the woofer and tweeter both are wired all the way separately so that is weird. Mine is the SEL Sync 3 with 9 speakers. To overcome the muddy sound on the left side I put it aftermarket speaker (https://www.crutchfield.ca/p_108R6532EM/Infinity-Reference-REF-6532ex.html) and disconnected the right side tweeter for even sound, but oblivious the bass from factory speakers were better so I wanna go back to it but want to fix the tweeter wiring first. Quote Link to comment Share on other sites More sharing options...
bhamraS97 Posted November 19, 2023 Author Report Share Posted November 19, 2023 Hi @Haz, thank you! One clarification, from the wiring diagram, the VME39 circuit is going out from the C702 connector to C730 connector? Quote Link to comment Share on other sites More sharing options...
Haz Posted November 19, 2023 Report Share Posted November 19, 2023 Yes, as the connector details included in your original post show, Pins 1 & 2 convey the positive (+) speaker lead and Pins 3 & 4 convey the negative (-) speaker lead to the door speaker (woofer) and to the door tweeter, loosely illustrated by this photo of the backside of the door speaker from FordParts.com... ...with the paired 1/2 & 3/4 Pins connecting to the door speaker's positive (+) & negative (-) wires off the connector's L-shaped lugs. Good luck! 2 Quote Link to comment Share on other sites More sharing options...
Haz Posted November 19, 2023 Report Share Posted November 19, 2023 Additional document download links> Rear Door Trim Panel - Removal and Installation - 2018 Edge Workshop Manual.pdf Rear Door Window Control Switch - Removal and Installation - 2018 Edge Workshop Manual.pdf Good luck! 2 Quote Link to comment Share on other sites More sharing options...
enigma-2 Posted December 26, 2023 Report Share Posted December 26, 2023 On 11/18/2023 at 6:59 PM, bhamraS97 said: so I wanna go back to it but want to fix the tweeter wiring first. I'd try connecting the tweeter to the woofer through the use of jumpers with alligator clips; as a test to see if it's just a missing harness. If it does, it's just the harness. If it doesn't, it's either the tweeter or the crossover on the woofer. There has to be a reason the harness was removed, it would never have left the factory without it. Did you buy the car used? Quote Link to comment Share on other sites More sharing options...
