Rrands1 Posted September 30, 2023 Report Share Posted September 30, 2023 (edited) I have a 2016 AWD SEL, and will be towing and want to monitor my transmission temp. I don’t want to hook a pc up to it for long term drives, and was wondering if there is a good way to do that via the obd port, adapter and an app for my iPhone? (Or what is best way?) secondly, I changed out the tranny fluid, and stupidly did not measure the drained fluid. I am having trouble seeing how much fluid is on the stick. I don’t want to overfill it, but any suggestions on reading that thing? The fluid seems so clear I can’t tell where it stops (or possibly it’s so low there is none on it, but I did put about 6 quarts back in, which seems to be more than most get on a drain and fill?) thanks for any help! Edited September 30, 2023 by Rrands1 Quote Link to comment Share on other sites More sharing options...
Rrands1 Posted September 30, 2023 Author Report Share Posted September 30, 2023 Have had two different occasions now where the “AWD disabled” message comes on the screen - goes off after a bit more driving, but if I am reading right, something is overheating. Anyone know what that might be? Quote Link to comment Share on other sites More sharing options...
dabangsta Posted September 30, 2023 Report Share Posted September 30, 2023 What year model and engine? Some years and regional packages have a temperature sender in the PTU and/or RDU. My 2012 Fusion has neither, I think it senses slip in the RDU and throws that message. Quote Link to comment Share on other sites More sharing options...
Rrands1 Posted September 30, 2023 Author Report Share Posted September 30, 2023 Sorry! It’s a 2016 SEL AWD with the 3.5 Quote Link to comment Share on other sites More sharing options...
1004ron Posted September 30, 2023 Report Share Posted September 30, 2023 15 minutes ago, Rrands1 said: Sorry! It’s a 2016 SEL AWD with the 3.5 How about adding that to your signature - https://www.fordedgeforum.com/settings/signature/ Its likely the temp sensor in the PTU which is still rotating with AWD disabled. Have you been maintaining the PTU - oil change frequency? Quote Link to comment Share on other sites More sharing options...
Rrands1 Posted September 30, 2023 Author Report Share Posted September 30, 2023 I have only had it for 9k miles (it has 39k on it now), but I changed it once recently. Whoever had it before must have for it too, as the fluid looked pretty good. So does it measure places besides the PTU? Quote Link to comment Share on other sites More sharing options...
1004ron Posted September 30, 2023 Report Share Posted September 30, 2023 (edited) How about adding that to your signature - https://www.fordedgeforum.com/settings/signature/ Best get the stored error codes read and go from there. There's a temp sensor on the PTU and doubt that there's one on the RDU. Edited September 30, 2023 by 1004ron 1 Quote Link to comment Share on other sites More sharing options...
ebank Posted September 30, 2023 Report Share Posted September 30, 2023 (edited) This app and a appropriate OBDII scanner should be able to help you monitor your transmission temps, https://apps.apple.com/us/app/torque-car-pro-obd2-scanner/id1665043651 I use the app on android so YMMV. Edited September 30, 2023 by ebank Quote Link to comment Share on other sites More sharing options...
Haz Posted September 30, 2023 Report Share Posted September 30, 2023 The following sections from the 2016 Edge Workshop Manual describe the components and operation of the AWD system, as well as provide extensive diagnostic procedures guided by Diagnostic Trouble Codes (DTCs), in most cases. If your efforts progress to applying specific Pinpoint Test routines requiring wiring diagrams and electrical connector circuit details and locations, I can provide you those informational resources. Document download links> Four-Wheel Drive Systems - System Operation and Component Description - 2016 Edge Workshop Manual.pdf Transfer Case 3.5L Duratec - Power Transfer Unit (PTU) Overview - 2016 Edge Workshop Manual.pdf Transfer Case 3.5L Duratec - Transfer Case Cooler - Removal and Installation - 2016 Edge Workshop Manual.pdf Transfer Case - Diagnosis and Testing - 2016 Edge Workshop Manual.pdf Four-Wheel Drive Systems - Active Torque Coupling Configuration - 2016 Edge Workshop Manual.pdf Four-Wheel Drive Systems - Diagnosis and Testing - 2016 Edge Workshop Manual.pdf All Wheel Drive (AWD) Module - Removal and Installation - 2016 Edge Workshop Manual.pdf Good luck! 3 Quote Link to comment Share on other sites More sharing options...
Cerberus Posted October 1, 2023 Report Share Posted October 1, 2023 (edited) https://www.obdlink.com/products/obdlink-mxp/ this is the tool i use to monitor data streams from various systems on my 16 Sport. assuming (which i hate to do) things are the same between mine and yours, transmission fluid temperature and PTU fluid temps are easy to monitor, RDU has no sensor, just a coil to engage the driveshaft to the rear axle and 6 qts of fluid may be way too much for the transmission for a drain and fill.. Edited October 1, 2023 by Cerberus 1 Quote Link to comment Share on other sites More sharing options...

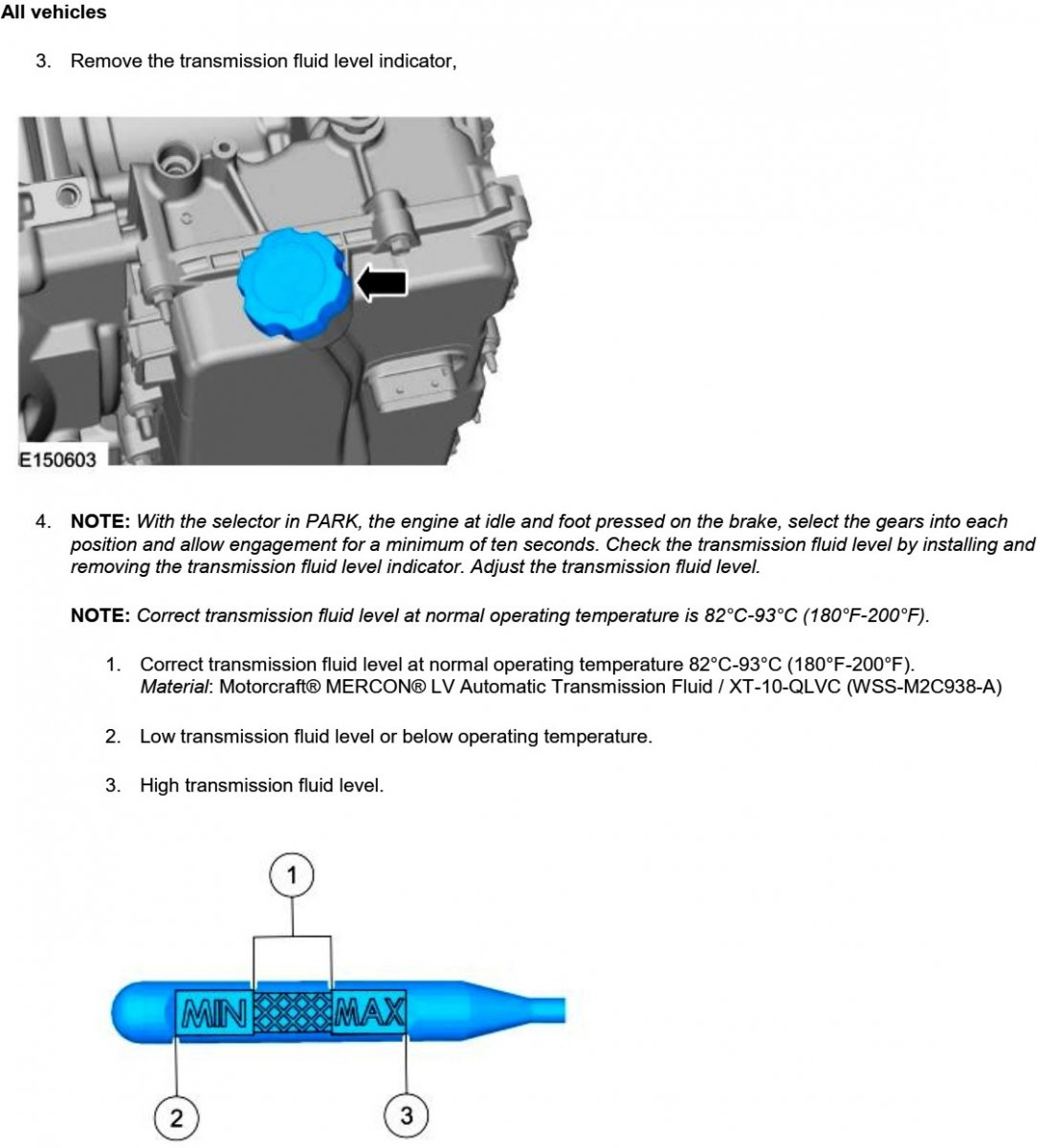

Haz Posted October 1, 2023 Report Share Posted October 1, 2023 From the 2016 Edge Workshop Manual, relating to the 6F50 6-Speed Auto Trans paired with the 3.5L Duratec (or the 6F55 paired with the 2.7L EcoBoost)... NOTE: If the transmission was removed and disassembled, fill the transmission with 6.2L (6.5 qt) of clean transmission fluid. If the main control cover was removed, fill the transmission with 4.3L (4.5 qt) of clean transmission fluid. Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) Document download links> Transmission Fluid Drain and Refill - 6F50-6F55 6-Speed Auto Trans - 2016 Edge Workshop Manual.pdf Transmission Fluid Level Check - 6F50-6F55 6-Speed Auto Trans - 2016 Edge Workshop Manual.pdf Good luck! 1 Quote Link to comment Share on other sites More sharing options...
Rrands1 Posted October 1, 2023 Author Report Share Posted October 1, 2023 (edited) 47 minutes ago, Haz said: From the 2016 Edge Workshop Manual, relating to the 6F50 6-Speed Auto Trans paired with the 3.5L Duratec (or the 6F55 paired with the 2.7L EcoBoost)... NOTE: If the transmission was removed and disassembled, fill the transmission with 6.2L (6.5 qt) of clean transmission fluid. If the main control cover was removed, fill the transmission with 4.3L (4.5 qt) of clean transmission fluid. Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A Good luck! @Haz - as always, you da man with providing helpful info - I appreciate it! This is super-useful for how to do it, and how much I should expect to replace - my main issue now though is that I can't physically tell on the dipstick where the fluid is (the new stuff is so clear) - any tips/tricks on that? Edited October 1, 2023 by 1004ron No need to quote EVERYTHING Quote Link to comment Share on other sites More sharing options...
Haz Posted October 1, 2023 Report Share Posted October 1, 2023 Wipe the entire dipstick dry, insert & withdraw it, view it using an off-angle light source that may highlight the transmission fluid's sheen, and if you're old like me -- reading glasses. Good luck! 1 Quote Link to comment Share on other sites More sharing options...
