Here is some pictures and details of my install of a 'raptor' grille on my 2015 Edge Sport. Click this link to go to my build log:



Process:

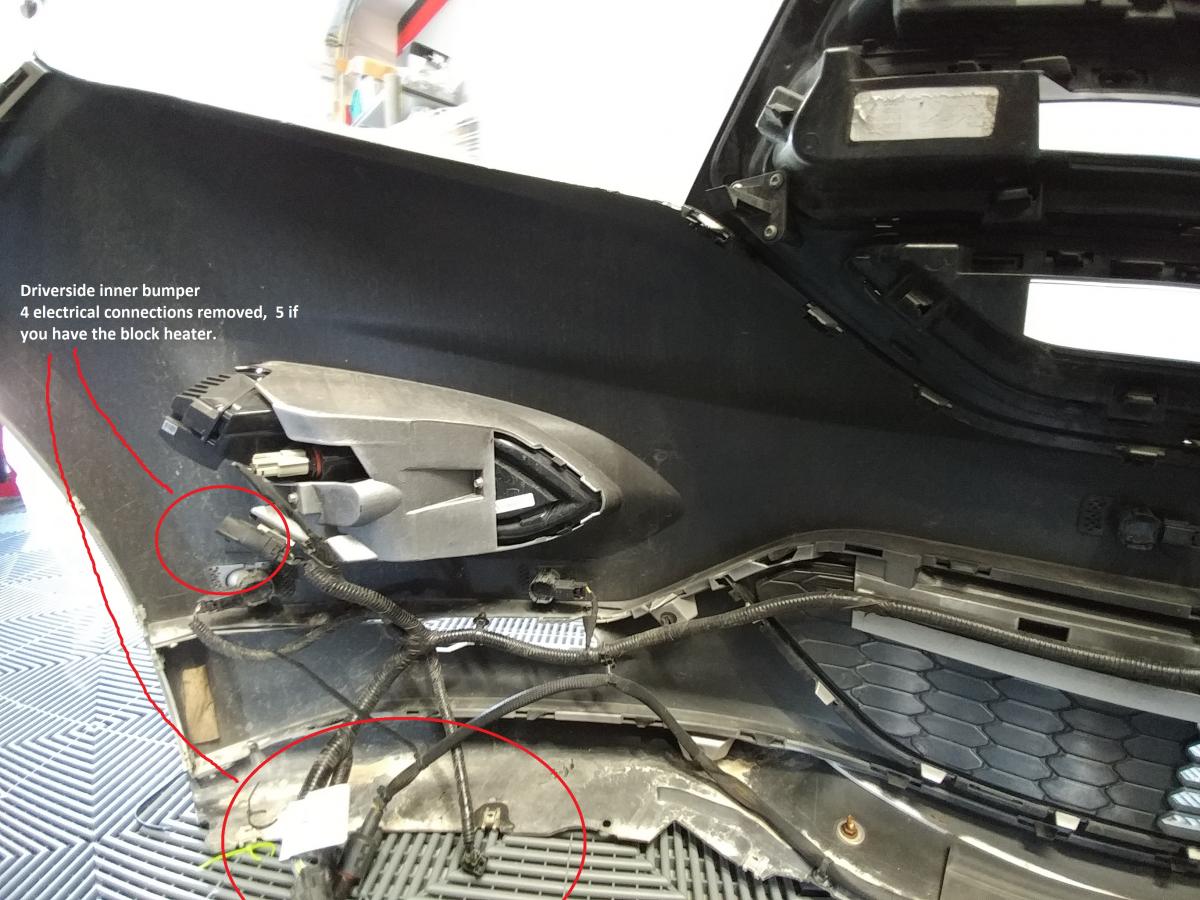

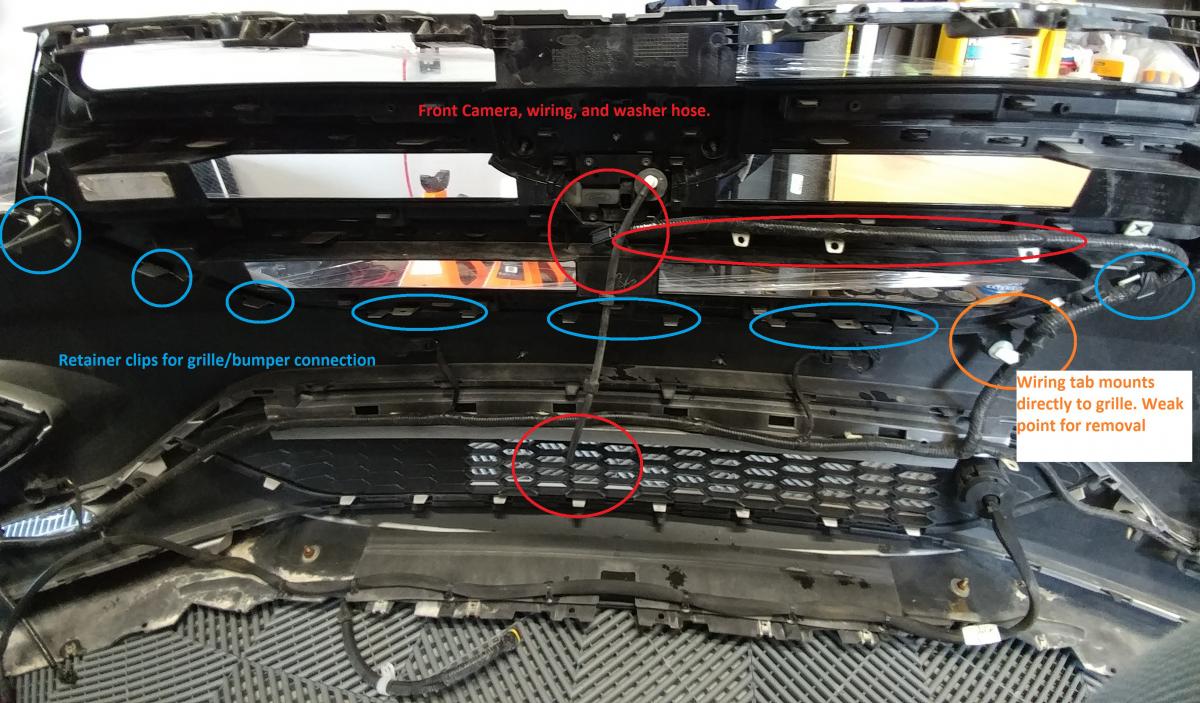

Jack up the car, remove the battery, headlight housings, and front wheels. Then start removing all the fasteners on the bottom of the bumper. Remove the fender liner fasteners. Pull the fender liners, disconnect the electrical connections on the driver side of the bumper. 5 connectors if you have the engine block heater, 4 if you don't.  Remove the push pins on the intake cover. Detach the bumper by removing the 3 bolts on each side of the bumper where it meets the chassis. Remove the bolts holding the grille to the upper radiator/hood supports. Then carefully move the bumper. If you have the front view camera, you have to disconnect the washer and electrical connector before the bumper, grille, and chassis can be separated. Once you've got the bumper off the car, have fun with the clips that hold the grille onto the bumper. One clip is near a mounting tab for the wiring harness, be careful otherwise you may snap the grille at that point.  There are 2 brackets screwed onto the grille that need to be transferred to the new grille

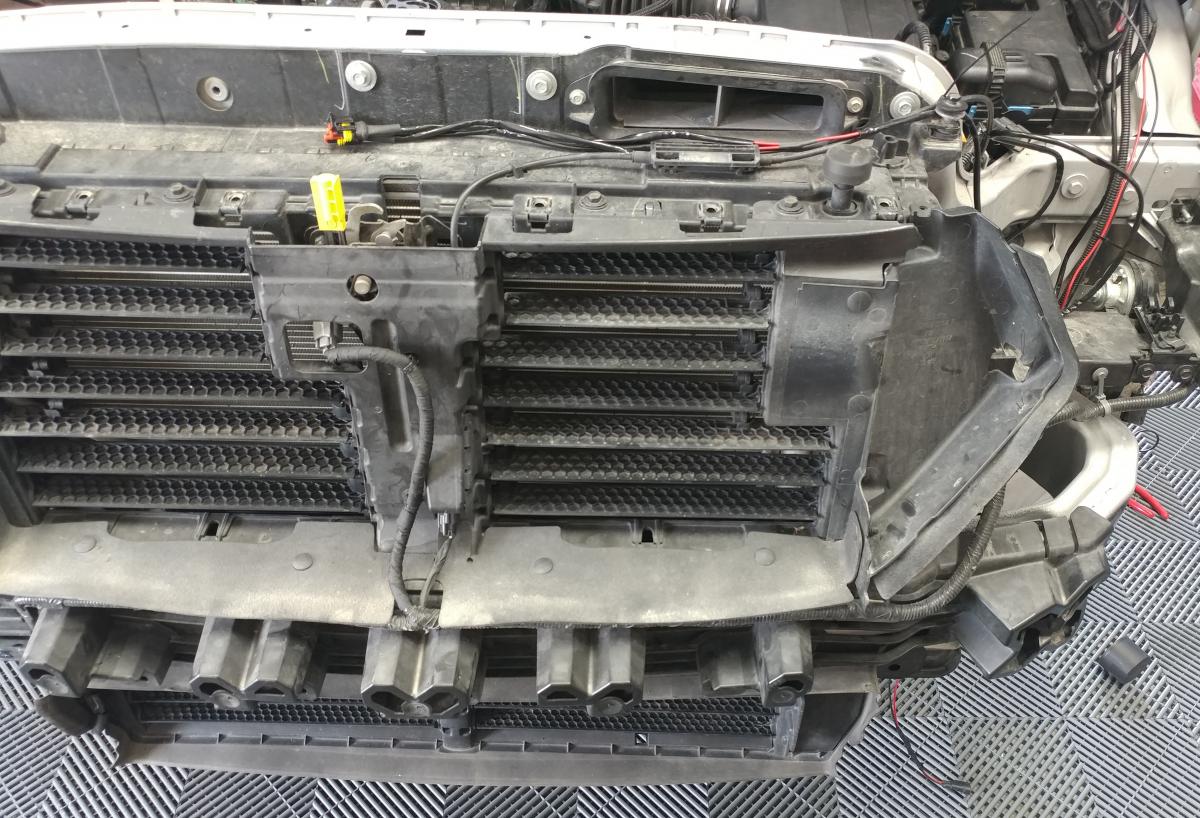

The new grille snaps right into place, you can use the handle end of pliers to push on either side of the mounting tabs until you hear them click in. You can either remove the front camera and washer completely, or re mount them. I removed the washer, and remounted the camera between the O and the R. The view is obstructed, but still usable. The harness needs to be moved so it is less visible through the grille. It needs to slot in between the grille and bumper bar. You can then wire the lights on the grille if you wish. I ran mine off an ignition switched control panel I have. See this link:


Got the grille from ebay, seller: autoparts-selection

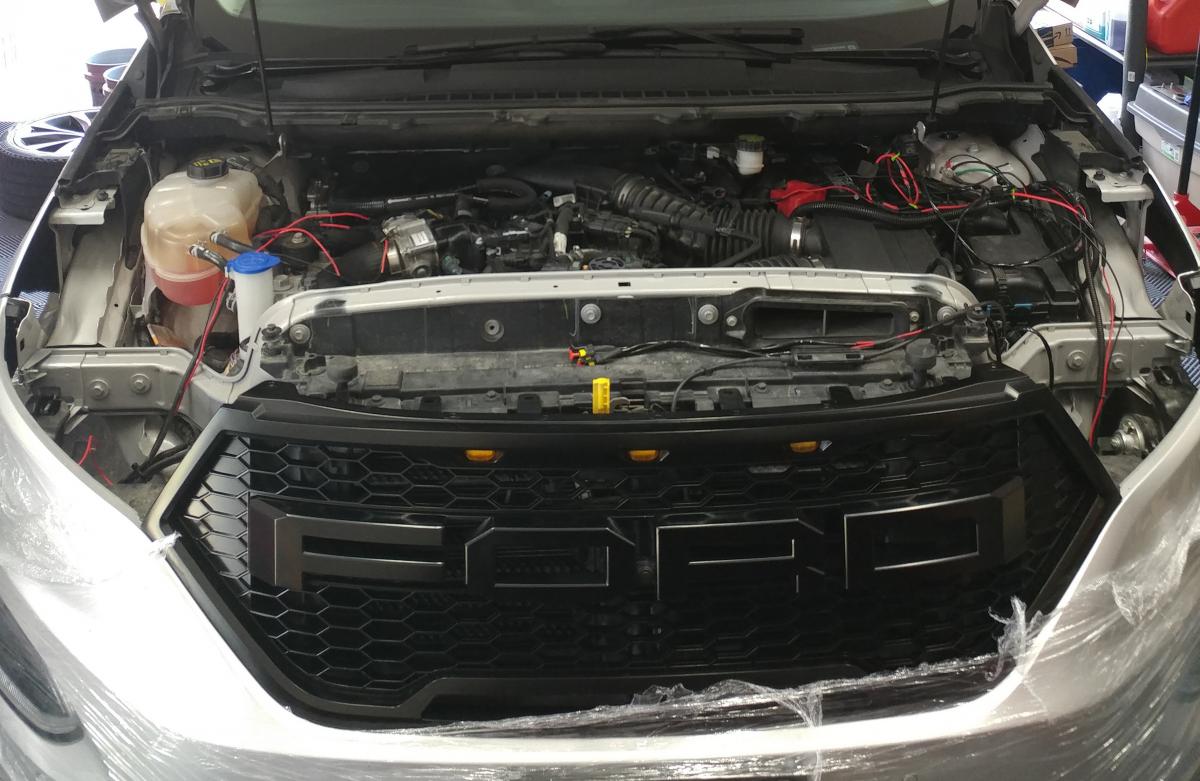

Attached File  DSInner.jpg   145.26KB   22 downloads

Attached File  grille washer camera wire_edited.jpg   148.04KB   15 downloads

Attached File  camera mount.jpg   172.06KB   11 downloads

Attached File  wire washer_edited.jpg   136.02KB   12 downloads

Attached File  Bar wire_edited.jpg   192.72KB   8 downloads

Attached File  20170814_222531_edited.jpg   168.09KB   11 downloads

Attached File  temp_edited.jpg   125.82KB   14 downloads

Attached File  20170816_182016-1.jpg   117.74KB   23 downloads
