First, I regret that I did not look at the compatibility of the specific part number to your 2015 Edge Titanium, which the review website, when configured for 2015 Edge, says is not compatible. Ford's online Accessories catalog shows the 8U5Z-9C268-B Locking Fuel Plug as fitting only 2010-2014 Edge... FITS THESE VEHICLES Ford Edge 2010-2014 Ford Escape Hybrid 2010-2012 Ford Escape 2009-2012 Ford Expedition 2010-2017 Ford Explorer 2008-2019 Ford F-150 2009-2014 Ford Fiesta 2011-2019 Ford Flex 2009-2019 Ford Focus 2012-2018 Ford Fusion 2010-2012 Ford Mustang 2010-2014 Ford Taurus 2010-2019 Lincoln MKS 2009-2016 Lincoln MKT 2010-2018 Lincoln MKX 2011-2014 Lincoln MKZ 2010-2011 Lincoln Navigator 2010-2017 Similarly, Ford's online Parts catalog configured for 2015 Edge indicates the 8U5Z-9C268-B Locking Fuel Plug... This part does not match your vehicle. Because you personally entered the order online, and the packaging states "This package cannot be returned if opened", I don't expect you could obtain a refund. Once again, I regret not having previously done this research. Good luck!

With 82% of reviewers giving it Five Stars, you will very likely be satisfied. Sorry to learn about the harassment you have been required to endure. Good luck!

Body panel gap & assembly dimensions and adjustment procedures are provided via these PDF download links to relevant sections of the 2009 Edge-MKX Workshop Manual... Good luck! Body Repairs Description and Operation - 2009 Edge-MKX Workshop Manual.pdf Body Closures General Procedures - Door Alignment Front - 2009 Edge-MKX Workshop Manual.pdf Body Closures General Procedures - Striker Adjustment - 2009 Edge-MKX Workshop Manual.pdf Front Fender Removal and Installation - 2009 Edge-MKX Workshop Manual.pdf

Per the below images, the latching tab is on the left side of the cover-plate and its right side fixed-tab engages in the slot on the assembly housing's right side... Good luck!

You may notice that the Blower Motor Removal and Installation workshop manual section does not mention removing the Glove Compartment Door, but only the Insulator Panel to access the Blower Motor. I included the Glove Compartment Door Removal workshop manual section because that action step was obscured in macbwt's video, as you say. The Blower Motor Speed Control Removal and Installation workshop manual section is included only to familiarize you with that system-related component, which is adjacent to the Blower Motor. Good luck!

Ford Edge HVAC Blower Motor Removal And Installation online video by Forum member macbwt. Download links to PDF versions of relevant 2016 Edge Workshop Manual sections to supplement online video... Glove Compartment Door Removal - 2016 Edge Workshop Manual.pdf Climate Control System Blower Motor Removal and Installation - 2016 Edge Workshop Manual.pdf Climate Control System Blower Motor Speed Control Removal and Installation - 2016 Edge Workshop Manual.pdf Good luck!

Good point, Jason! Jeff, if the donor VIN is available, I can look-up the As Built programming for that ACM, also. Good luck!

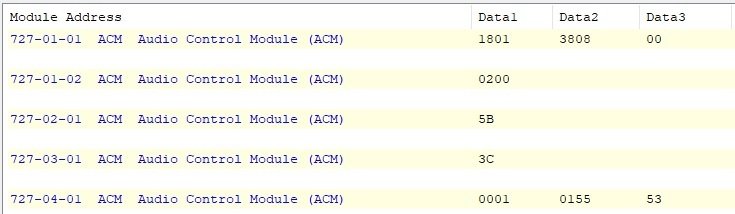

A used ACM will contain the As Built data from the donor vehicle, so once the used ACM is installed in your Edge, the used ACM will need to be reprogrammed. Below is an image of your Edge's ACM As Built values, extracted from its online .ab file, and also PDF download links to relevant sections from the 2017 Edge Workshop Manual. Good luck! Information and Entertainment System - Component Location - Touchscreen - 2017 Edge Workshop Manual.pdf Information and Entertainment System - Overview - Touchscreen - 2017 Edge Workshop Manual.pdf Information and Entertainment System - System Operation and Component Description - Touchscreen - 2017 Edge Workshop Manual.pdf Audio Front Control Module (ACM) Removal and Installation - Touchscreen - 2017 Edge Workshop Manual.pdf Information and Entertainment System - ACM DTC Chart - Touchscreen - 2017 Edge Workshop Manual.pdf

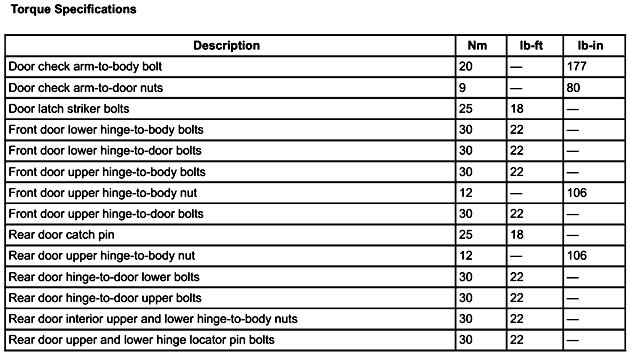

From the 2009 Edge-MKX Workshop Manual, door-specific torque specs and a download link to PDF of all body closure torque specifications... Body Closure Torque Specifications - 2009 Edge-MKX Workshop Manual.pdf Good luck!

If you do not have immediate access to a laptop with a temp-licensed copy of Forscan and an ELM327/OBD II adapter, then Omar302's comment here may provide you an interim solution. Good luck!

Not sure what link you are referring to, though I did make an edit, so perhaps you were accessing the post while my edit was in progress. The removal descriptions and illustrations should now be fully visible in my prior post. If you click on either illustration, you should be able to save it locally and/or print it separately for reference. Good luck!

Below are download links to PDF versions of relevant sections of the 2008 Edge Workshop Manual. If your diagnostic actions create a need for specific connector diagrams and/or location illustrations, let me know and I will gladly supply them. Good luck! Interior Lighting Description and Operation - 2008 Edge Workshop Manual.pdf Interior Lighting Diagnosis and Testing - 2008 Edge Workshop Manual.pdf

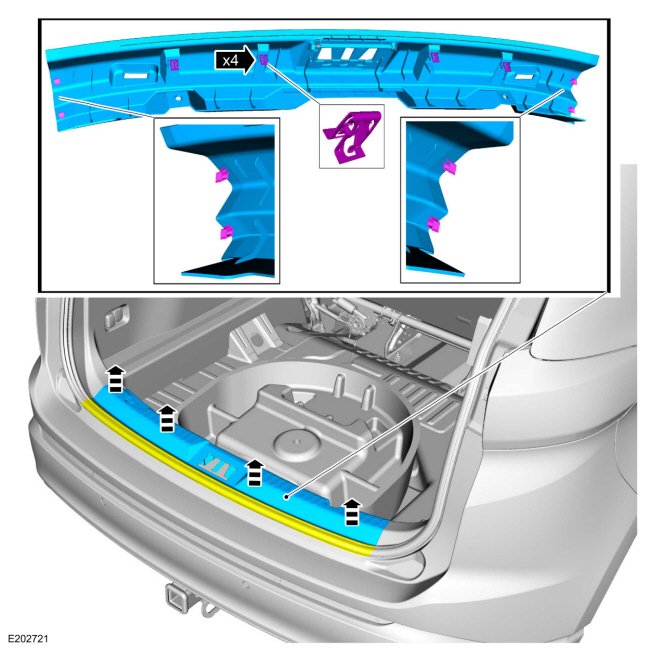

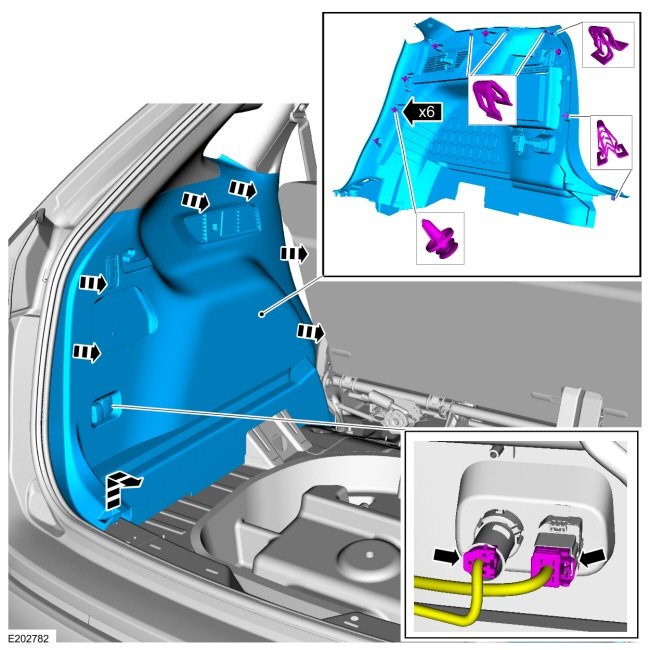

Removal description and side panel illustration from the 2016 Edge Workshop Manual... Good luck! Position aside the liftgate weatherstrip, release the clips and remove the liftgate scuffplate trim panel. Release the clips, disconnect the electrical connectors and remove the loadspace trim panel.

Below is a download link to a PDF of the Floor Console Removal and installation section from the 2021 Edge Workshop Manual. Proceeding through Step 8, Removal of the Media Bin, appears to get you there. Good luck! Floor Console Removal and Installation - 2021 Edge Workshop Manual.pdf

Below are links to PDF versions of the SASM DTC Index, which refers to various Pinpoint Tests relating to specific DTCs, as well as Pinpoint Test E relating to Lost Communications With SASM concern. SASM DTC Index - 2016 Edge Workshop Manual.pdf Pinpoint Test E - Lost Communication With SASM Concern - 2016 Edge Workshop Manual.pdf I expect your review of the DTC Index and/or Pinpoint Test E may develop a need for additional Pinpoint Test(s) and/or Workshop Manual sections, depending upon the DTC(s) you are seeking to remedy. Please let me know what additional references you require and I will gladly provide them. Good luck!

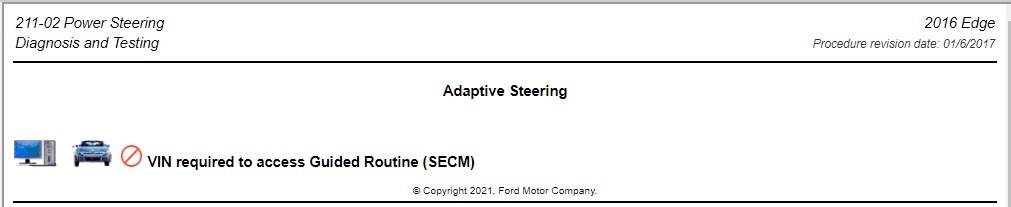

Omar: The Workshop Manual requires a VIN to compose the Adaptive Steering diagnostic & testing procedures. If you are comfortable providing me your Edge's VIN via the Forum's private messaging service, then I'll be able to provide you that information. Below are links to PDFs of other relevant 2016 Edge Workshop Manual sections... Adaptive Steering - Overview - 2016 Edge Workshop Manual.pdf Adaptive Steering - System Operation and Component Description - 2016 Edge Workshop Manual.pdf Adaptive Steering Wiring Diagram - 2016 Edge Workshop Manual.pdf Power Steering - System Operation and Component Description - 2016 Edge Workshop Manual.pdf Module Configuration - System Operation and Component Description - 2016 Edge Workshop Manual.pdf Good luck!

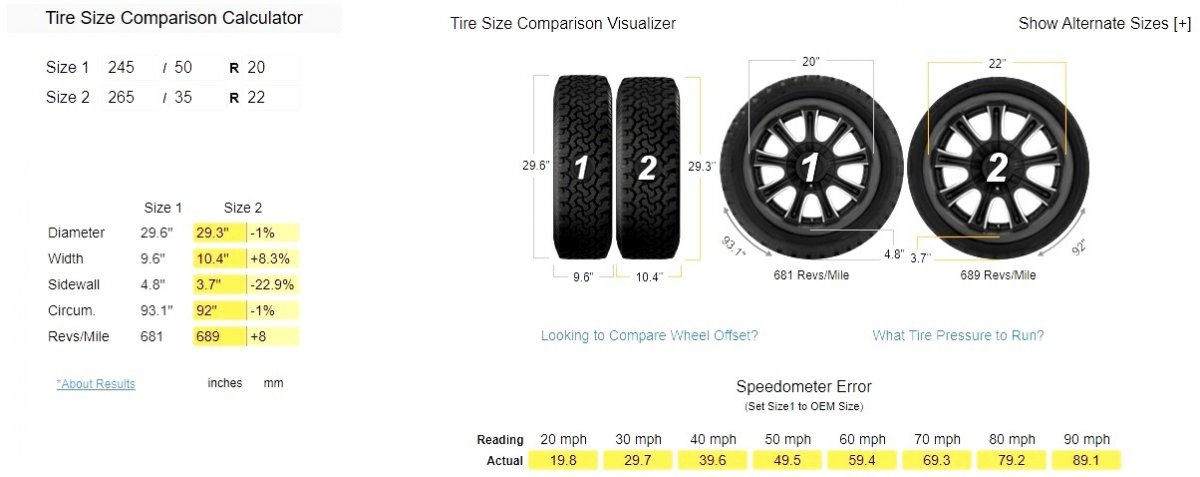

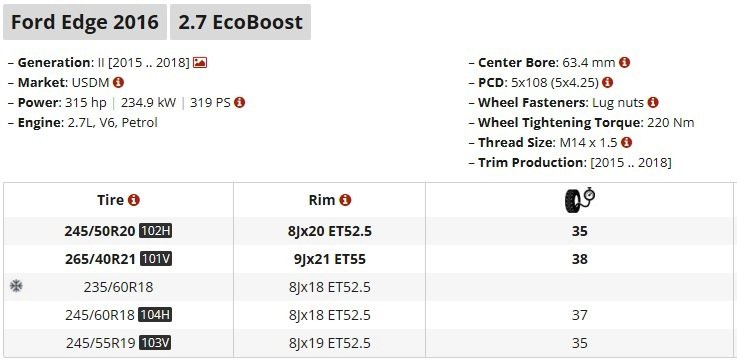

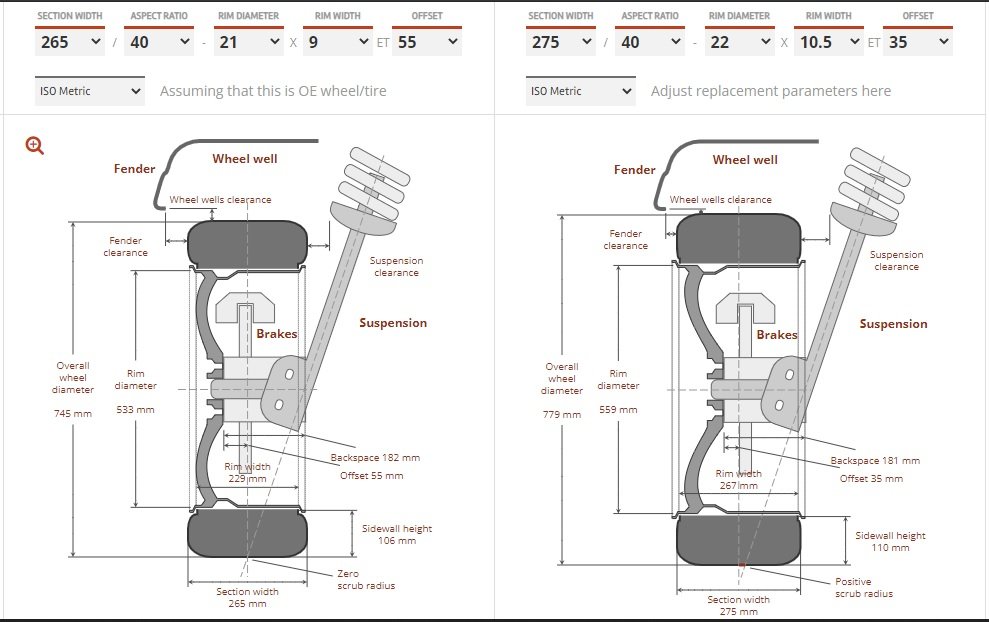

While you're waiting for other Edge Sport owners' voices of experience, some data is available from online resources. Since you didn't mention if your 2016 Sport is equipped with the standard 20s or the optional 21s, comparative information for both OEM sizes versus your desired aftermarket rim & tire size are included below:. Wheel-Size's website provides 2016 Edge Sport OEM rim & tire data... ...and installed dimensional comparisons of standard rims & optional rims to your desired aftermarket rim & tire size... ...with the standard rim & optional rim comparison web pages allowing the inputting of current-state fender, wheelwell, and suspension clearance dimensions, in order to obtain an estimate of clearance changes that may occur with the installed aftermarket rim & tire combination. TireSize's website provides dimensional comparisons between the OEM and aftermarket tire sizes, including any resulting speedometer error that should be correctable using Forscan for Windows and an OBDII plug-in adapter. For what it's worth, 265/35/22 tire dimensions are similar to the standard 20-inch OEM tire and identical to the optional 21-inch OEM tire... Good luck!

Guidance from the 2013 Edge/MKX Workshop provided via underlined PDF download links. Good luck! Autolamps Diagnosis and Testing - 2013 Edge-MKX Workshop Manual.pdf Autolamp Wiring Diagram 1 - 2013 Edge-MKX Workshop Manual.pdf Autolamp Wiring Diagram 2 - 2013 Edge-MKX Workshop Manual.pdf Autolamp Wiring Diagram 3 - 2013 Edge-MKX Workshop Manual.pdf Autolamp Wiring Diagram 4 - 2013 Edge-MKX Workshop Manual.pdf

Before you begin tracing circuit amperage draws by pulling fuses -- if you have not already -- have the battery tested at any nationwide-brand auto parts store to ensure the battery does not have a failing-or-failed cell that could be the root cause of the battery voltage drop you've observed. If the battery has been verified as good, the Workshop Manual sections attached below will provide you guidance on (Question 1) the interconnected circuit protection of the under-hood Battery Junction Box (BJB) and the cabin-mounted Smart Junction Box (SJB), as well as (Question 2) the Battery Drain Diagnosis and Testing Procedures and other documents provided via underlined PDF download links. Good luck! Battery Junction Box Illustration - 2010 Edge-MKX Workshop Manual.pdf Battery Junction Box Circuit Legend - 2010 Edge-MKX Workshop Manual.pdf Smart Junction Box Illustration - 2010 Edge-MKX Workshop Manual.pdf Smart Junction Box Circuit Legend - 2010 Edge-MKX Workshop Manual.pdf Battery Drain Diagnosis and Testing Procedure - 2010 Edge-MKX Workshop Manual.pdf Module Controlled Functions Description and Operation - 2010 Edge-MKX Workshop Manual.pdf Smart Junction Block Diagnosis and Testing - 2010 Edge-MKX Workshop Manual.pdf

Guidance from the 2018 Edge Workshop Manual... Exterior Front Door Handle Removal and Installation - 2018 Edge Workshop Manual.pdf (document download link) Front Door Interior Trim Panel Removal and Installation - 2018 Edge Workshop Manual.pdf (document download link) Good luck!

If it's evident that your Edge's brake booster diaphragm has torn, then next question is, whether the repair cost can be covered under the Program 13N02, which requires the vehicle build date to fall between May 3, 2010 and March 28, 2013. Contact your local Ford dealer and provide their Service department your Edge's VIN, which they can input into OASIS to determine your Edge's Program 13N02 eligibility and/or if the covered repair has already been done. Good luck!

From the 2011 Edge/MKX Workshop Manual... Remote Keyless Entry (RKE) Lock/Unlock Control — Lock The RKE feature requests that all of the doors be locked when the lock button is pressed. On any press of the lock button with all doors closed, the doors lock and the turn signals flash one time. If any door or liftgate is ajar, no flash occurs. As soon as the last door or liftgate is closed, the turn signals flash. If 2 presses of the lock button are received within 3 seconds, the horn chirps once and the turn signals flash twice to indicate that all of the doors and liftgate are closed and locked. If any door is ajar when the second lock request is received within 3 seconds of the first, the RKE transmitter feature chirps the horn twice without flashing the turn signals to indicate it locked all of the doors but one or more doors or the liftgate is ajar. When the ignition is in the RUN or START position, the turn signal flashes and horn chirp confirmations do not occur. Good luck!

Download links for relevant 2007 Edge/MKX Workshop Manual sections... Front Shock Absorber and Spring Removal and Installation - 2007 Edge Workshop Manual.pdf Front Shock Absorber and Spring Disassembly - 2007 Edge Workshop Manual.pdf Front Shock Absorber and Spring Assembly - 2007 Edge Workshop Manual.pdf Link to MACTFORDEDGE video describing Motorcraft steering knuckle front suspension component. Good luck!

114k mostly highway miles on our 2012, and it could've gone further. After that always-garaged MKX sat outside unused for a month during winter, the rotors rusted and when finally driven, polluted the pads, significantly degrading braking. The 2012's new owner is no doubt enjoying the full brake job I paid for to make the vehicle saleable. Good luck!

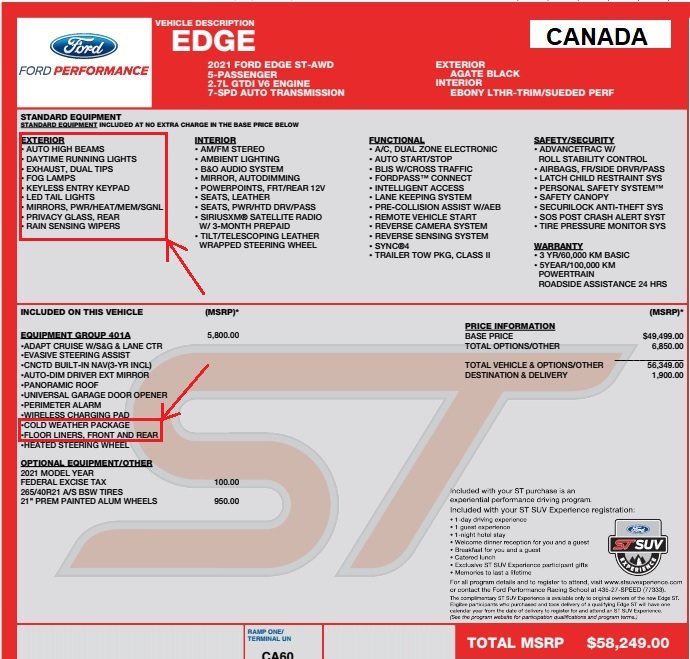

Differences do exist between USA & Canadian 2021 Edge ST adaptive headlight Window Sticker listings, based upon these examples of vehicles currently in dealer stock. Surprisingly, many standard features described on the USA Window Sticker are not included on the Canada Window Sticker, and the Canada 401A package includes the Cold Weather Package and Floor Liners that are not part of the USA 401A. Looking to OASIS's Detailed Specification Report, essentially a build-sheet of vehicle features, both Edge STs are JOB 1 Program Control units and the USA & Canada headlight descriptions are identical: Headlamps - Level 5, and, Auto High Lamp Headlamp. Looking to the Historic Vehicle Bill of Material (HVBOM) Report, which lists component part numbers installed on a VIN-designated vehicle, the bi-LED headlamp assembly is identical in the USA & Canada Edge STs. The 2021 Edge Workshop Manual offers the same advice which I previously shared, with emphasis added... The high series headlamps are equipped with adaptive front lighting. Depending on the inputs received (steering wheel angle and vehicle speed for example), the adaptive front lighting module can command the angle at which the headlamps are aimed (left or right) to improve nighttime visibility around curves. Adaptive front lighting is only activated when the headlamp switch is in the AUTOLAMPS position. Based upon these records, it seems likely your Canada-market Edge ST has adaptive headlamps, though it makes no sense whatsoever that Ford would not disclose it on the Window Sticker, unless Canada regulates feature-listing. The next time you drive at night, put the headlamp switch in the Autolamps position and look for lateral movements in the light pattern as you turn left or right. Good luck!
