vmaxbaby Posted July 13, 2019 Report Share Posted July 13, 2019 Do you all know why Ford didn't extend the exhaust tips further through the bumper. It is about 5 inches short of being flush with the bumper, this is from the factory and the Borla Cat Back is in the exact same location as factory. Just thinking they could have extended the pipe a few more inches to make it flush or at least closer to the outlet of the exhaust cut out? Quote Link to comment Share on other sites More sharing options...
Perblue Posted July 14, 2019 Report Share Posted July 14, 2019 I think they did it for ease of assembly and cost cutting. No aligning of tips needed. Mount the fake tips to the bump, line up exit pipes some what and done. I also think the exit pipes sticking through would look silly. 1 Quote Link to comment Share on other sites More sharing options...
jamie1073 Posted July 14, 2019 Report Share Posted July 14, 2019 Go look at an Explorer ST or even the Platinum, the exhaust tips are fake. Put your finger in one and they are blocked. The actual exhaust exits out the bottom under the tips to keep soot down and off the tips and bumper cover. 1 Quote Link to comment Share on other sites More sharing options...
omar302 Posted July 14, 2019 Report Share Posted July 14, 2019 (edited) 3 hours ago, jamie1073 said: Go look at an Explorer ST or even the Platinum, the exhaust tips are fake. Put your finger in one and they are blocked. The actual exhaust exits out the bottom under the tips to keep soot down and off the tips and bumper cover. This is what they did with the previous generations of the Edge & Explorer as part of a TSB to fix exhaust odor that was entering then cabin at high acceleration cases. Edit: I just remembered I posted pictures about it when it was done to my old MKX. Edited July 14, 2019 by omar302 1 Quote Link to comment Share on other sites More sharing options...
IWRBB Posted July 15, 2019 Report Share Posted July 15, 2019 22 hours ago, jamie1073 said: Go look at an Explorer ST or even the Platinum, the exhaust tips are fake. Put your finger in one and they are blocked. The actual exhaust exits out the bottom under the tips to keep soot down and off the tips and bumper cover. I'll look tonight, but I don't think that is the case with the Edge ST. It looks like the pipes just end in the "tips" that are part of the bumper. I think the further back the pipe is the better, since you can't see the end of the pipe that way. Quote Link to comment Share on other sites More sharing options...
jamie1073 Posted July 15, 2019 Report Share Posted July 15, 2019 4 hours ago, IWRBB said: I'll look tonight, but I don't think that is the case with the Edge ST. It looks like the pipes just end in the "tips" that are part of the bumper. I think the further back the pipe is the better, since you can't see the end of the pipe that way. Yes the Edge ones end about an inch into the fascia, I have no idea of why but I just was sort of assuming it had something to do with soot and keeping it off the rear of the vehicle. Maybe air flow through that setup keeps it off the back end. Quote Link to comment Share on other sites More sharing options...
IWRBB Posted July 15, 2019 Report Share Posted July 15, 2019 There's not really any soot with a gas powered car with cats on it. Quote Link to comment Share on other sites More sharing options...
Xtra Posted July 15, 2019 Report Share Posted July 15, 2019 1 hour ago, IWRBB said: There's not really any soot with a gas powered car with cats on it. It is normal on DI engines like the EB for a dry black soot to collect on the exhaust tip. Quote Link to comment Share on other sites More sharing options...
vmaxbaby Posted July 15, 2019 Author Report Share Posted July 15, 2019 Well as most of you know I put a borla cat back system on and it ends in the exact same place so I am going to but an extension on that will the exhaust tip end about 1 inch from the fake cut outs just to see if it changes the exhaust sound any. I know I am bored LOL Quote Link to comment Share on other sites More sharing options...
eddie368 Posted July 15, 2019 Report Share Posted July 15, 2019 1 hour ago, vmaxbaby said: Well as most of you know I put a borla cat back system on and it ends in the exact same place so I am going to but an extension on that will the exhaust tip end about 1 inch from the fake cut outs just to see if it changes the exhaust sound any. I know I am bored LOL I will be very interested to see if that makes a difference. I also have the borla exhaust on my ST and after 1600 miles it has gotten a bit louder. I wouldn't call it to loud but if that makes it a little bit quieter I will do the same. Quote Link to comment Share on other sites More sharing options...

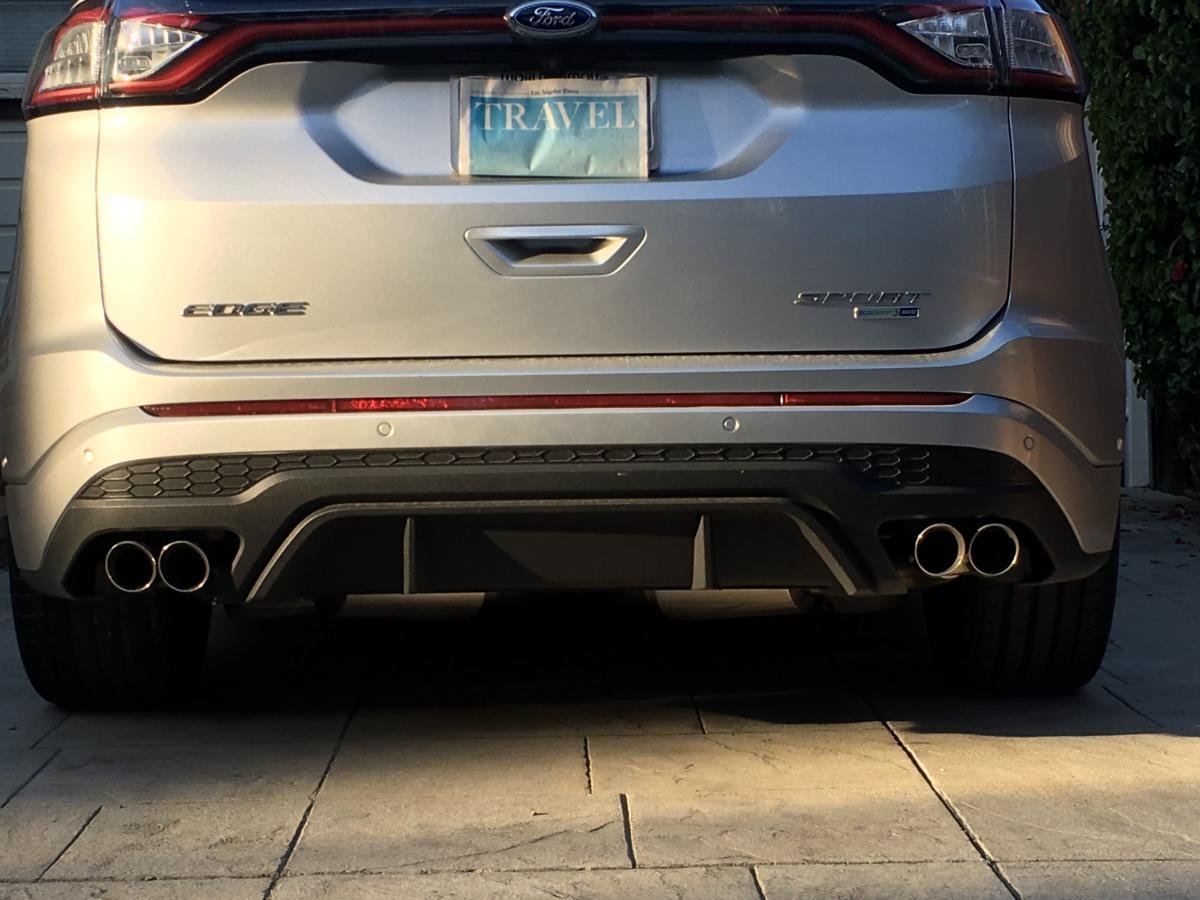

Xtra Posted July 15, 2019 Report Share Posted July 15, 2019 (edited) Some of us have added quad tips to extend the exhaust pipes. The tips can be installed on stock or aftermarket exhaust systems. As far as I know no one has done this to an ST yet. These are 3inch tips in the photo. I swapped them out for 3 1/2 inch tips and they look much better. 3 1/2 inch quad tips are what I recommend if you decide to do this. There is a thread on this subject here someplace for more info Edited July 15, 2019 by Xtra 2 Quote Link to comment Share on other sites More sharing options...
Rimcrim Posted July 16, 2019 Report Share Posted July 16, 2019 24 minutes ago, Xtra said: Some of us have added quad tips to extend the exhaust pipes. The tips can be installed on stock or aftermarket exhaust systems. As far as I know no one has done this to an ST yet. These are 3inch tips in the photo. I swapped them out for 3 1/2 inch tips and they look much better. 3 1/2 inch quad tips are what I recommend if you decide to do this. There is a thread on this subject here someplace for more info Yeah I was going to do this on my Edge Sport before it got rear ended and written off (while parked), but I don't think this will work on my ST quite the same since they are now vertical cutouts. Quote Link to comment Share on other sites More sharing options...
Xtra Posted July 16, 2019 Report Share Posted July 16, 2019 (edited) 7 minutes ago, Rimcrim said: Yeah I was going to do this on my Edge Sport before it got rear ended and written off (while parked), but I don't think this will work on my ST quite the same since they are now vertical cutouts. To install the tips on a Sport the chrome bezels have to be removed. Not sure on the ST if removal of the bezels will help or not Edited July 16, 2019 by Xtra Quote Link to comment Share on other sites More sharing options...
Perblue Posted July 16, 2019 Report Share Posted July 16, 2019 Ya I'm not sure what tips would look best on an St. It definitely is one of its design down falls. Maybe a quad oval like some IS-F setups or a group of 4 on each side with the bottom pair shifted slightly over from the top pair of tips, granted this would give 4 smaller tips but maybe it would look ok. It's the only thing I can imagine maybe looking right but I suck at Photoshop to even try and mock any of it up. 1 Quote Link to comment Share on other sites More sharing options...
onyxbfly Posted July 16, 2019 Report Share Posted July 16, 2019 10 hours ago, Perblue said: Ya I'm not sure what tips would look best on an St. It definitely is one of its design down falls. Maybe a quad oval like some IS-F setups or a group of 4 on each side with the bottom pair shifted slightly over from the top pair of tips, granted this would give 4 smaller tips but maybe it would look ok. It's the only thing I can imagine maybe looking right but I suck at Photoshop to even try and mock any of it up. Great catch! There aren't to many cars out there with vertical exhaust tips, but the IS-F have aways looked good. Once the bezels are removed, I think that style would look hot on the ST! Quote Link to comment Share on other sites More sharing options...
Xtra Posted July 17, 2019 Report Share Posted July 17, 2019 The ST looks good from the back. 2019-Ford-Edge-ST-15.jpg.jp2 2019-Ford-Edge-ST-rear-1.jpg.jp2 Quote Link to comment Share on other sites More sharing options...
